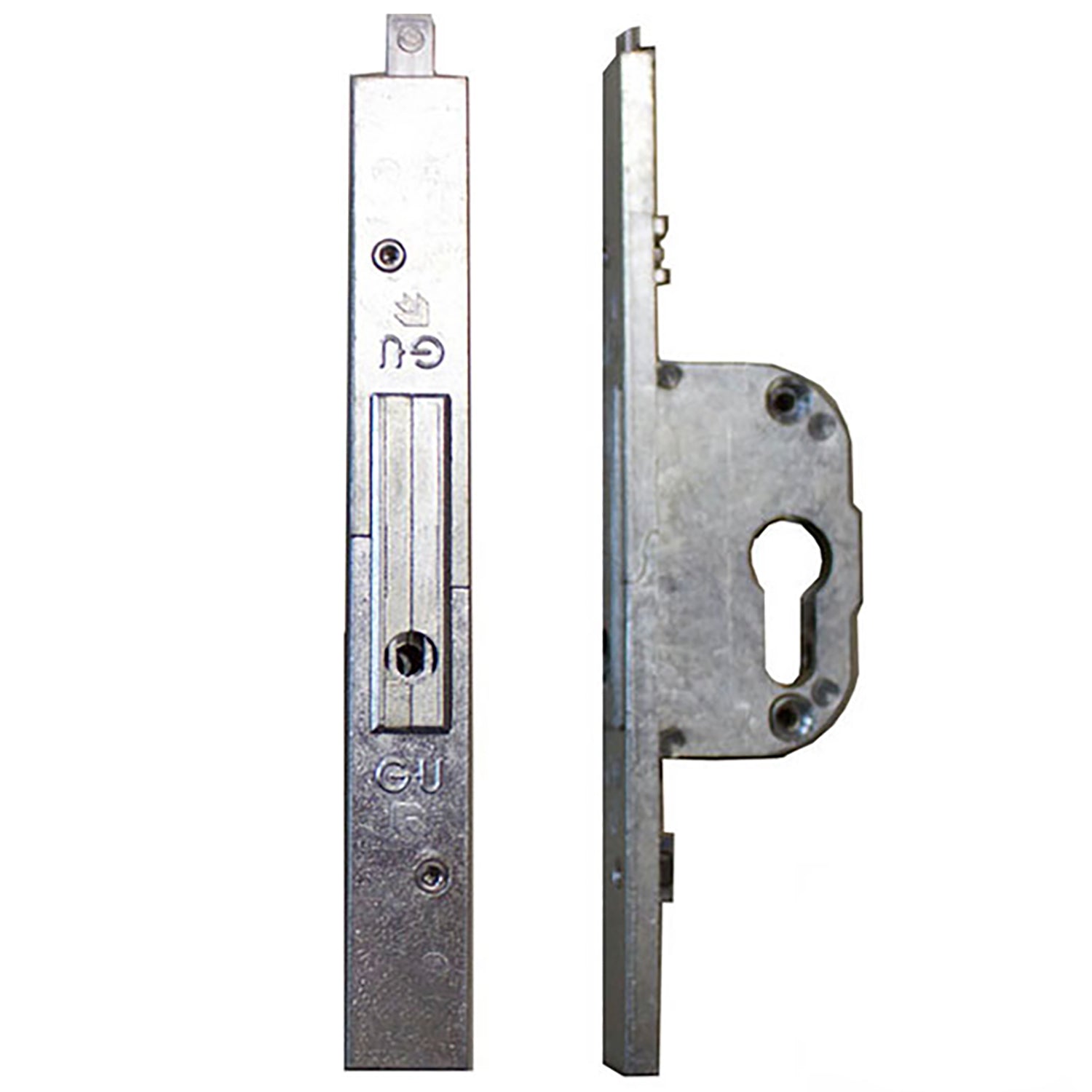

Terrace Door Mortise Lock with Profile cylinder Bore, Backset 1-9/16" (40mm)

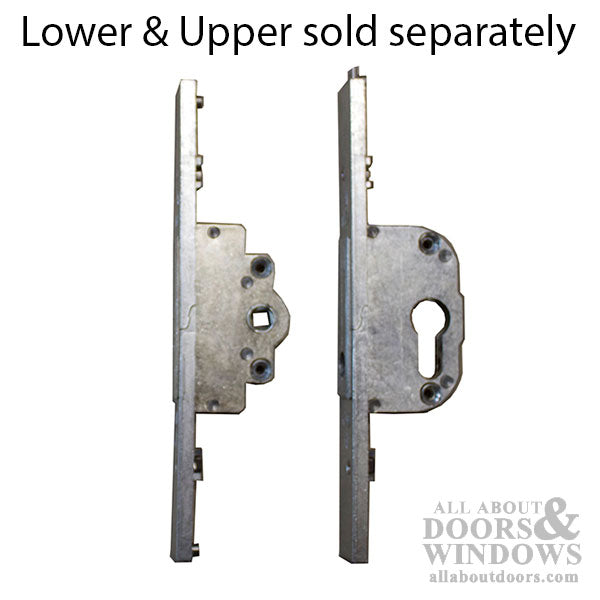

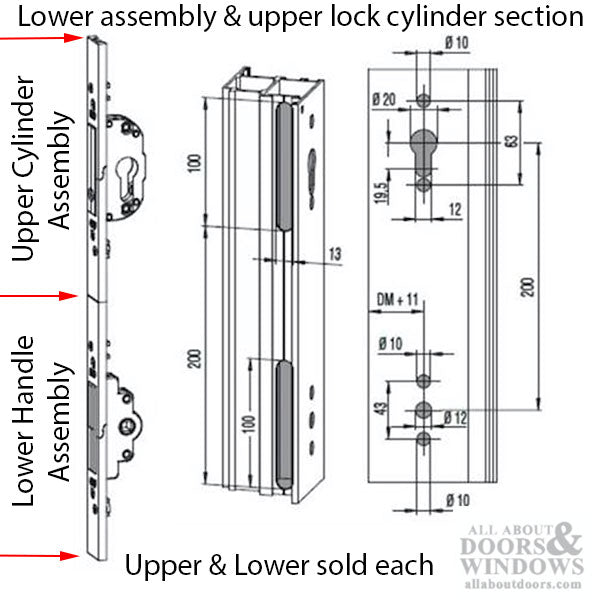

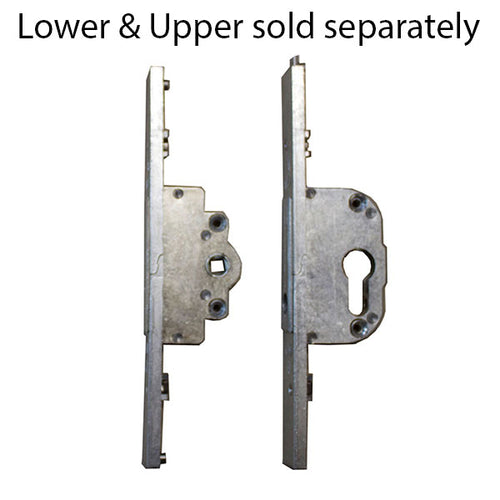

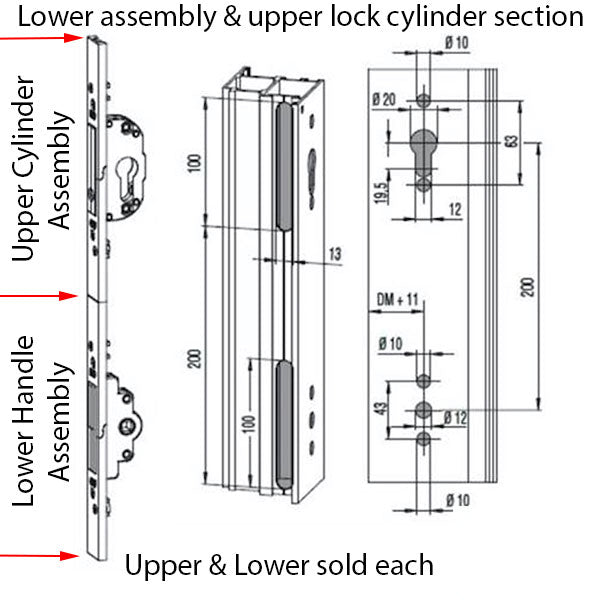

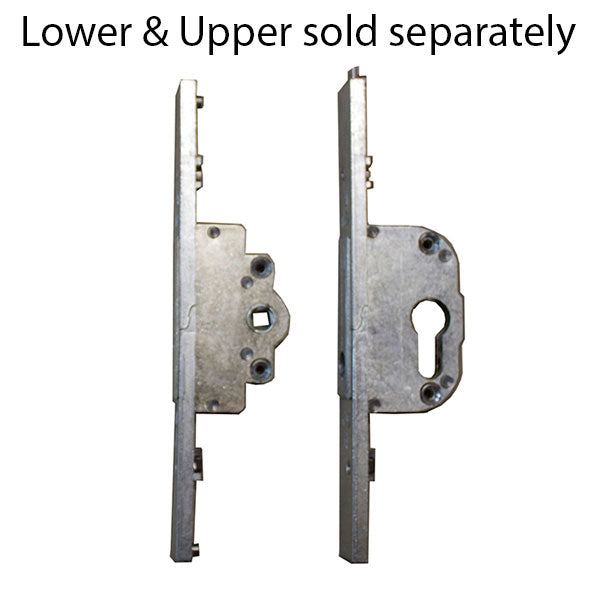

Part Number: 6-25918-40-0-FG Price: $77.20G-U / Ferco Terrace Door Lock with Euro Profile cylinder Bore. This is the upper section of a two part assembly. Upper Cylinder is connected to lower Handle / Lever assembly # 6-25918-35-0-1.
Not always used with G-U / Ferco levers or cylinders.
Hardware,used on 1-3/4 to 2-5/8 thick Terrace Doors and bi-fold and folding aluminum doors.
Lock Type: Euro Profile Cylinder
G-U Part Number: 6-25918-40-0-1
Faceplate Width: 15/16 inch (24mm)
Faceplate Height: 7-7/8 inch ( 200mm)

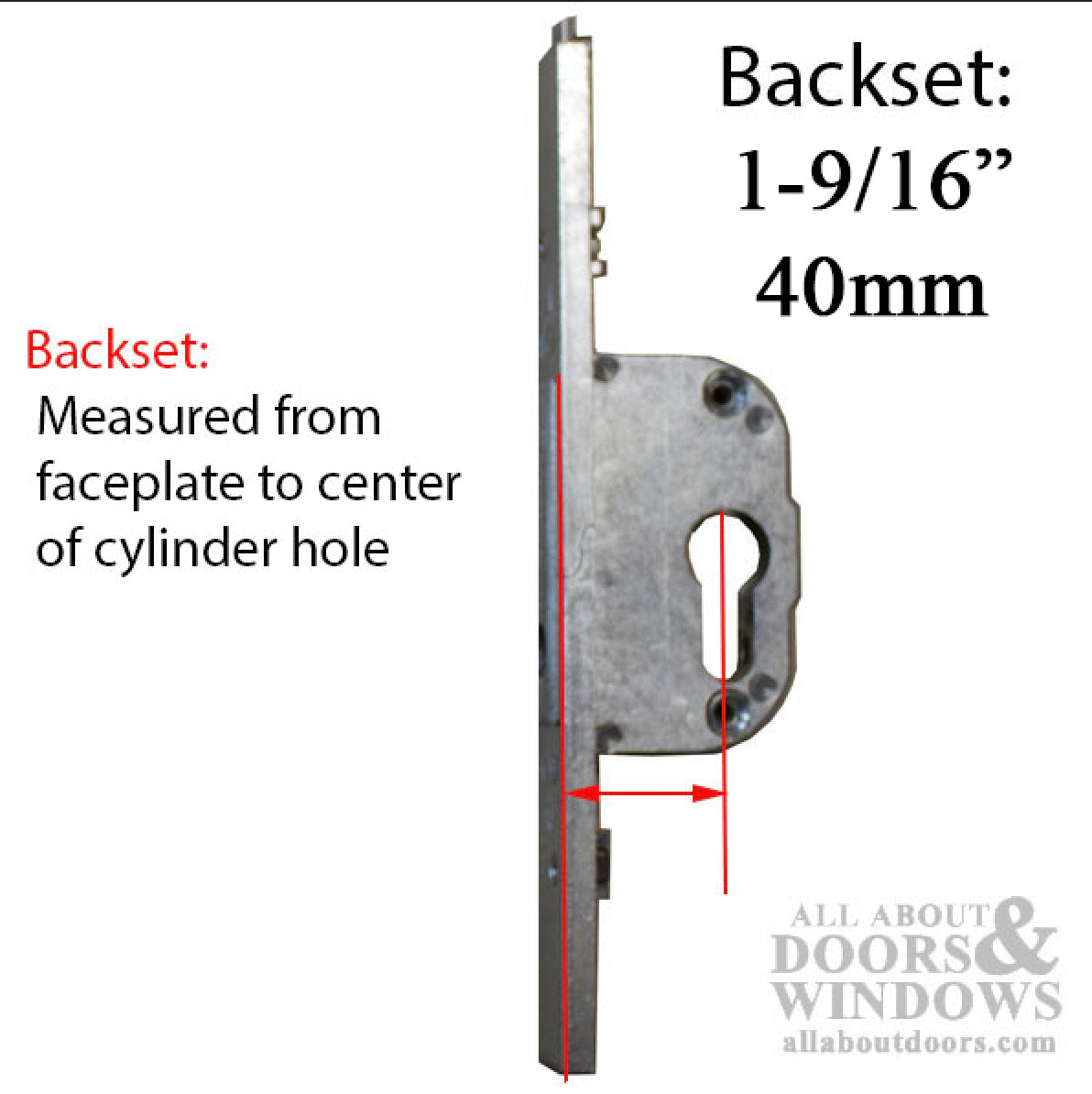

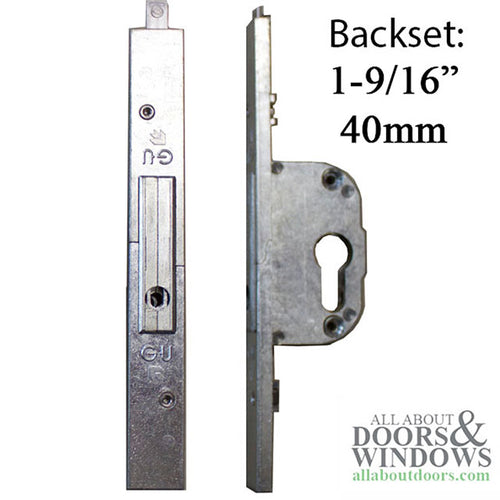

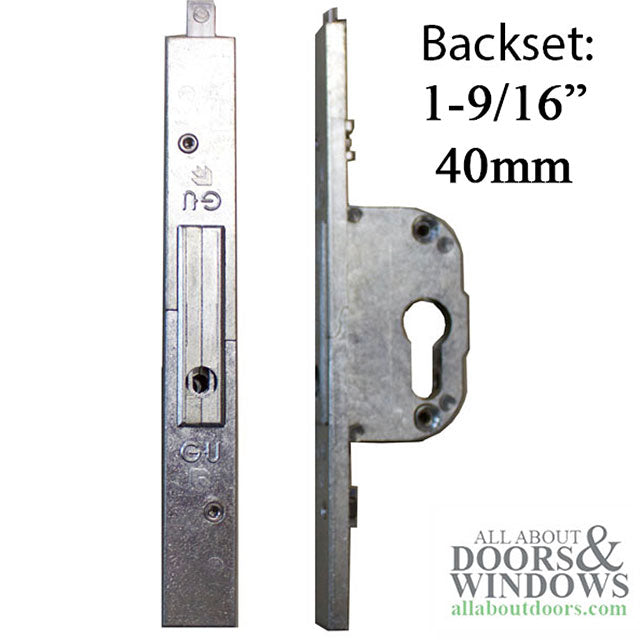

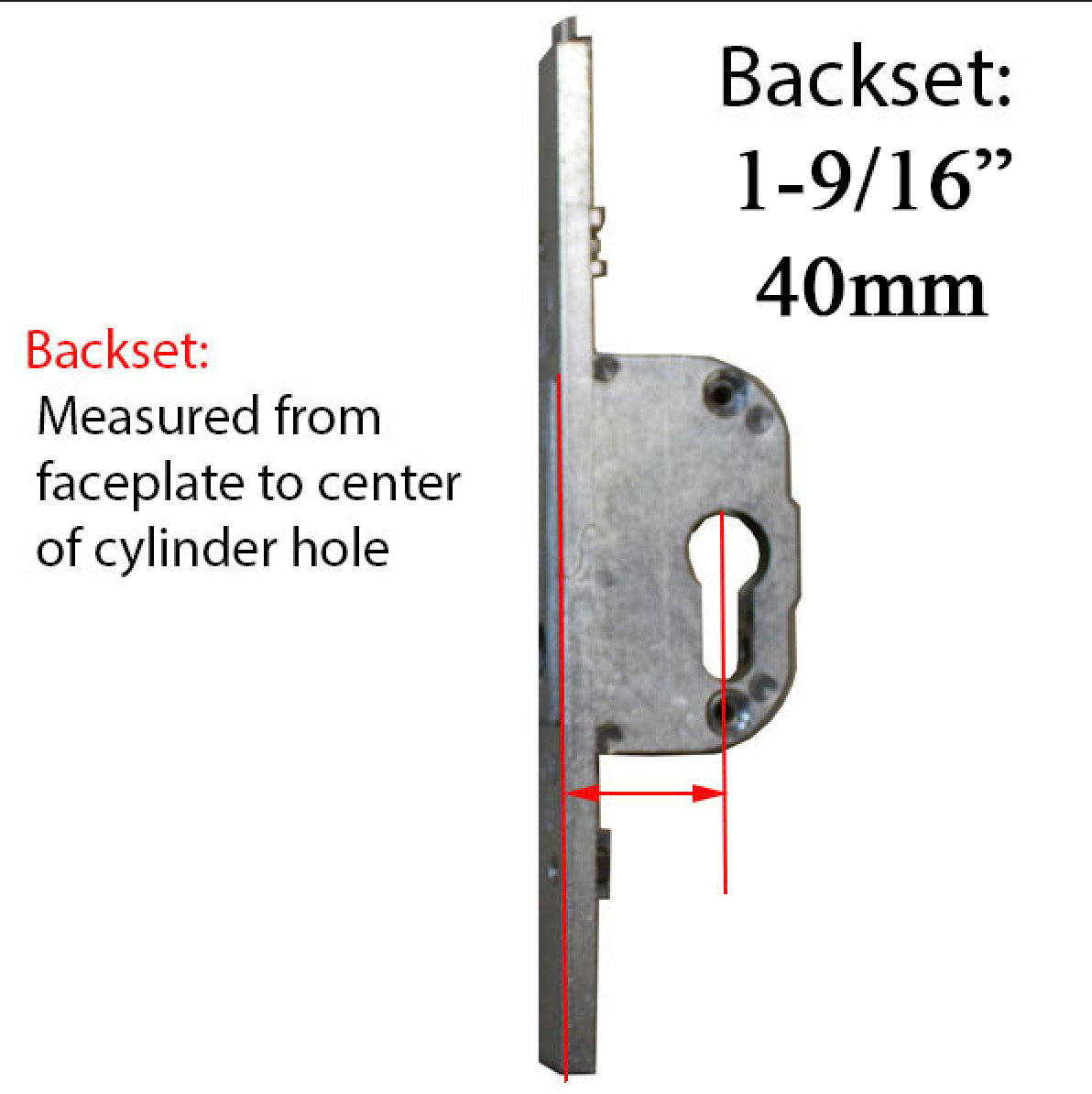

Backset: 1-9/16 inch (40mm)
Available Backsets: 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Additional Information:
In order to identify the lower mortise lock mechanism you will need the backset and if the handle has 90 degree rotation (down only) or has 180 degree rotation (rotates up & down).
Related G-U parts:
6-25916-40-0-1 ALU-JET insertable gear 180° Lever, 1-9/16" (40mm) Backset
6-25918-40-0-1 Lock with Profile cylinder Bore, 1-9/16" (40mm) Backset
Not always used with G-U / Ferco levers or cylinders.
Hardware,used on 1-3/4 to 2-5/8 thick Terrace Doors and bi-fold and folding aluminum doors.
Lock Type: Euro Profile Cylinder
G-U Part Number: 6-25918-40-0-1
Faceplate Width: 15/16 inch (24mm)
Faceplate Height: 7-7/8 inch ( 200mm)
Backset: 1-9/16 inch (40mm)
Available Backsets: 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Additional Information:
In order to identify the lower mortise lock mechanism you will need the backset and if the handle has 90 degree rotation (down only) or has 180 degree rotation (rotates up & down).
Related G-U parts:
6-25916-40-0-1 ALU-JET insertable gear 180° Lever, 1-9/16" (40mm) Backset
6-25918-40-0-1 Lock with Profile cylinder Bore, 1-9/16" (40mm) Backset
