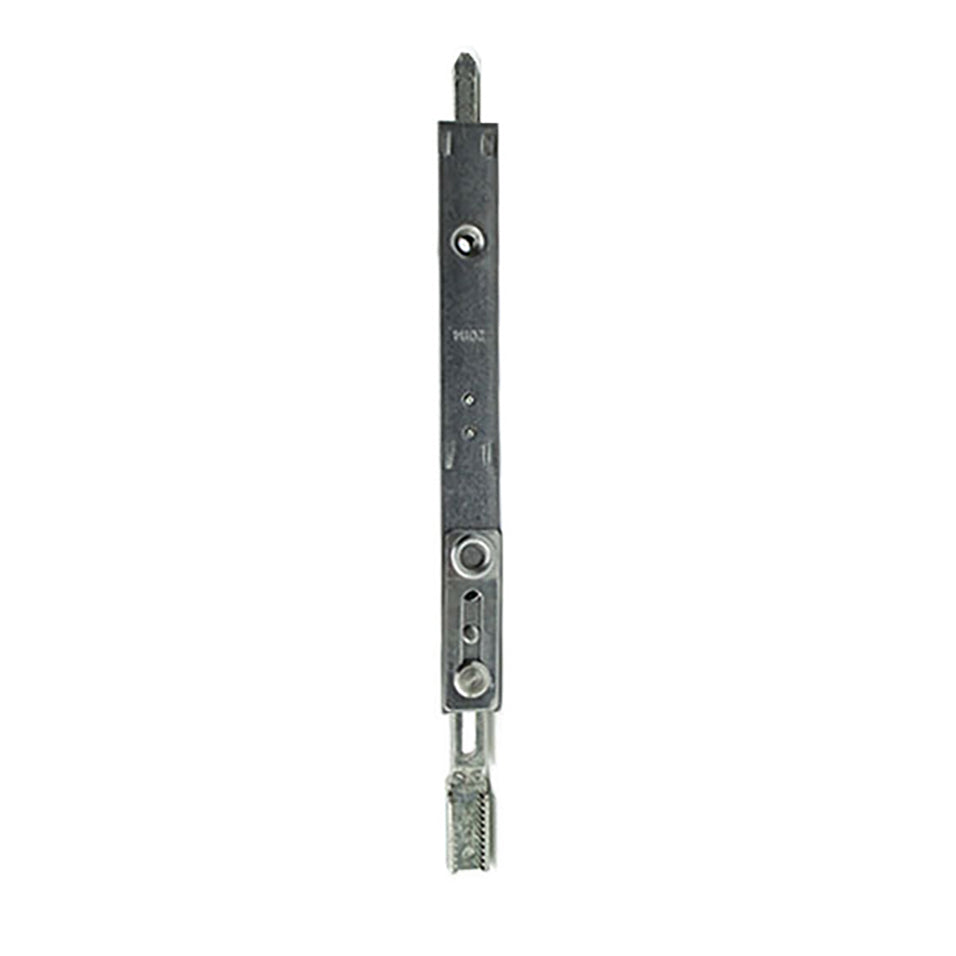

G-U Ferco Secury Europa Reversing Gear, Top Shootbolt - Silver Ferguard
Used with Europa R2: 6-33632 Series- active- key below handle, rollers with shootbolts
Used with Rhino: 6-33400 Series - active- key below handle, hooks with shootbolts
Used with Europa inactive: 6-33638 Series- key below handle

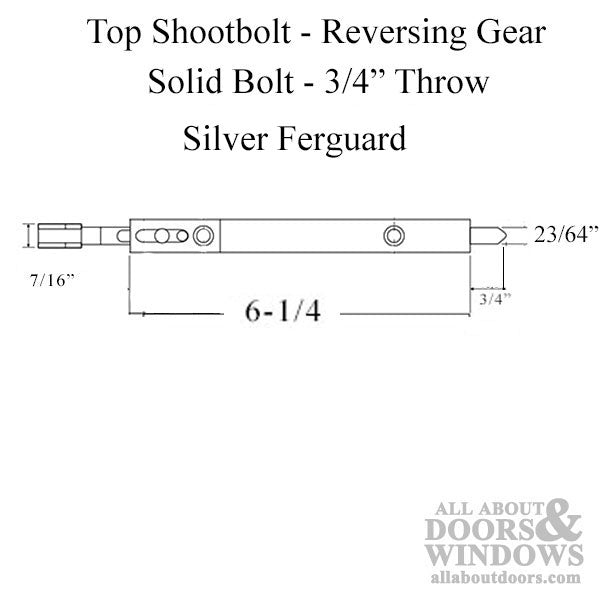

Faceplate Width: 5/8 inch (16mm)

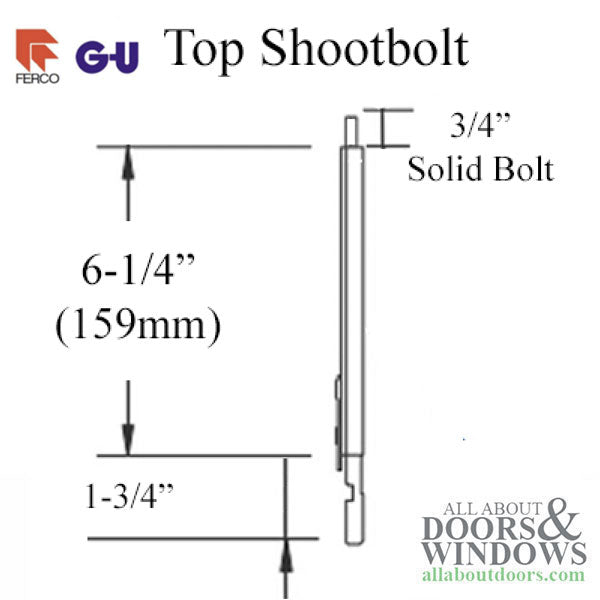

Length: (top shoot bolt) 6-1/4 inch (159mm)
Bolt extends 3/4 inch (18.8 mm)
Bolt Type: Solid
Finish: Silver Ferguard
Markings: 20114, 9-42967, E16744

G-U Related Shoot Bolt Parts:
G-20416-00-01 - Top Shoot bolt, Silver Ferguard, Reversing gear, Solid bolt
G-20416-00-08 - Top Shoot bolt, Stainless Steel, Reversing gear, Solid bolt
9-34442-00-0-0 - Brass Shoot bolt Sleeve, 1/2 inch (12mm) inside diameter

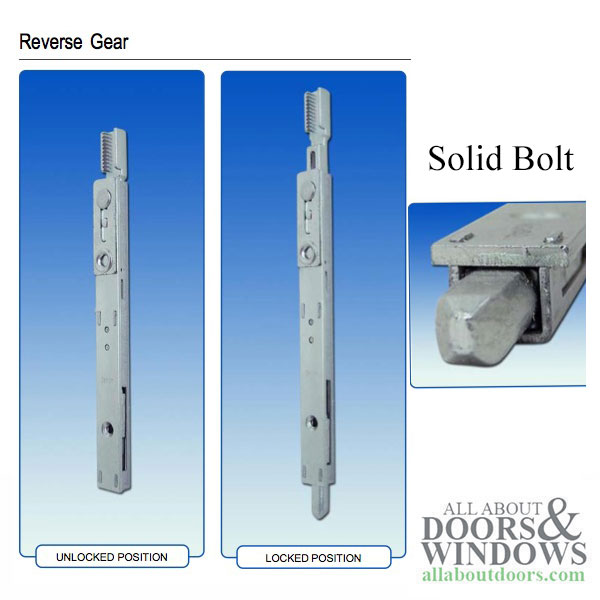

NOTE:
A reversing gear works the opposite of a standard push / pull shootbolt tip.
When the gear pulls the attachment down the bolt extends, when the attachment is pushed up it retracts.
