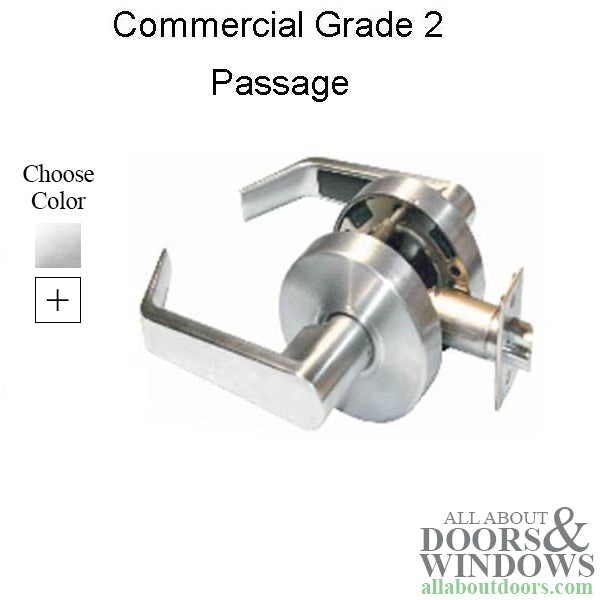

Passage Lever, Closet and Hall doors - Grade 2, Standard Commercial Duty
Certification: UL listed ANSI A156.2 Grade 2
• Door Thickness: 1-3/4" - 2" ( 45mm-50mm)
• Backset: 2-3/4" (70mm)
• Cylinder: None
• Keying: None
• Functions: See below
• Latch: 1/2" projection Stainless Steel Face: 1-1/8” x 2-1/4” (Optional 3 hour UL Rated)

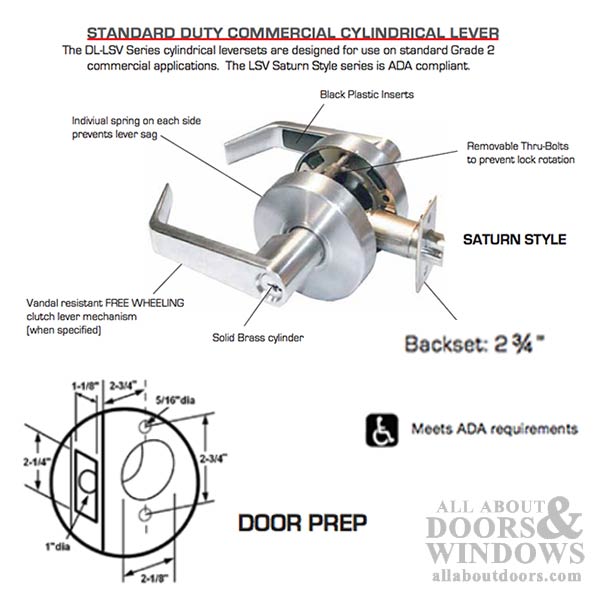

• Bore: 2-1/8” hole retrofits all cylindrical locksets
• Fits 161 Prep doors
• Strike: ANSI 1-1/4” x 4-7/8” strike
• Removable Thru-Bolts
• Non-handed / reversible
• Warranty: Lifetime mechanical. 10 year finish.
• Finishes: US3 Polished Brass, US10B Oil Rubbed Bronze, US26D Brushed Chrome
Note: Some Finishes may be special order, normally 7-14 days
