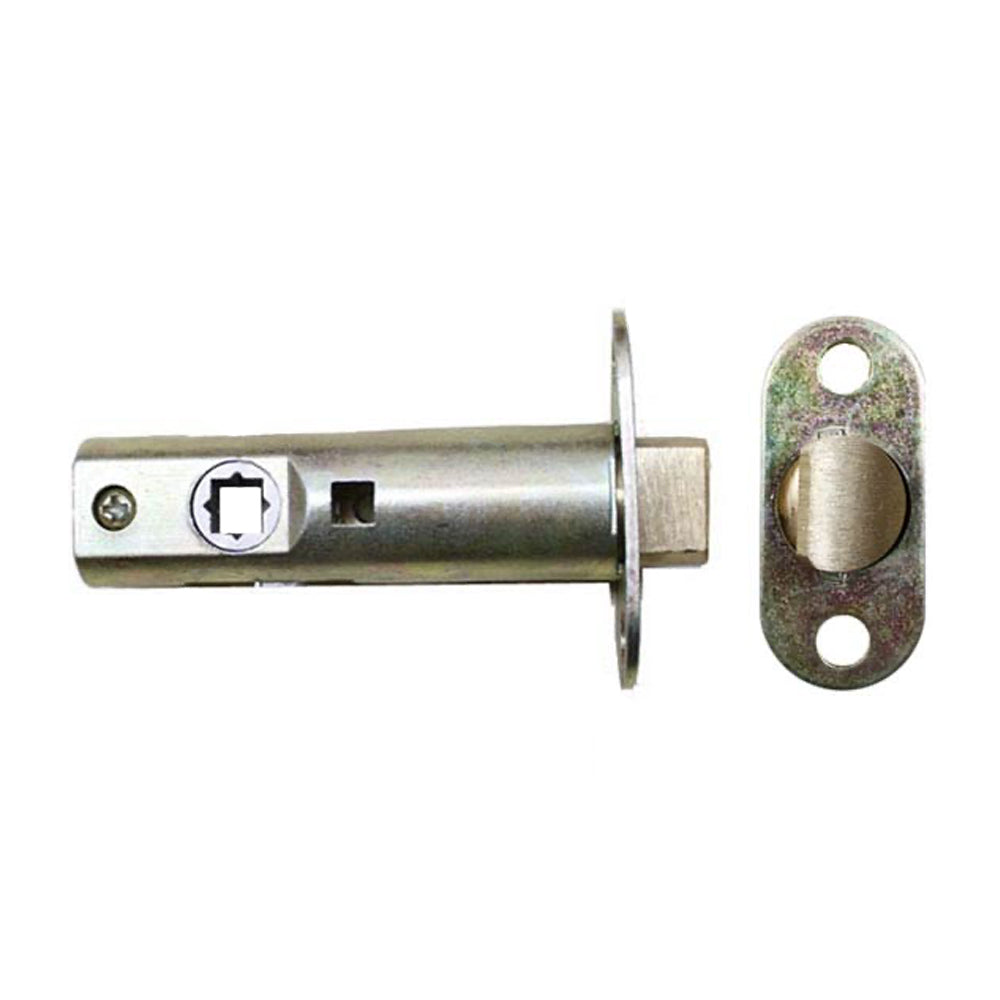

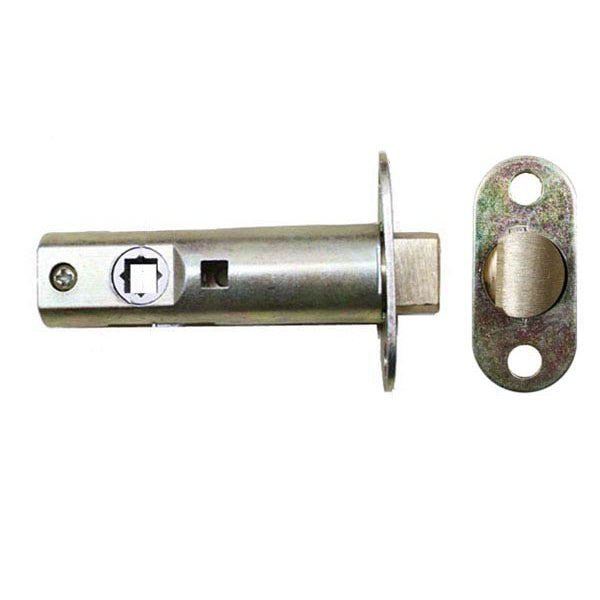

Passage latch 28° rotation 2-3/8 backset

Part Number: 480653501 Price: $16.40
New Style Privacy latch with 28° rotation  to open door.
Replacement spring latch - Non-handed -  2-3/8 inch (60mm)  Backset

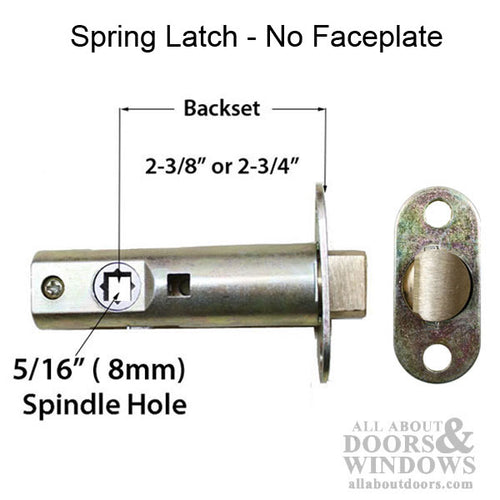

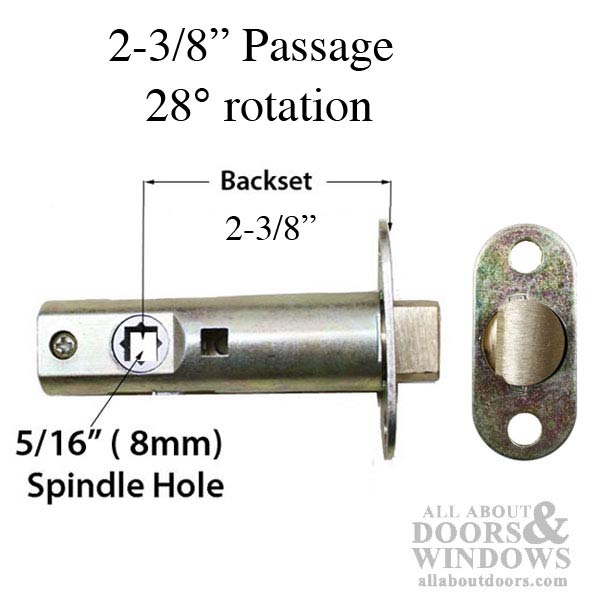

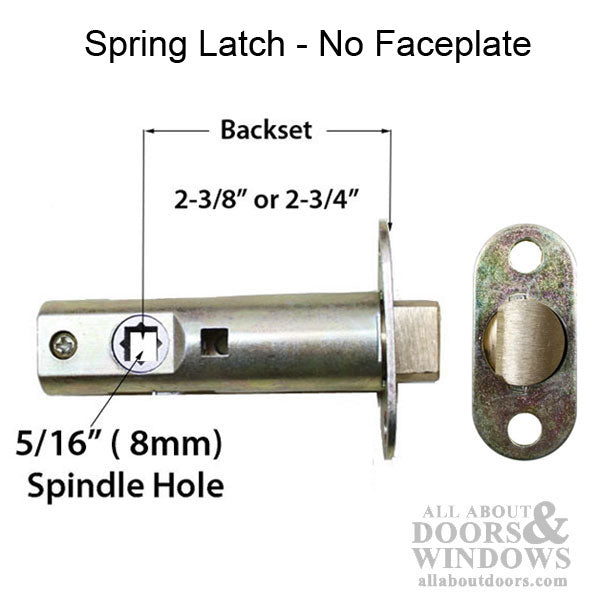

Latch Backset: 2-3/8 (60 mm)
Function: Spring latch with lockout for privacy
Spindle Diameter: 5/16 inch (8 mm) square hub
Door Type: Privacy,  bedroom or bathroom
Faceplate Finish:  Not Include, faceplate is sold separately
works with 1-3/8 or 1-3/4 inch thick doors
Non-Handed, fits left or right hand doors
Easy installation with typical screw driver

Passage have a Round or Square hole - open through

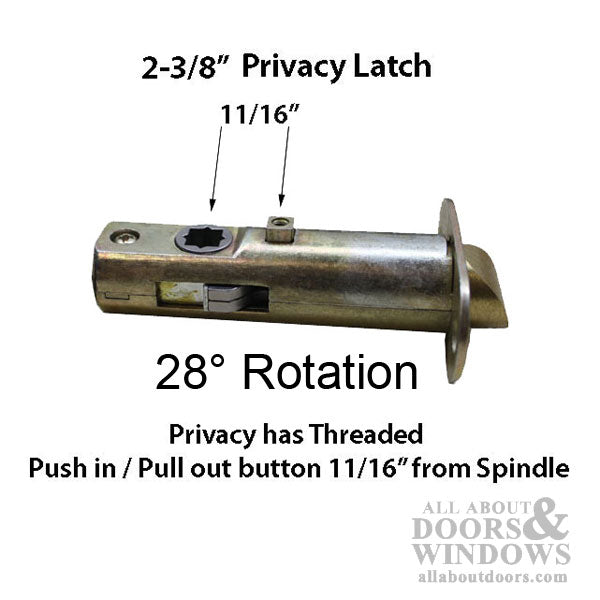

Privacy have a square hole with a plate in the middle for  Privacy Pin.( not included)

Notes:
Available Backset: 2-3/8 (60 mm) or 2-3/4 (70 mm)

Optional Faceplate Colors (not included): Polished Brass, Oil Rubbed Bronze, Brushed/Satin Nickel

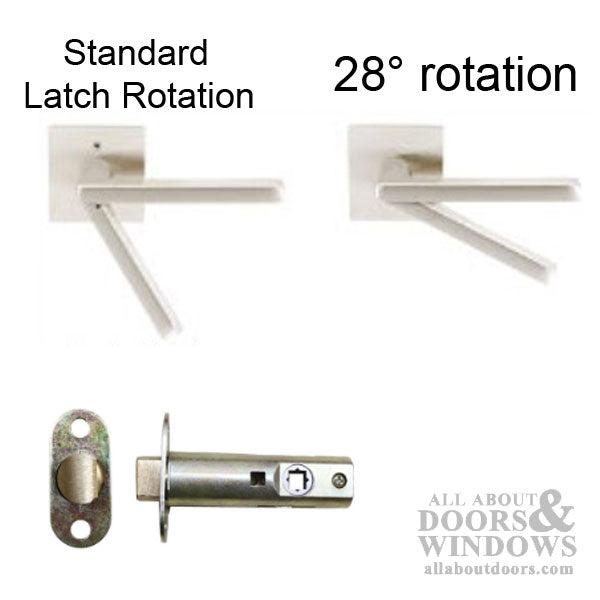

What is a 28 degree latch? - A latch that requires less rotation on the handle to disengage the  mechanism.
Useful for people with ergonomic concerns, like users who suffer from arthritis.

Priced and sold each, NO faceplate included.
