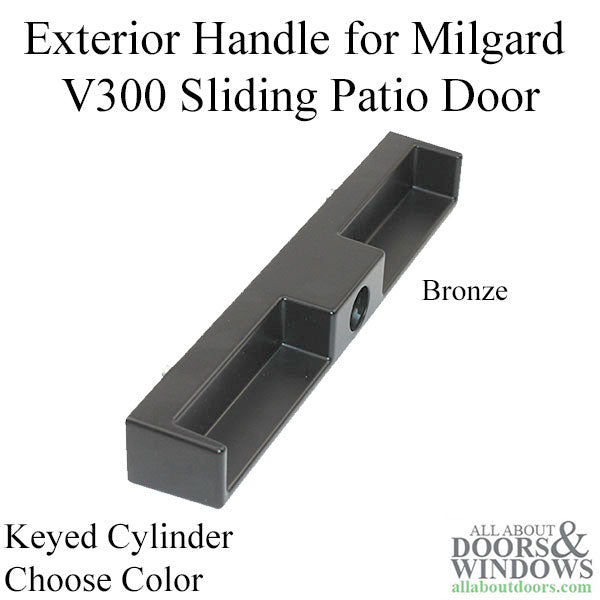

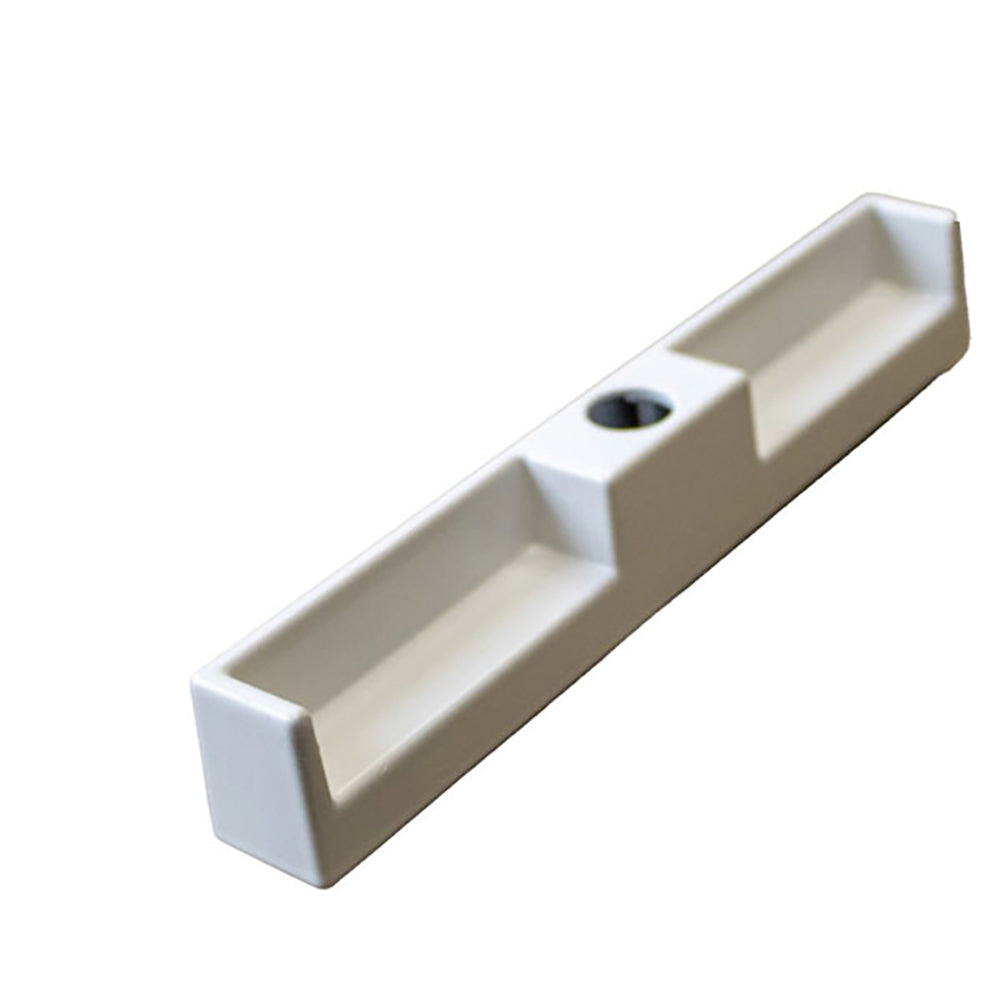

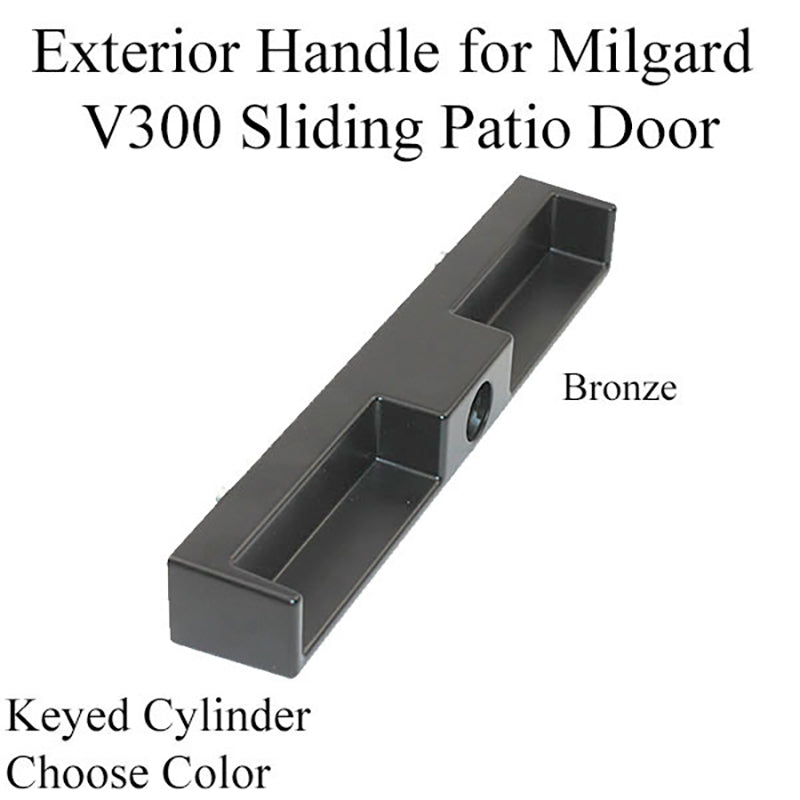

Milgard, Trinsic Series / V300 Sliding Patio Door Keyed Exterior Handle
Part Number: HL7208-ALMD Price: $29.69Milgard exterior handle for glass sliding doors.
Used with the Trinsic sliding patio door
Old Milgard part # HL7208LK-Color, new part # HL7208-Color

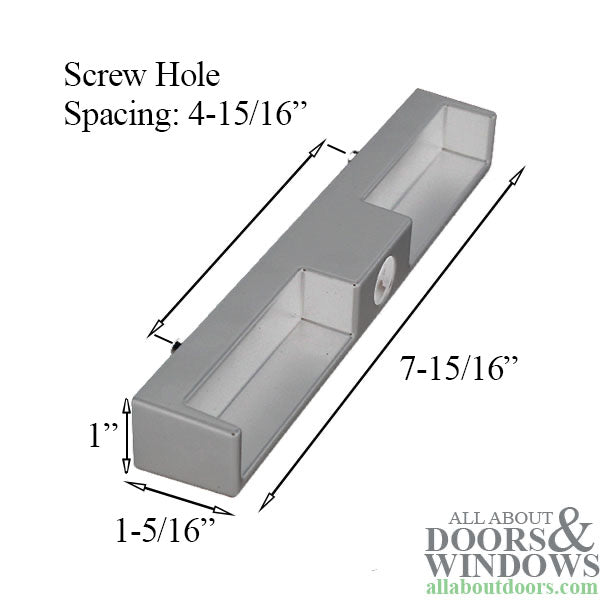

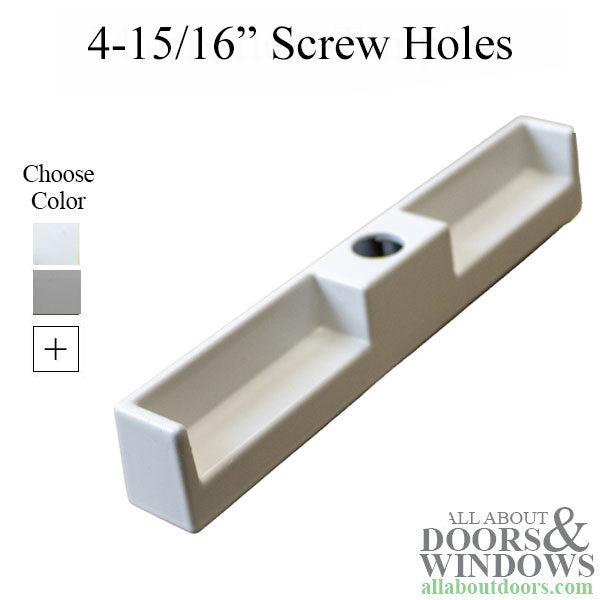

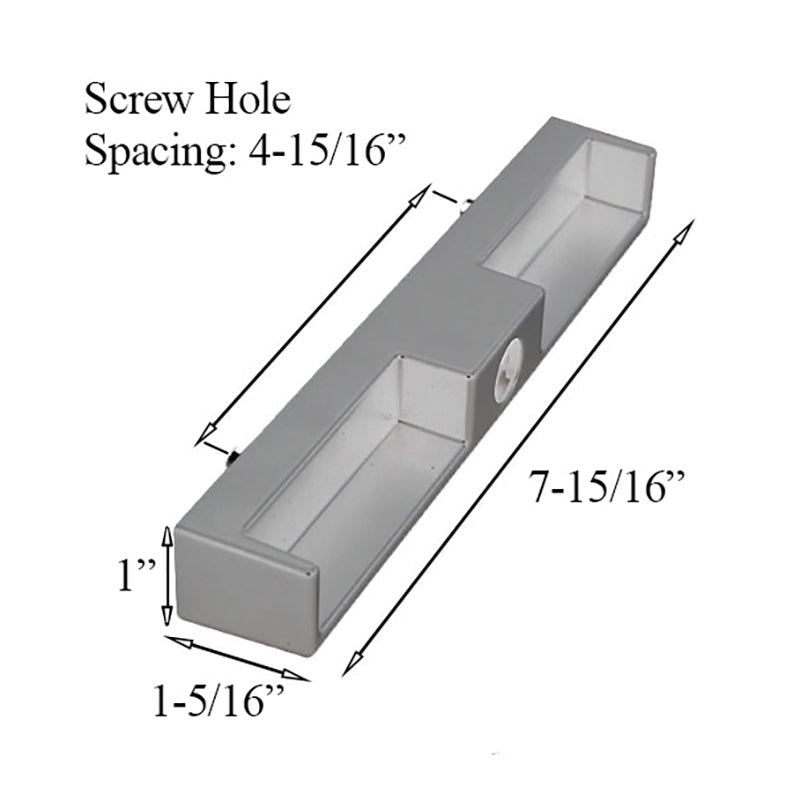

Screw hole spacing: 4-15/16 inches (center of top screw hole to center of bottom screw hole):
Has hole for key cylinder (Cylinder NOT included)
Note: The outside pull used a 5 pin Schlage SC-1 cylinder, Not included, sold separately.
See part 14346
Length: 7-15/16"
Width: 1"
Depth/Projection: 1-5/16"
Screw Hole Spacing: 4-15/16"
Available Color Options:
Almond
Bronze
Clay
Gray
Tan
Taupe
White
Exterior handle only
Screws NOT included. (Reuse existing screws)
Priced and sold each.
Used with the Trinsic sliding patio door
Old Milgard part # HL7208LK-Color, new part # HL7208-Color
Screw hole spacing: 4-15/16 inches (center of top screw hole to center of bottom screw hole):
Has hole for key cylinder (Cylinder NOT included)
Note: The outside pull used a 5 pin Schlage SC-1 cylinder, Not included, sold separately.
See part 14346
Length: 7-15/16"
Width: 1"
Depth/Projection: 1-5/16"
Screw Hole Spacing: 4-15/16"
Available Color Options:
Almond
Bronze
Clay
Gray
Tan
Taupe
White
Exterior handle only
Screws NOT included. (Reuse existing screws)
Priced and sold each.
