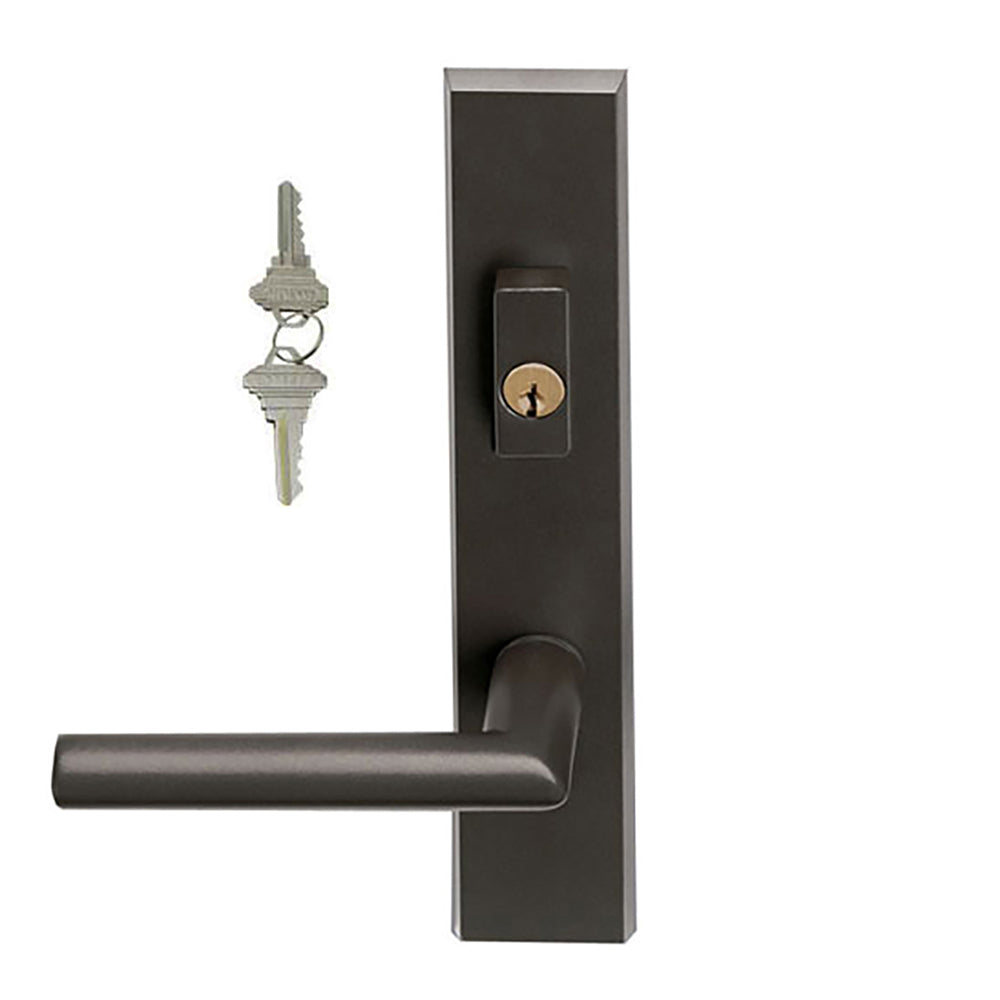

Marvin Modern Handle, Active Ultimate Hinged French Door
Handle Assembly, Active Panel
(Schlage “C” keyway)
Escutcheon Plates = 1-7/8" x 10-1/8"
Screw Hole Center = 7-1/4"
Center of cylinder to center of lever (PZ) = 3-5/8"

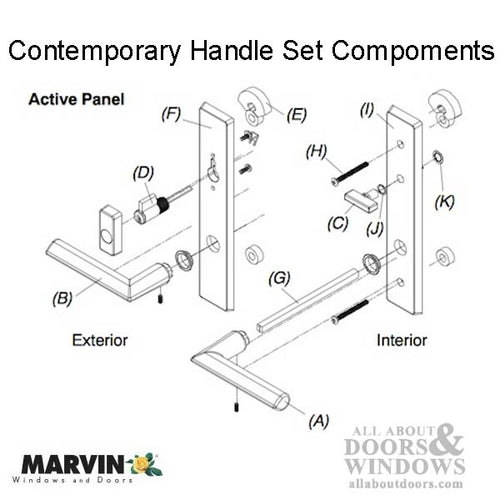

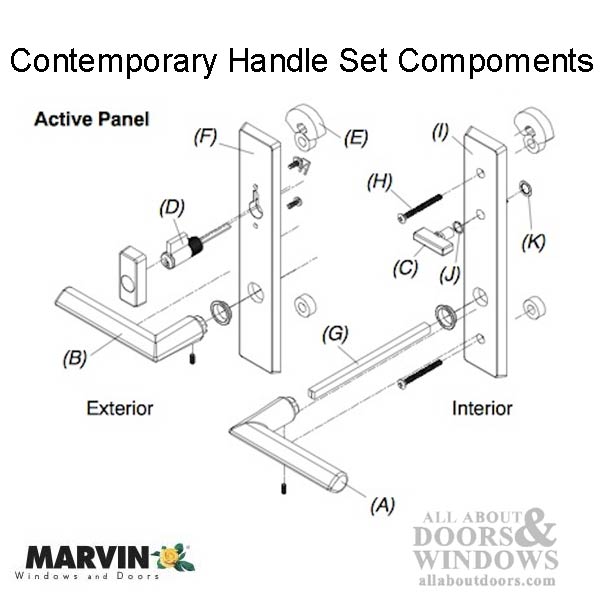

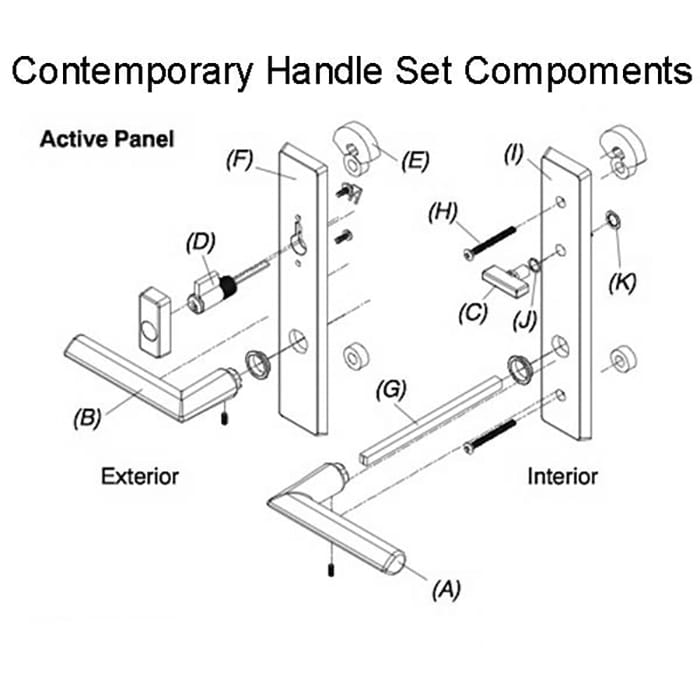

Includes:
1 − Interior lever (A) with 10148414 spindle, escutcheon plate
and hardware
1 − Exterior lever (B) with escutcheon plate and hardware 1 − Thumb turn (C) with hardware
1 − Keyed cylinder (D) with housing and hardware
1 − Exterior escutcheon plate gasket (E)
1 − Exterior escutcheon plate (F)
1 − Two piece spindle (G)
2 − M5 x 55mm Phillips ovalhead machine screws (H)
1 − Interior escutcheon plate (I)
1 − Thumb turn washer (J)
1 − Thumb turn push nut (K)
2 − Keys

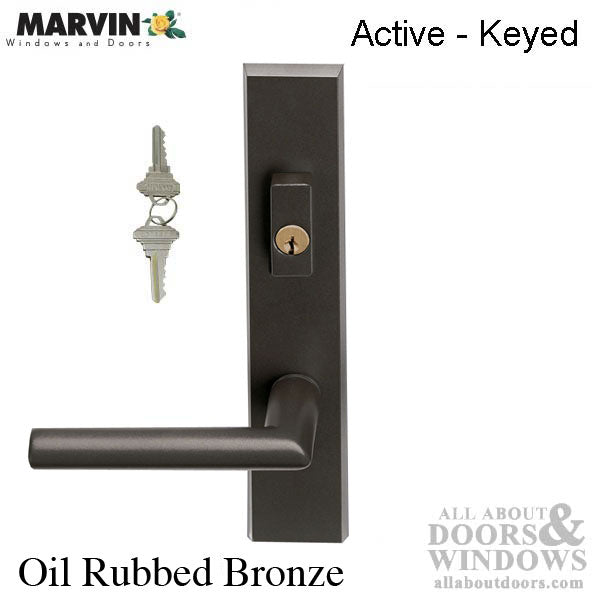

Active Panel, Keyed
11102150 - Satin Taupe
11102151 - PVD Oil Rubbed Bronze
11102152 - PVD Satin Nickel
11102156 - Dark Bronze
11102192 - Matte Black
Passive/Dummy, no thumbturn
11102153 - Satin Taupe
11102154 - PVD Oil Rubbed Bronze
11102155 - PVD Satin Nickel
11102157 - Dark Bronze
11102193 - Matte Black
