REPLACE WITH 302043

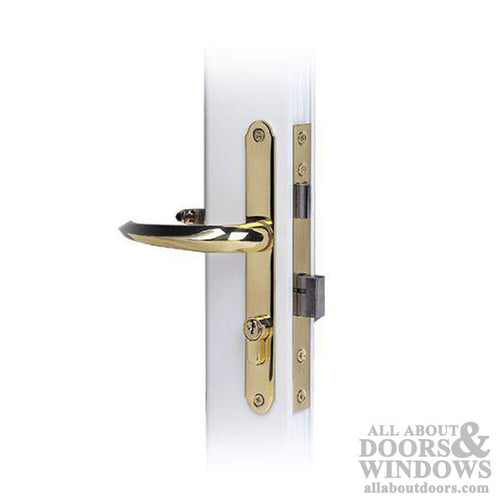

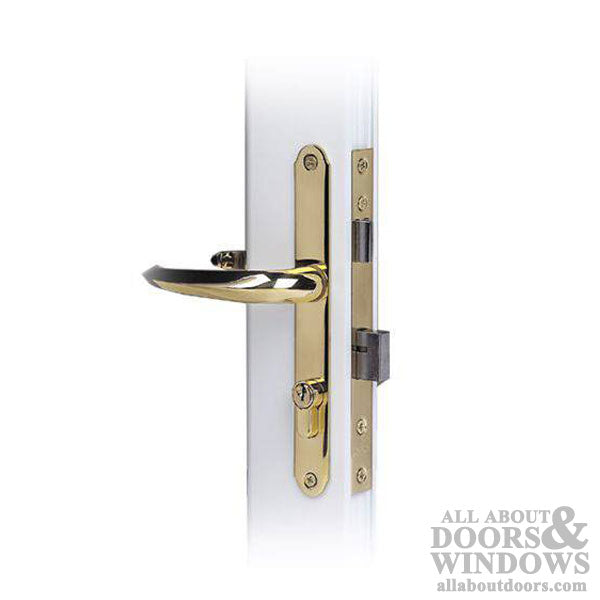

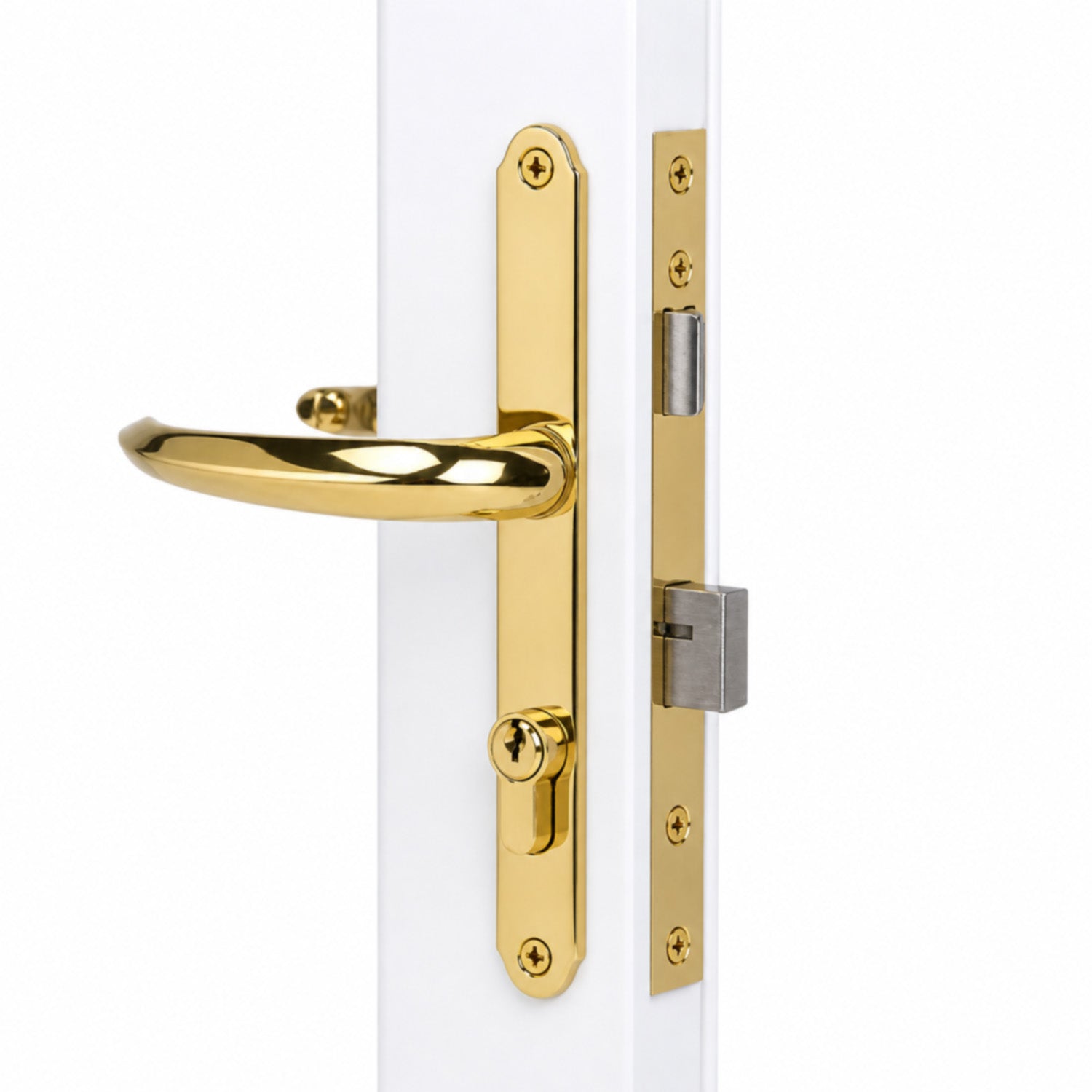

Faceplate of mortise lock: 13/16" x 7-3/4", screws hole 7", 7/8" backset, center of handle to center of cylinder 2-1/2"
Escutcheon Plate: 1" x 8-1/4", Hole Center 7-1/4"
Door thickness up to 1-1/2"
Profile Cylinder 2-7/16", Center cam
Faceplate of mortise lock: 13/16" x 7-3/4", screws hole 7", 7/8" backset, center of handle to center of cylinder 2-1/2"
Escutcheon Plate: 1" x 8-1/4", Hole Center 7-1/4"
Door thickness up to 1-1/2"
Profile Cylinder 2-7/16", Center cam
