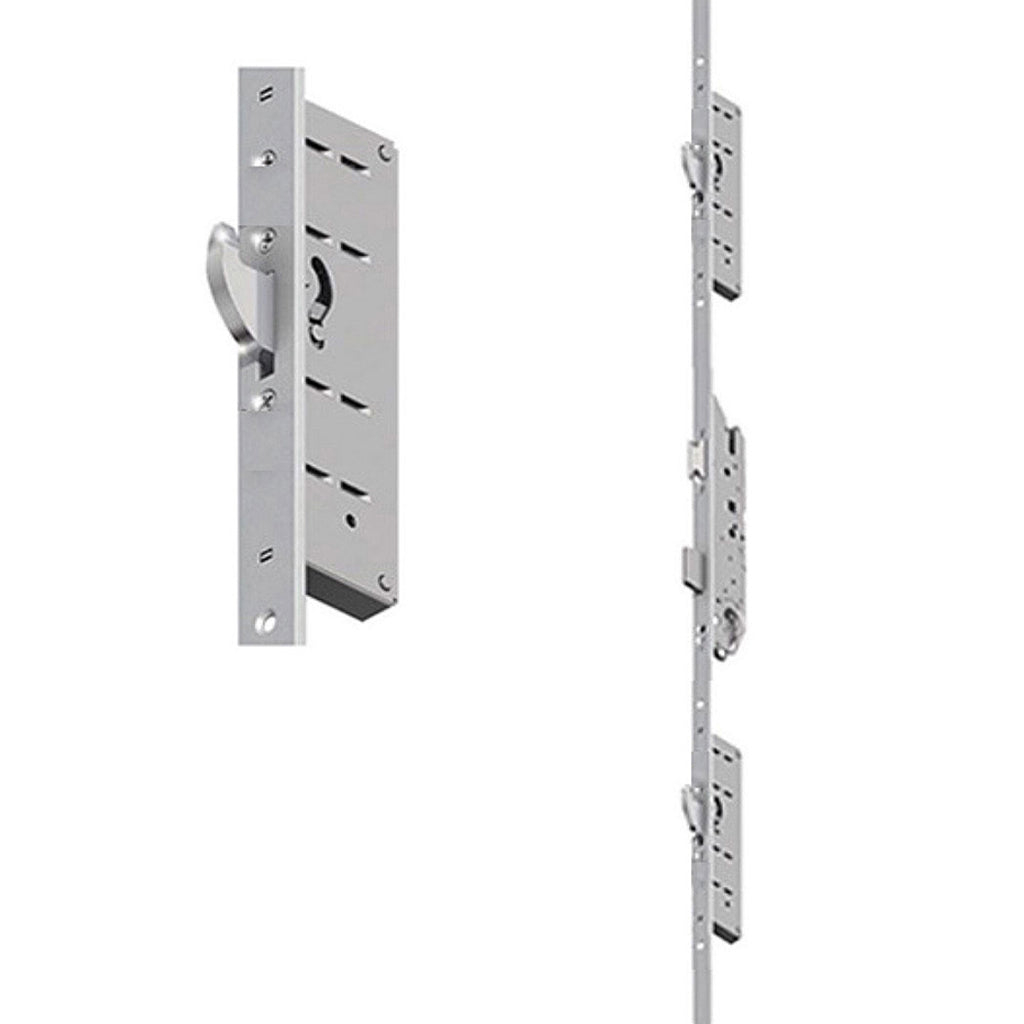

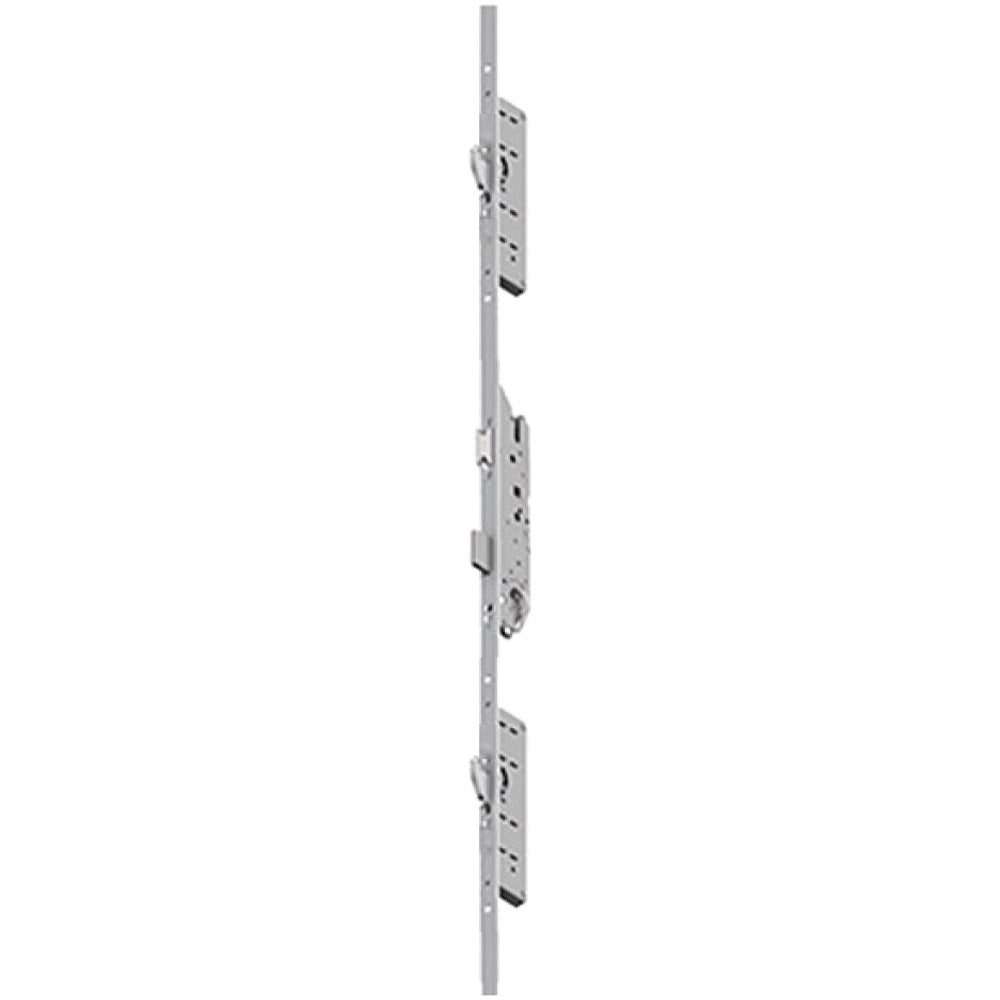

Hoppe Key operated Multipoint Lock, with Panic Function for Emergency Egress, New for 2019

Specifications:
Faceplate Width: 0.94488189 (24mm)

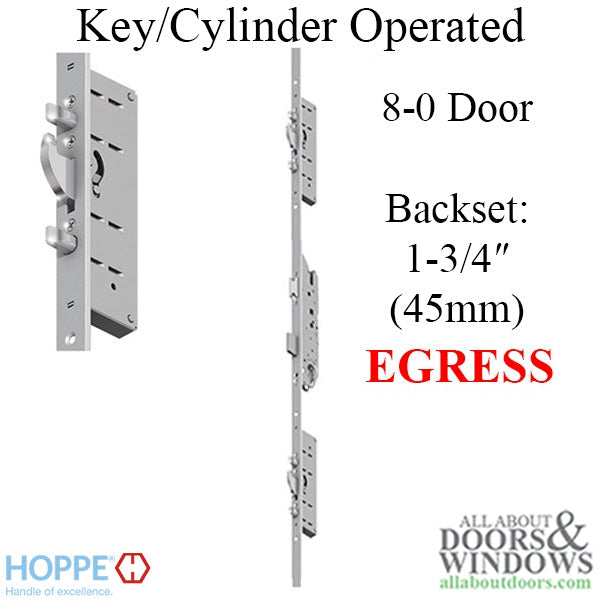

Backset: 1-3/4 inch (45mm)
Handle Height: 40.2 inch ( 1020mm)
Handle Hub / Shaft: 8mm Standard / 9mm Egress
Panel Height: Doors 85.43-94.49 inch ( 2170-2400mm)
Material: Stainless Steel

Standard Function
Rotate the exterior key or interior thumb turn two turns to lock and unlock
the door. The exterior key or interior thumb turn retracts the latch. The
interior lever also retracts the latch.

8 mm handle shaft

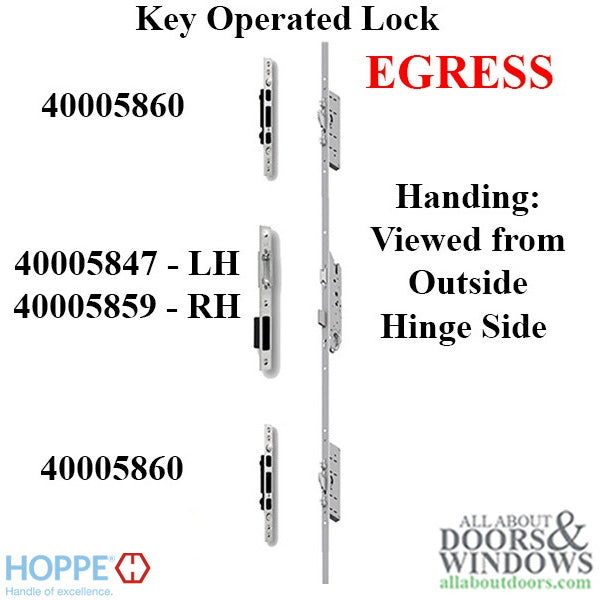

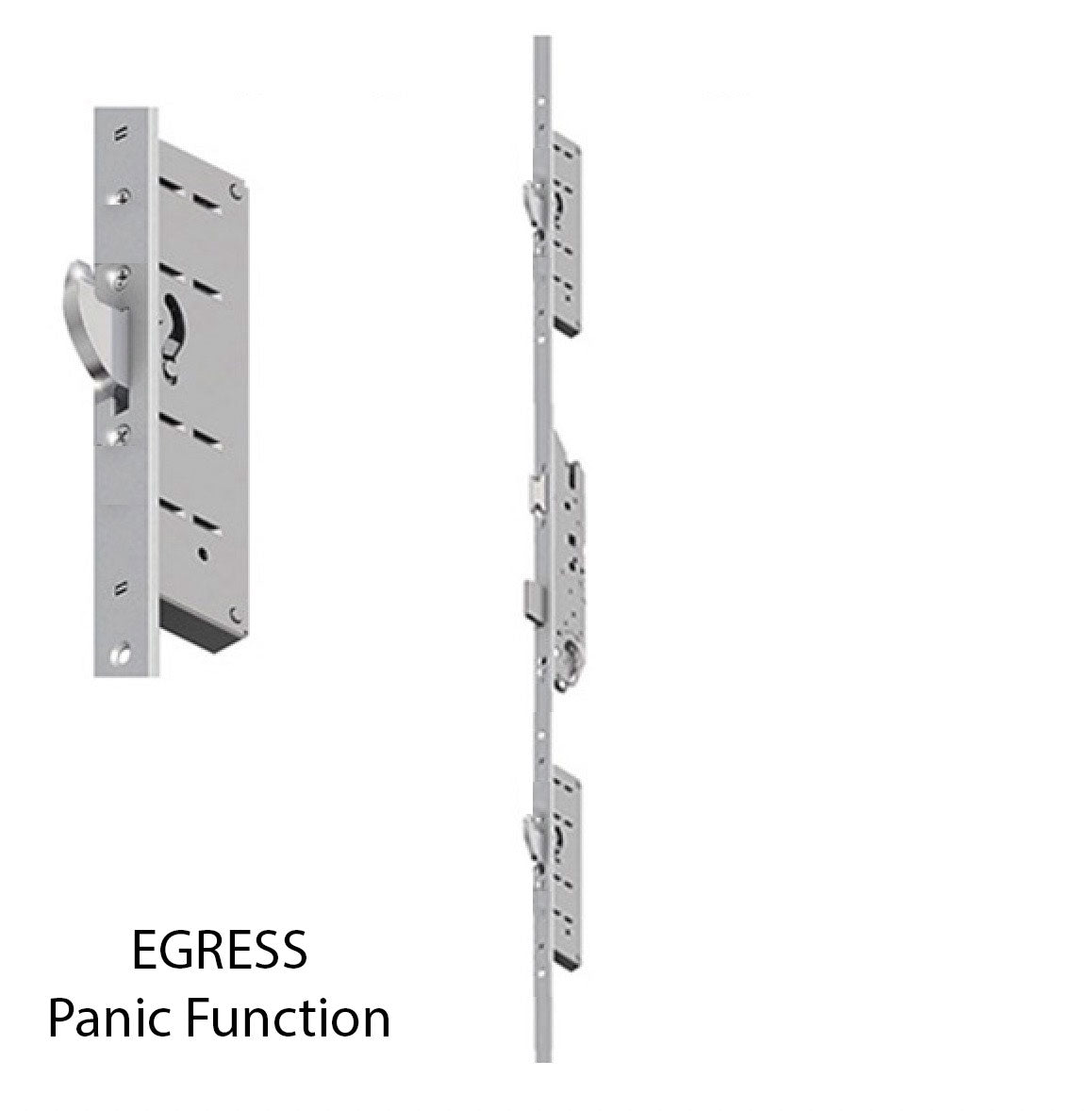

Egress Function
The interior lever retracts the latch and any extended bolts. Rotate the
exterior key or interior thumb turn two turns to lock and unlock the door.
The exterior key or interior thumb turn also retracts the latch.

 9 mm handle shaft

Important Installation Notes
A 360° Cylinder is REQUIRED for this lock
You may use this 360° Cylinder - 413232130 - be sure to check that your door thickness works for your selected cylinder before purchasing
You may also purchase a 90° Cylinder but you will need to convert it to a 360° Cylinder before using it with this lock - our 90° Cylinders with our conversion video can be found here
