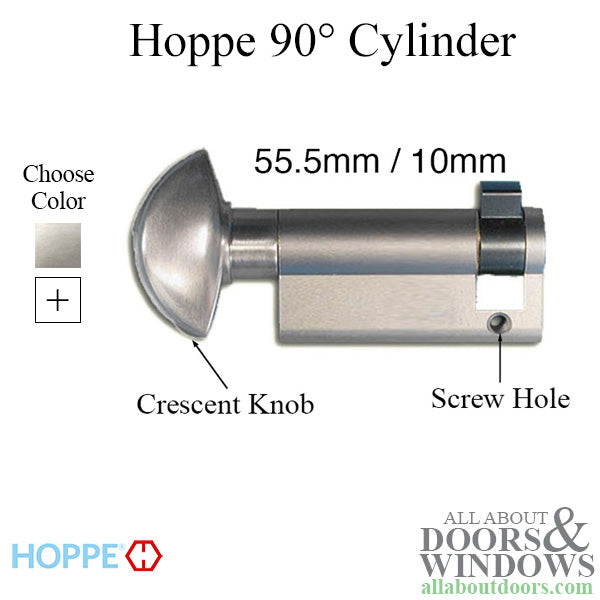

New style 90 degree HOPPE non-keyed profile cylinder with crescent knob.

Used on doors that are 1-3/4 inch or thicker.

The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.

This is a non-keyed cylinder and typically used on inactive/passive doors.
This cylinder can be converted to a 360 degree cylinder.

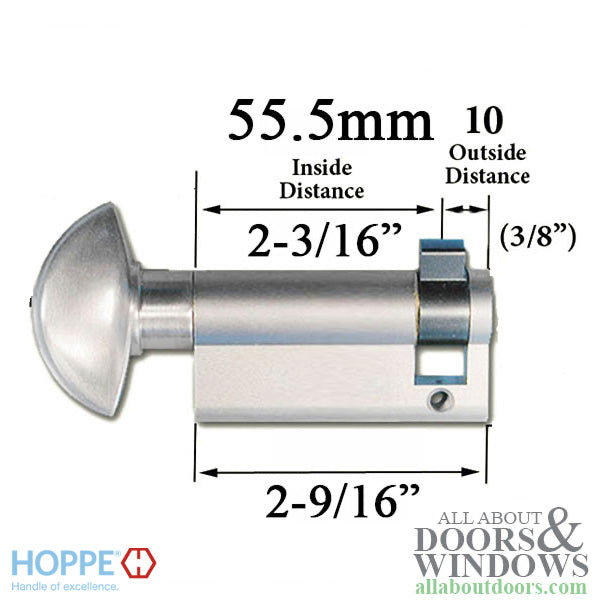

Measurements:
Inside Distance = 2-3/16 inch (55.5 mm)
Outside Distance = 3/8 inch (10 mm)
Overall (inside + outside) = 2-9/16 inches (55.5 mm)

Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

Color/Finish Options:
Satin Nickel

Resista no-tarnish finishes:


Note: Some colors may be special order, resulting in longer shipping times.

Priced and sold each.
