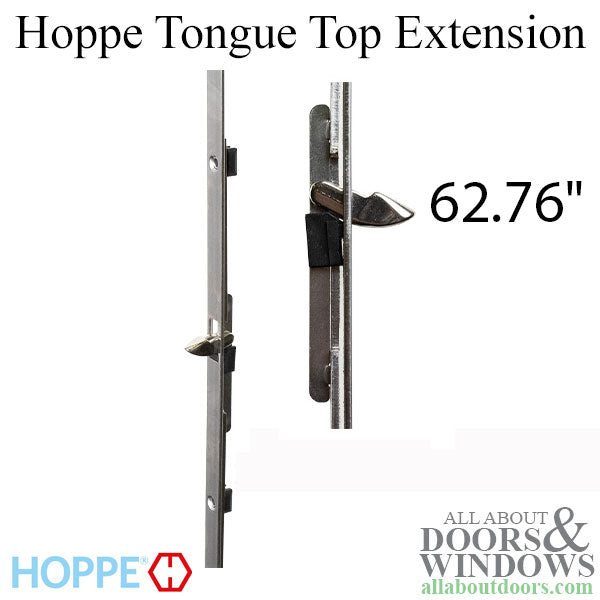

Hoppe top extension for manual tongue version lock with 16mm faceplate.
Manual top extension, tongue version for active door.
Faceplate Width: 5/8 inch (16mm)
Material: Stainless Steel

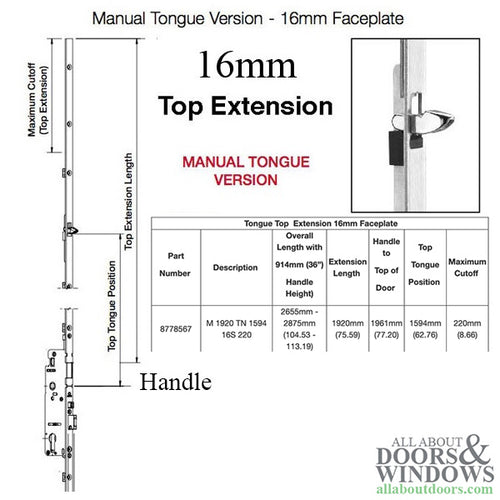

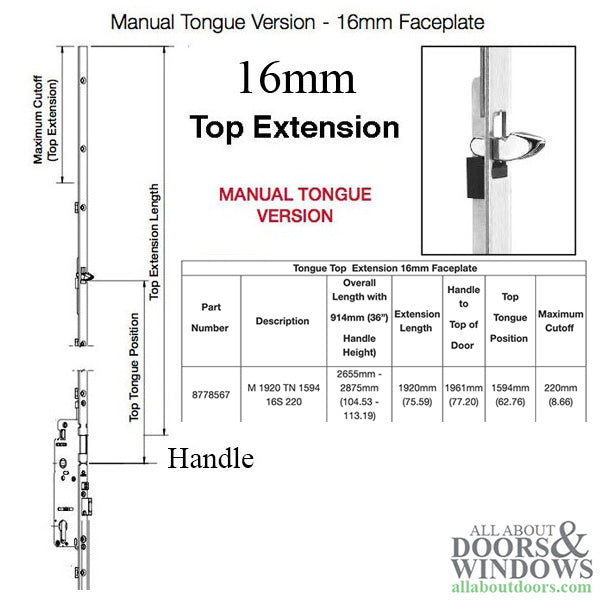

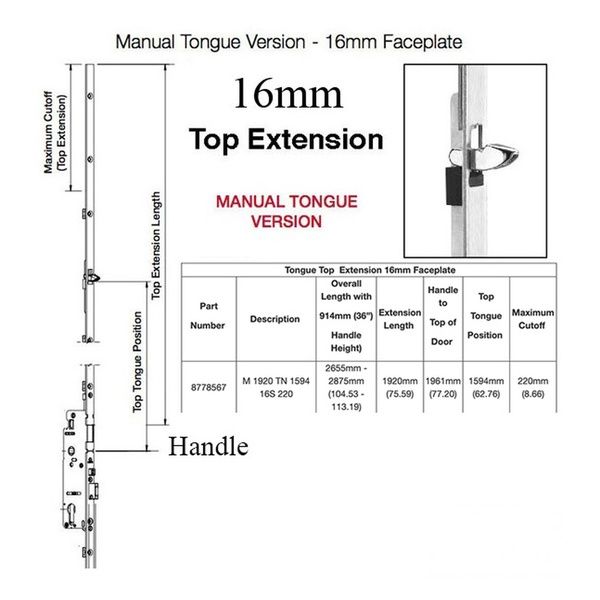

Overall Length: 104.53 to 113.19 inch (2655mm-2875mm) for door with 36 inch handle height.
Extension Length: 75.59 inches (1920mm),
Handle to top of door 77.20 inches (1961mm)

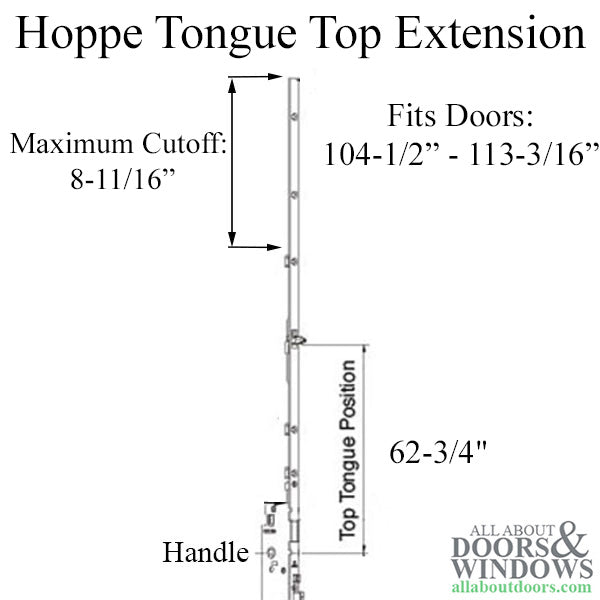

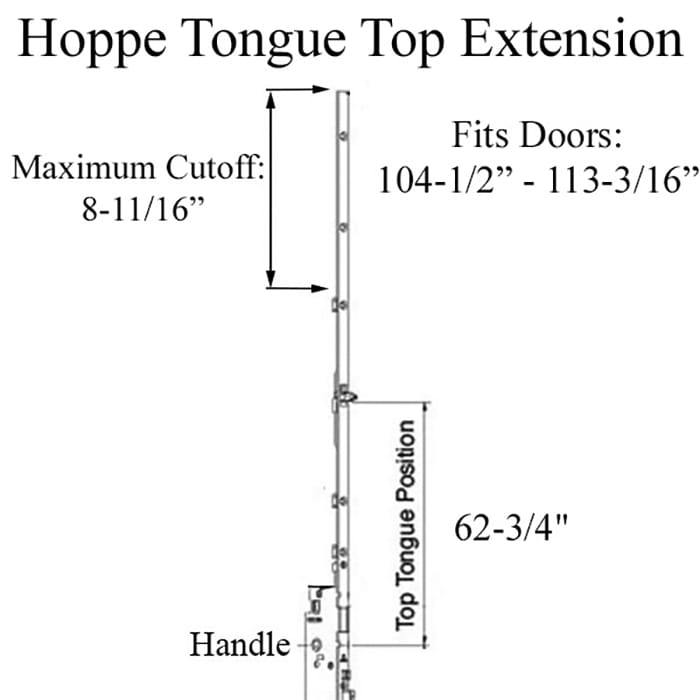

Top Tongue Position: 62.76 inches (1594mm)
Maximum cut off 8.66 inches (220mm)
Number of Screws: 11 - 1-3/8 inch (35mm) length
Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - Hoppe Top Extension with Tongue 75.59"
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
Manual top extension, tongue version for active door.
Faceplate Width: 5/8 inch (16mm)
Material: Stainless Steel
Overall Length: 104.53 to 113.19 inch (2655mm-2875mm) for door with 36 inch handle height.
Extension Length: 75.59 inches (1920mm),
Handle to top of door 77.20 inches (1961mm)
Top Tongue Position: 62.76 inches (1594mm)
Maximum cut off 8.66 inches (220mm)
Number of Screws: 11 - 1-3/8 inch (35mm) length
Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - Hoppe Top Extension with Tongue 75.59"
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
