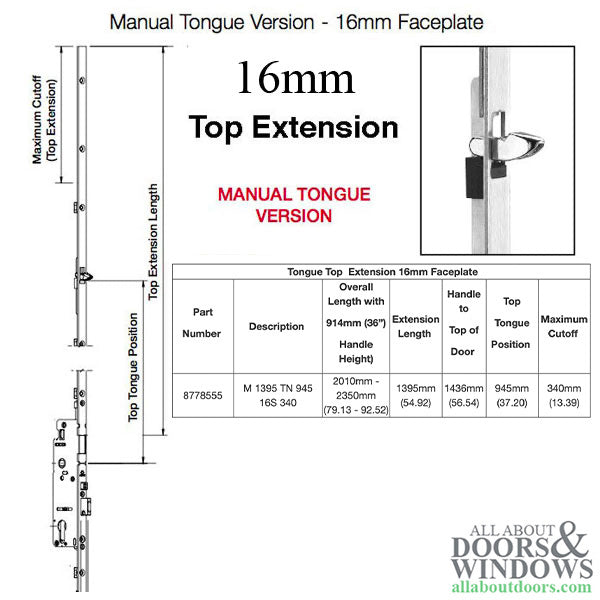

Part Number 8778555 Manual Version, Top Extension,
Faceplate Width: 5/8 inch (16mm)
Material: Stainless Steel
Extension Length 54.92 inches,
Overall Length with 36 inch handle height, fits doors 79.13 - 92.52 inches,
Handle to Top of Door 56.54 inches,

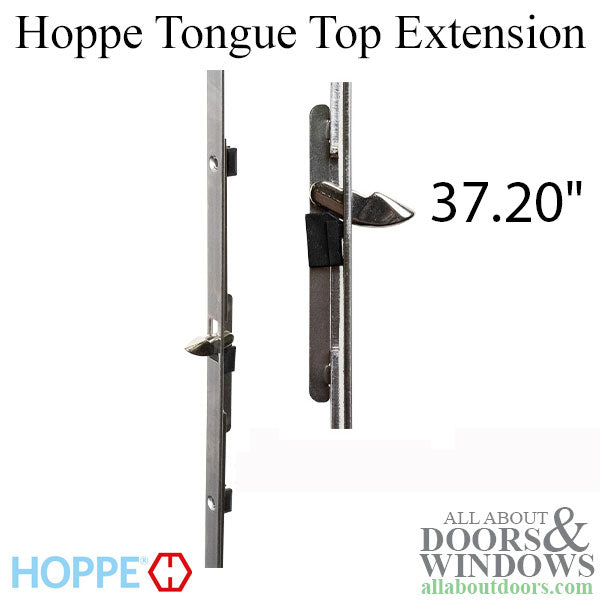

Top Tongue Position 37.20 inches from center of handle

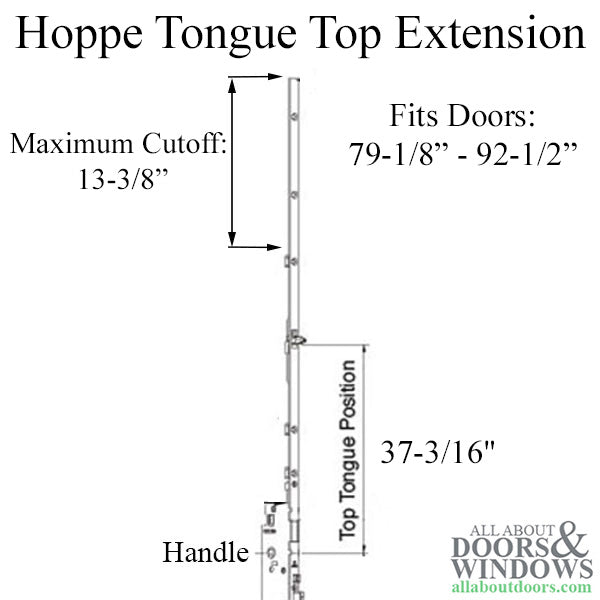

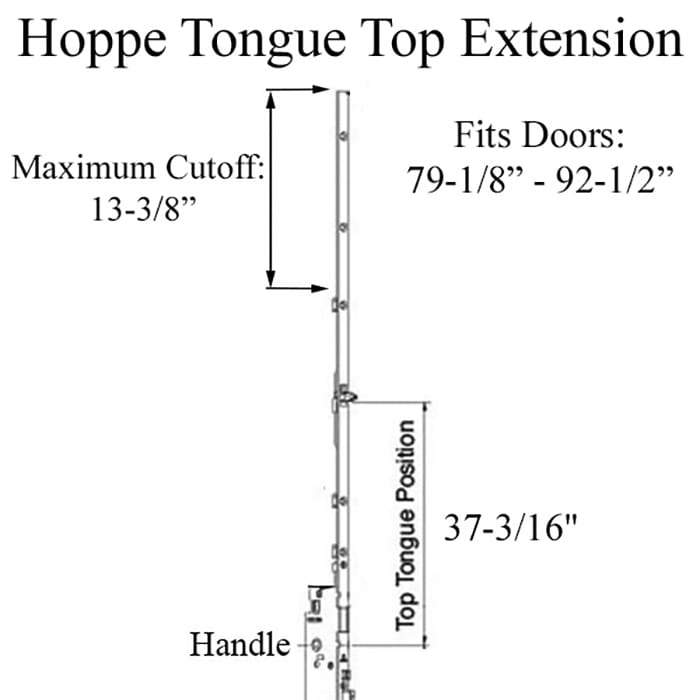

Maximum Cutoff 13.39 inches
Top Extension
8778555 fits doors 79.13 - 92.52 inches
8778559 fits doors 79.13 - 99.41 inches
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
Faceplate Width: 5/8 inch (16mm)
Material: Stainless Steel
Extension Length 54.92 inches,
Overall Length with 36 inch handle height, fits doors 79.13 - 92.52 inches,
Handle to Top of Door 56.54 inches,
Top Tongue Position 37.20 inches from center of handle
Maximum Cutoff 13.39 inches
Top Extension
8778555 fits doors 79.13 - 92.52 inches
8778559 fits doors 79.13 - 99.41 inches
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
