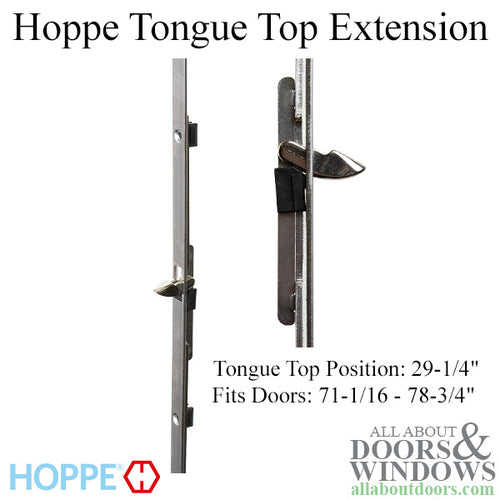

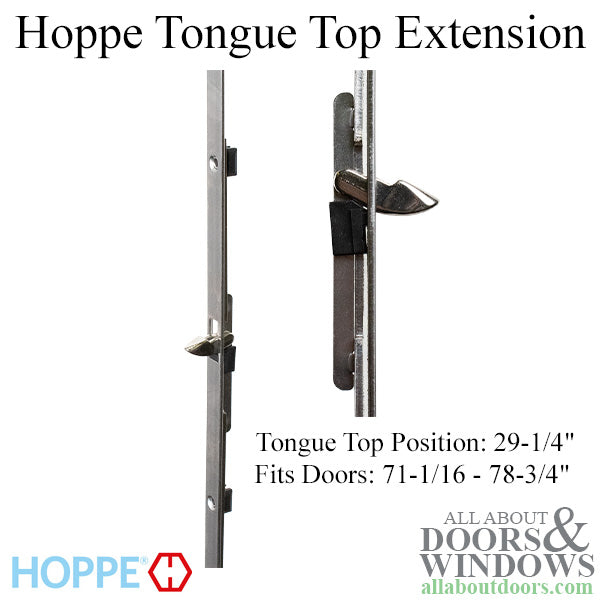

16mm Manual Top Extension, Tongue @ 29.25", 41.14" Length

Part Number: 8778547 Price: $37.13
Hoppe 8778547 is the Top Extension only, does not include the bottom assembly with Gearbox
Hoppe Multi-Point Lock Top Component with Tongue - 1 of 2 Pieces for a complete lock.

Top Section: Manual Tongue
Faceplate Width: 5/8"(16mm)

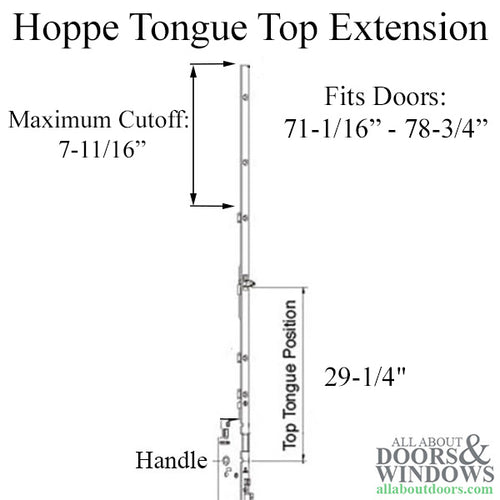

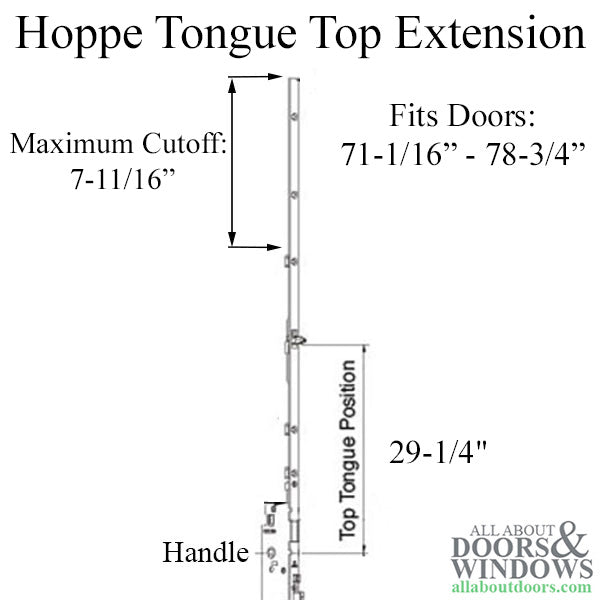

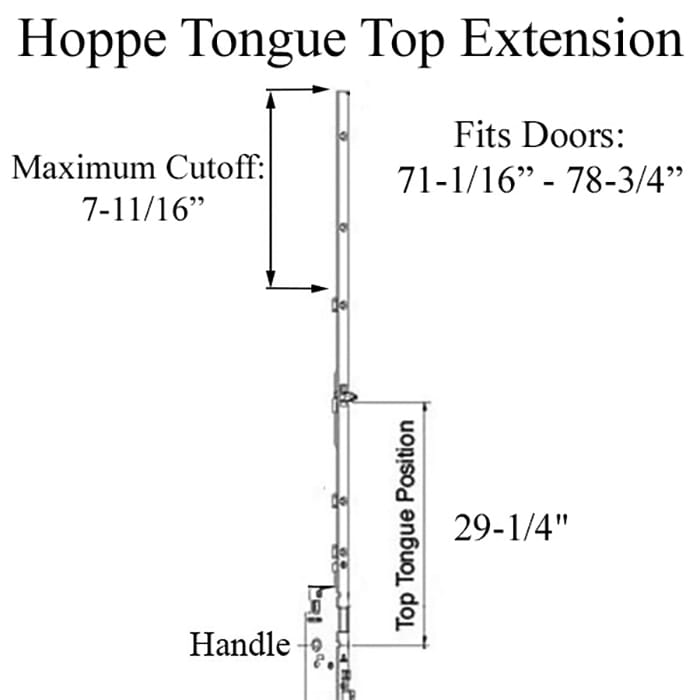

Top Tongue Position: 29-1/4" (743mm) From handle to tongue
Doors: 71-1/16 - 78-3/4" tall ( with 36" handle height)
Extension Length: 41-1/8" (1045mm)
Maximum Cutoff: 7-11/16" (195mm)
Material: Stainless Steel
Number of Screw Holes: 7

Related Parts and Hardware:
8785695 - 1-3/8" (35mm) installation screws

Note:
When both Upper and Lower assemblies are connected fits doors from 71-1/16" to 78-3/4" inches tall with 36" handle height.
The top may be cut a maximum of 7-11/16" (195mm) inches, to adjust for different door heights.
This is the Top Extension only, does not include the bottom assembly with Gearbox
