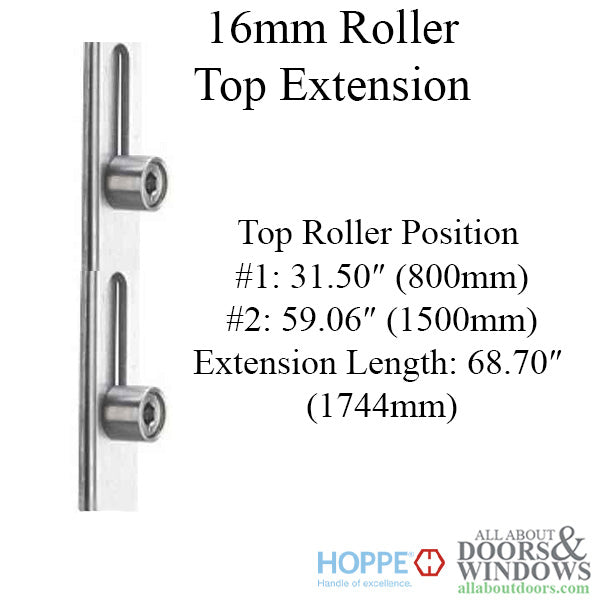

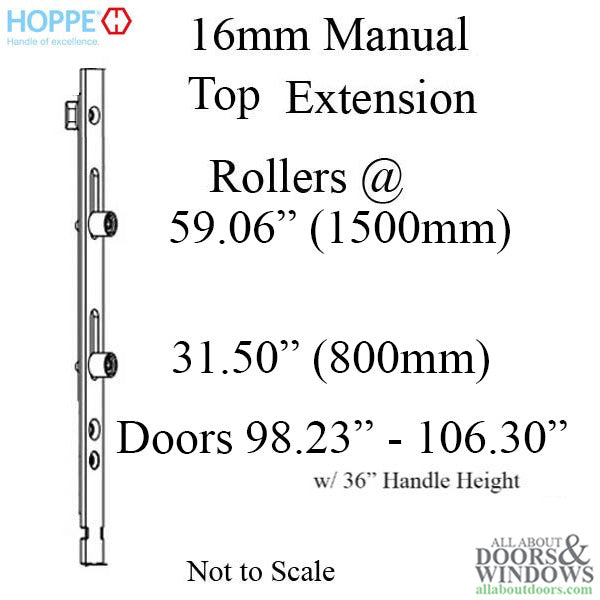

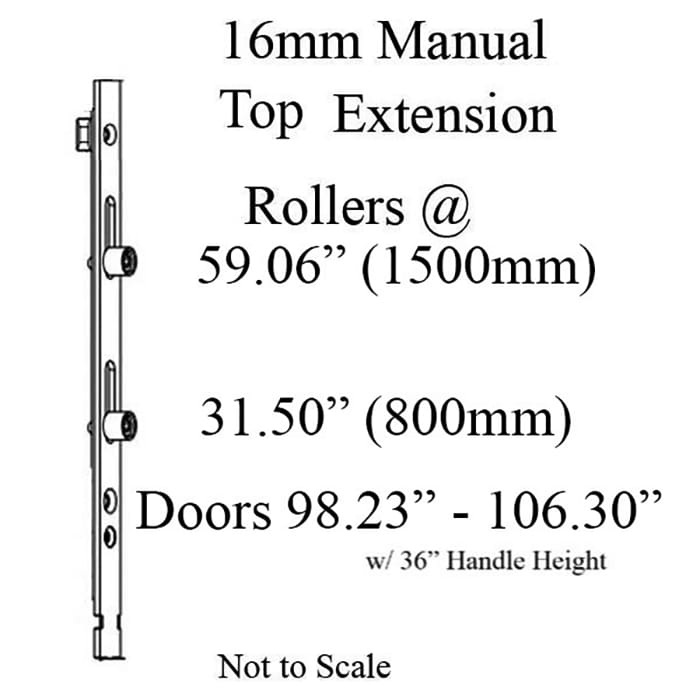

16mm Manual 4 Roller Top Extension, Rollers at 31.50" and 59.06", Length 68.70"

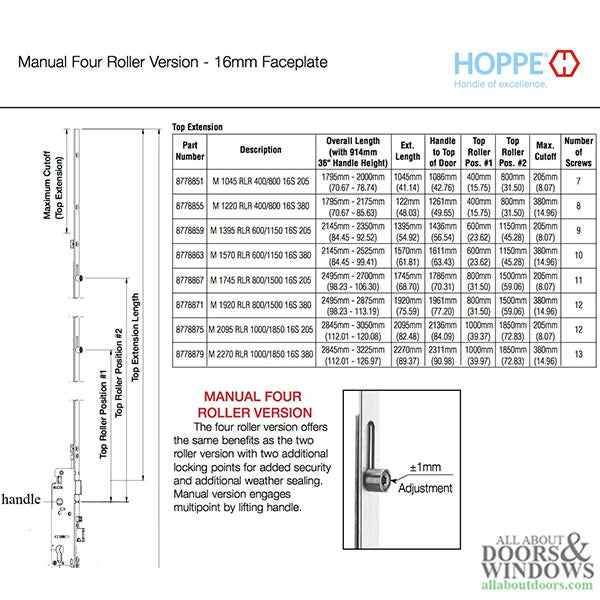

Part Number: 8778867 Price: $96.22Top Extension for Manual Four Roller Version. 5/8 inch (16mm) Face plate - Stainless Steel

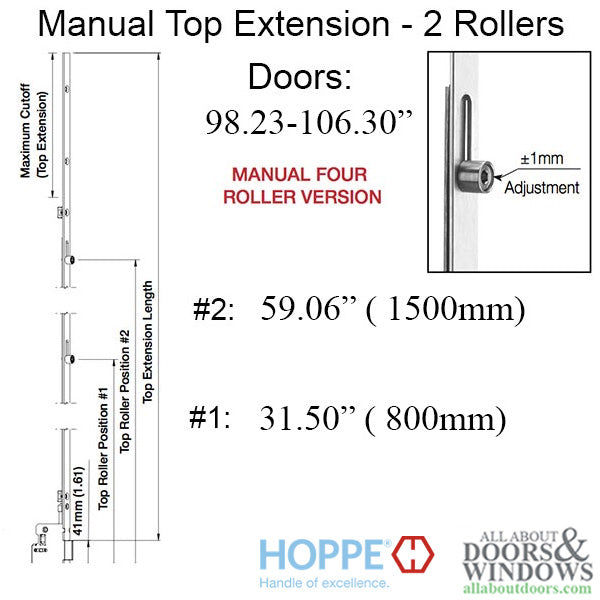

Overall Length with 36 inch handle height: 98.23-106.30 Inches.
Extension Length: 68.70 inches
Handle to top of door: 70.31 inches
Top Roller #1 Position: 31.50 inches
Top Roller #2 Position: 59.06 inches
Max Cut Off: 8.07
Number of Screws: 11
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
