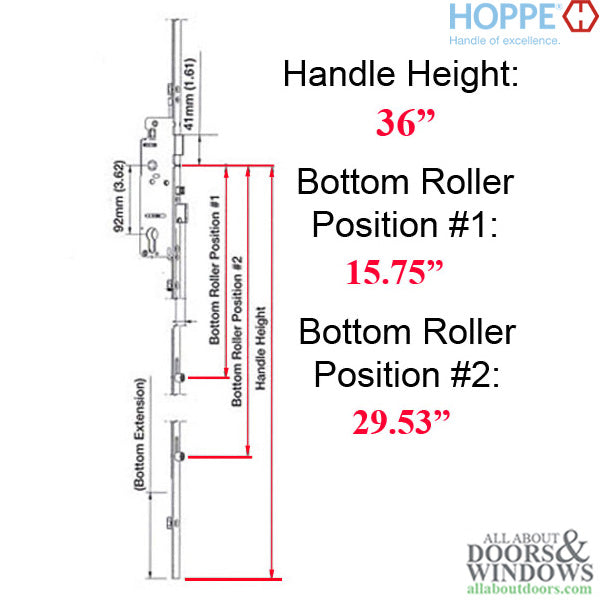

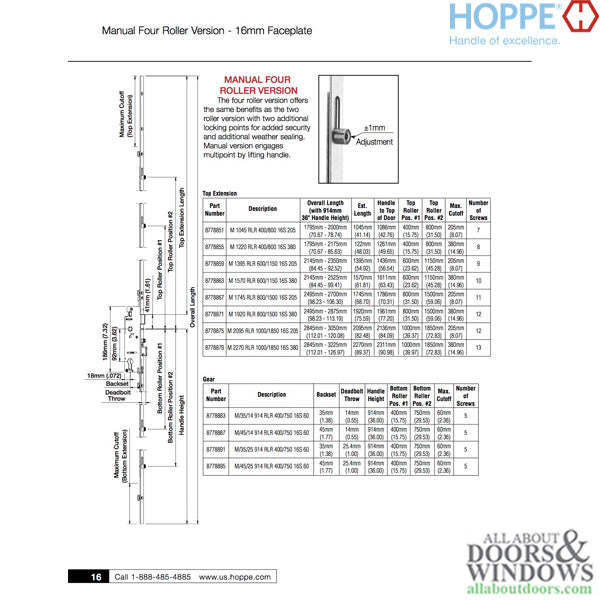

Bottom Gear, HLS9000 Four Roller Version, Manual Locking.

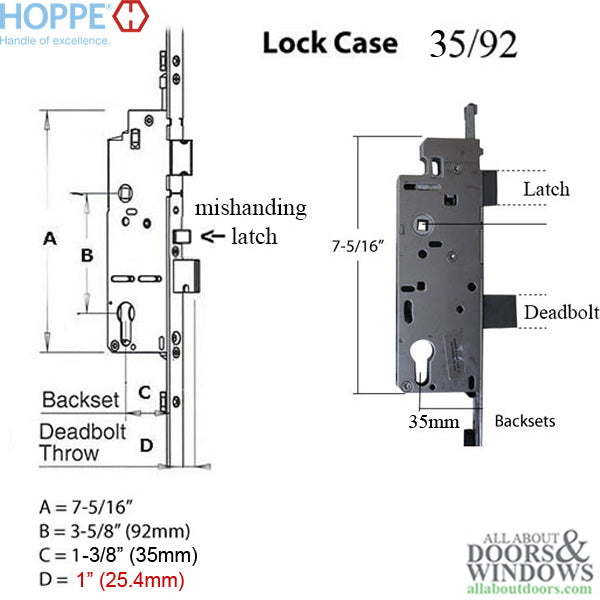

Faceplate Width: 5/8"(16mm),
Backset: 1-3/8" (35mm),
Deadbolt Throw: 1"(25.4mm),
Handle Height: 36" (914mm),

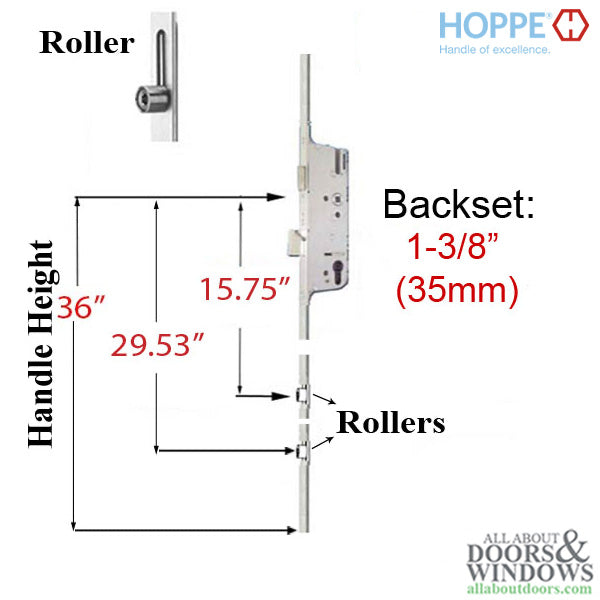

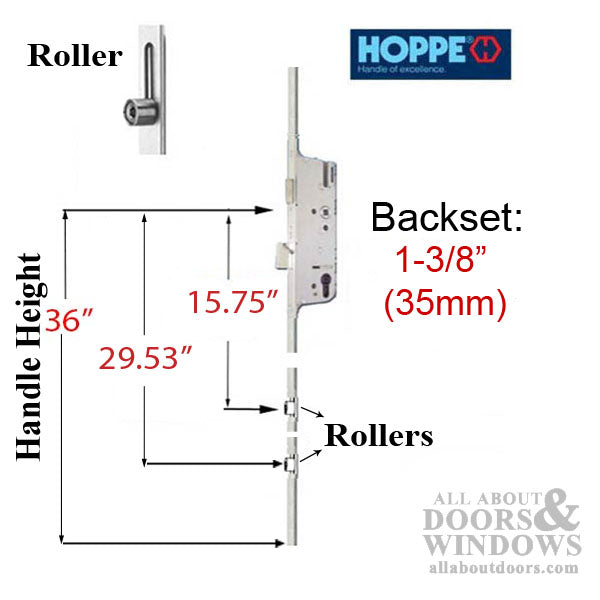

Bottom 1st Roller Position 15.75" (400mm) in down position,

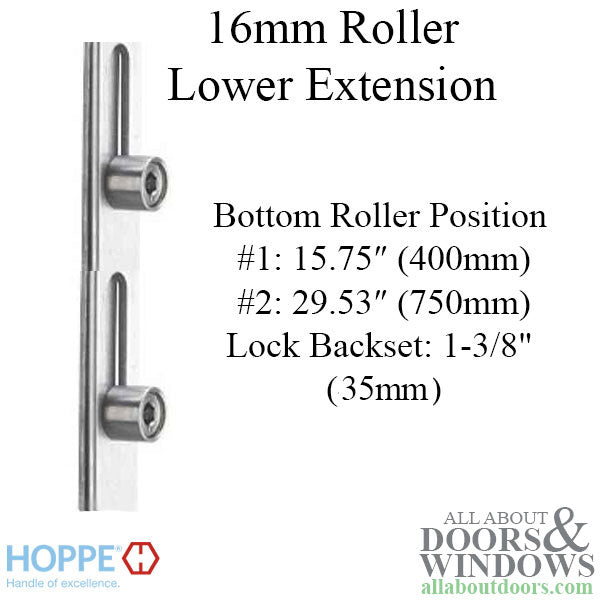

Bottom 2nd Roller Position 29.53" (750mm) in down position,
Maximum Cutoff: 2.36" (60mm)
Number of Screws: 5
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
