This item is considered old stock and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.
Old stock items are priced accordingly and are sold as is.
No returns, refunds or exchanges.

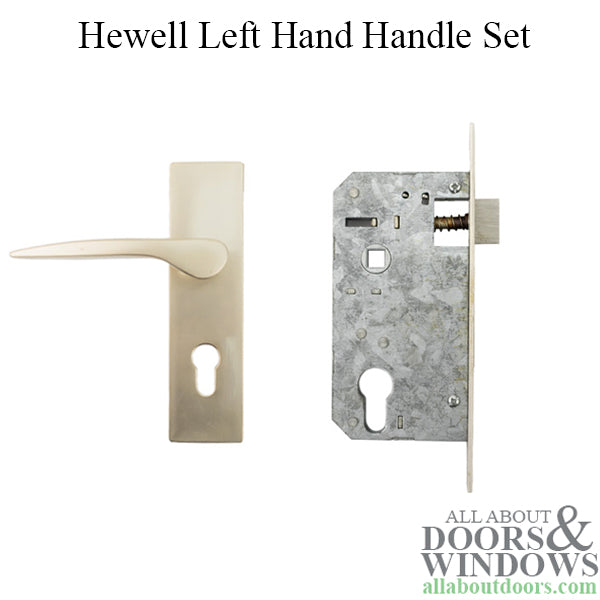

Hewell Handle and Mortise Lock Set
This is for a left-handed swinging door. This means if you are on the outside and grasp the door with your left hand and it swings to the left you need a left handle set.
This lock is used for a door that is 35 - 50 MM thick( 1 1/2 - 2 1/4 inches prox).
Includes: 2 Handles, Mortise Lock, Strike, Screw Kit, Spindle
Does Not Include a Lock Cylinder
Color: Satin Brass
Handle Length: 4-5/8"
Handle Depth: 1-3/4"

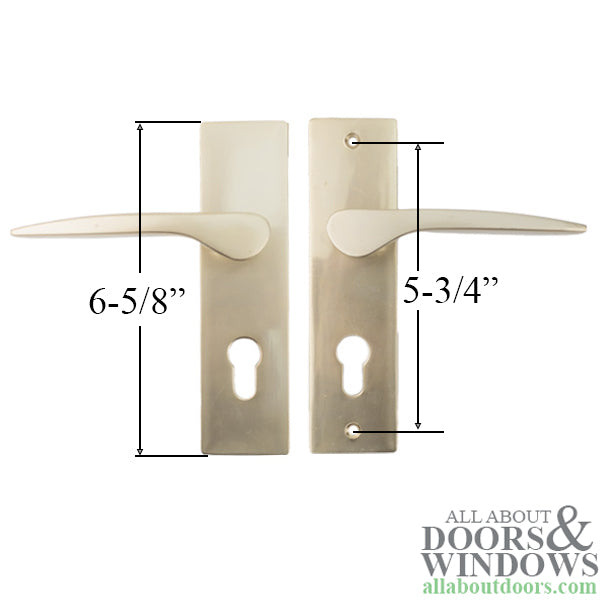

Faceplate Length: 6-5/8"
Faceplate Screwhole Spacing: 5-3/4"
Strike Plate Length: 5-1/8"
Strike Plate Screwhole Spacing: 4-1/2"

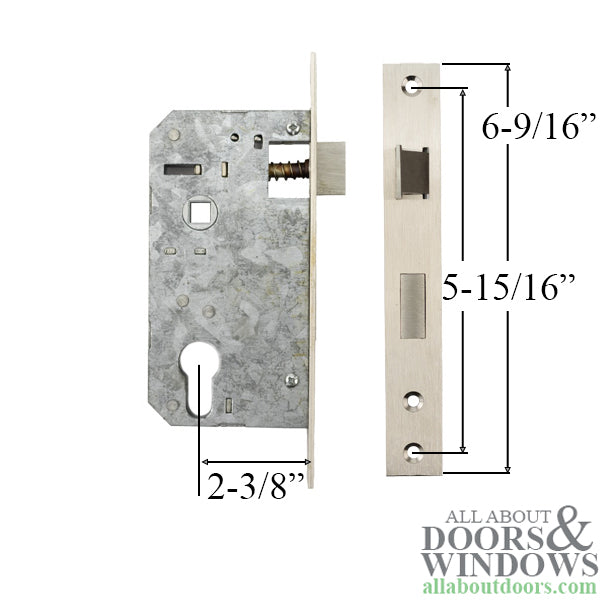

Mortise Lock Throw: 11/16"
Mortise Face Length: 6-9/16"
Mortise Screw Hole Spacing: 5-15/16"
Mortise Thickness: 1/2"
Mortise Depth: 2-3/8"
