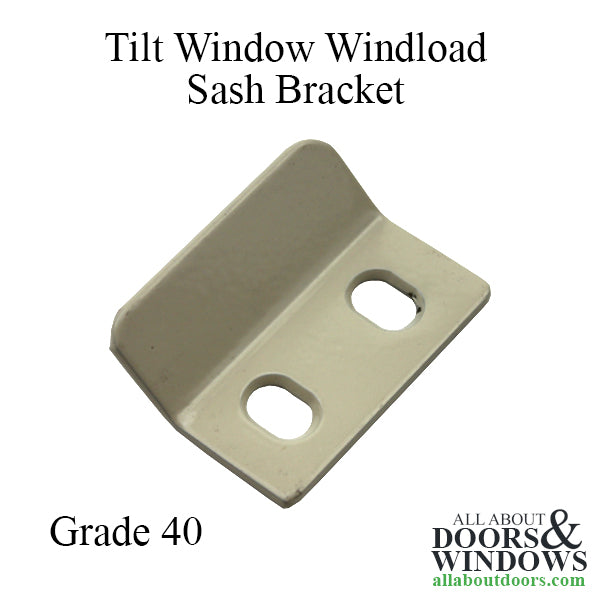

Wind load Sash Bracket

Wind load Sash Bracket - Wind load Sash Bracket
Wind load Sash Bracket - Wind load Sash Bracket
Wind load Sash Bracket - Wind load Sash Bracket
Wind load Sash Bracket - Wind load Sash Bracket

Wind load Sash Bracket

Part Number: 552089-STL
MATERIAL: - Steel

Concealed Sash Snubber for wood sash window, Used as interlocking pairs to prevent sash bowing

Used by Weather Shield on their wood Awning, Scena-Vu Awning, Casement and French Casement windows



Application: Sash Snubber, prevents window from bowing

Width:  5/8 inch

Length:  1-1/2 inch

Projection: 1/4 inch

Screw Hole Center:  3/4 inch



Material: Steel, Yellow Chromate

<p>Concealed Sash Snubber for wood sash window, Used as interlocking pairs to prevent sash bowing</p><p>Used by Weather Shield on their wood Awning, Scena-Vu Awning, Casement and French Casement windows</p><p>&nbsp;</p><p>Application: Sash Snubber, prevents window from bowing &nbsp;</p><p>Width:&nbsp; 5/8 inch</p><p>Length:&nbsp; 1-1/2 inch</p><p>Projection: 1/4 inch</p><p>Screw Hole Center:&nbsp; 3/4 inch</p><p>&nbsp;</p><p>Material: Steel, Yellow Chromate&nbsp;</p>
Add to Card
slide

Wind load Sash Bracket

Wind load Sash Bracket

Wind load Sash Bracket

Price: $1.25
