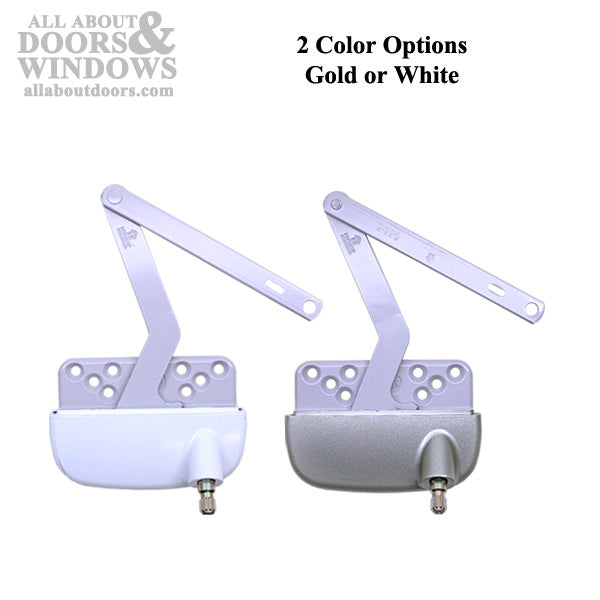

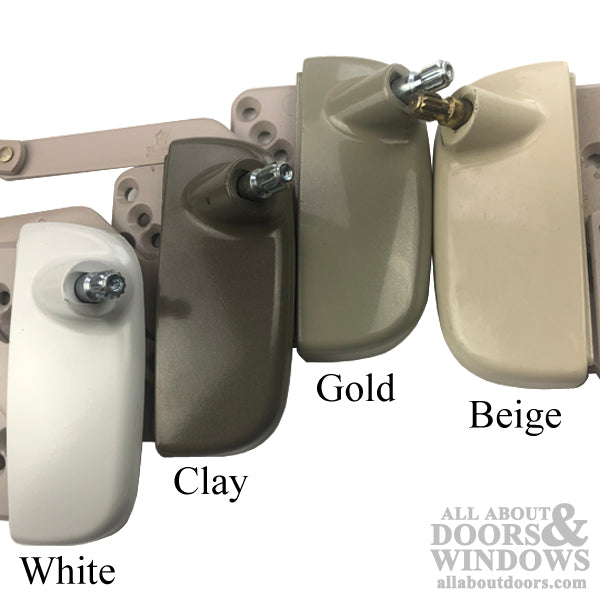

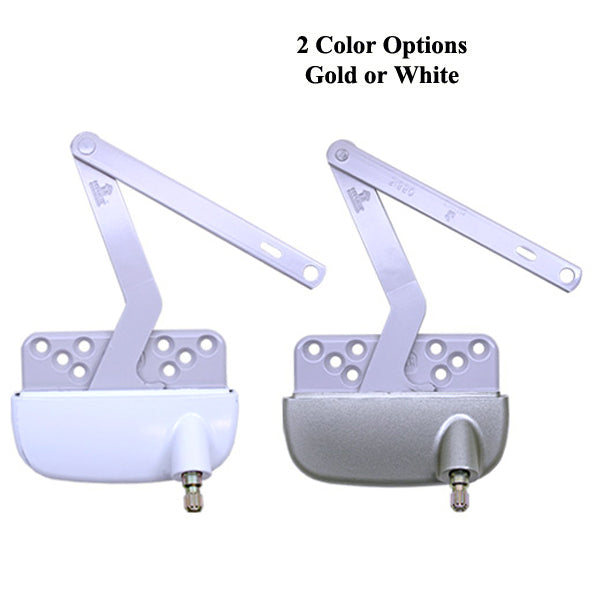

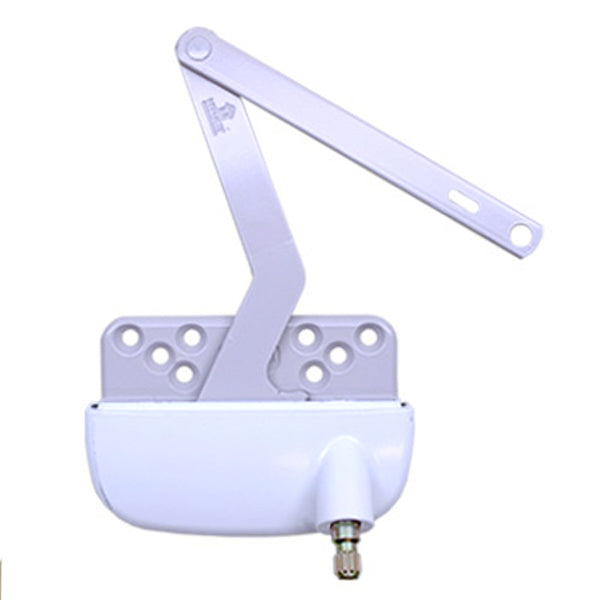

Weathershield casement Roto crank Operator, Offset link, Split Arm, Right Hand - Choose color
Original link was mounted on bottom of main arm and Curved upwards

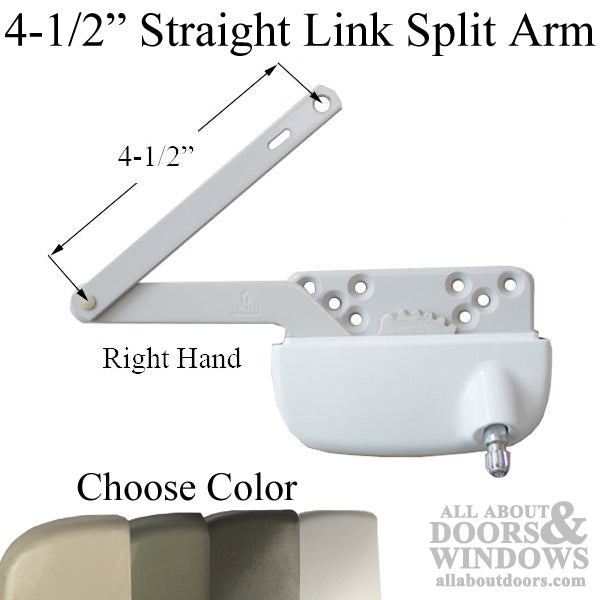

Replacement can be a Straight arm Link mounted on top and is a substitute for the offset link mounted on bottom.

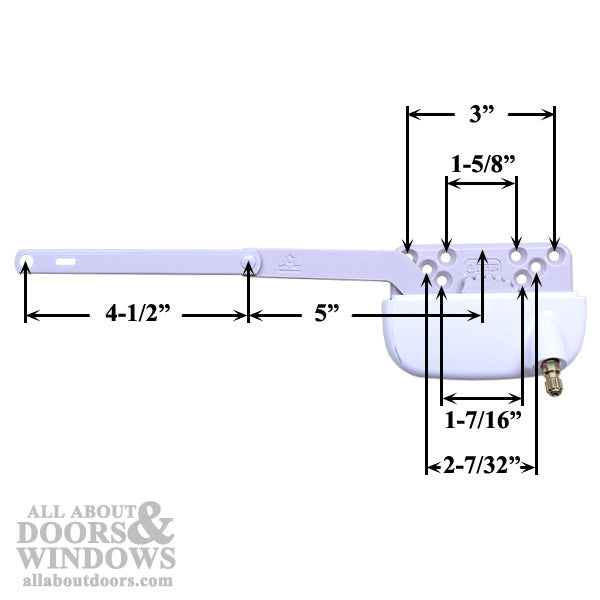

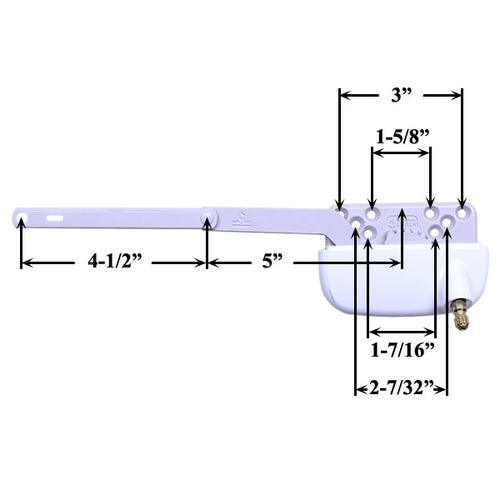

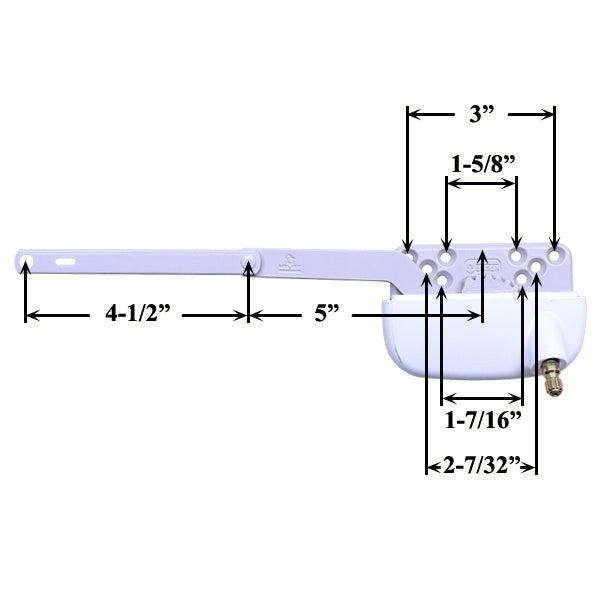

Offset Link: 4.5 inch # 30905 Mounted on bottom of main arm. ( Measured from center of rivet to center hole)
Link Length: 5 inches overall
Truth Part Numbers on some crank mechanisms: Main Body #45035, Main arm # 40351 RH / # 40352 LH Link # 30905, truth Mounting Bracket # 40448
Handle is NOT included.
Related Parts:
55083 - Left hand Replacement Operator
55084 - Right hand Replacement Operator
Crank Handles:
55311 Regular Handle
55312 Folding handle
55313 T-Handle
55317 Contour Handle
