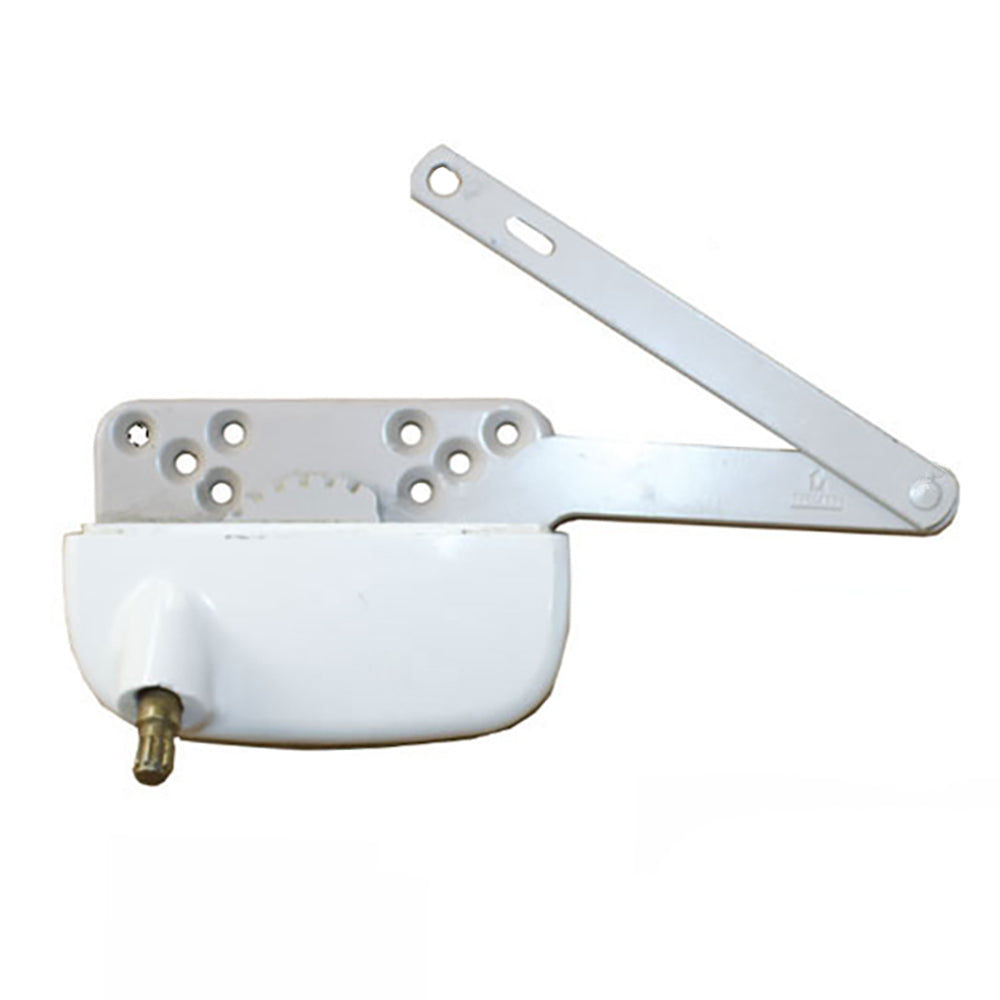

Truth 15.30 Ellipse Split Arm operator with Straight arm for wood or vinyl windows
Used by many window companies including Weather Shield on their Visions 2000 vinyl casement window.

Application: Casement windows, Sill Mount

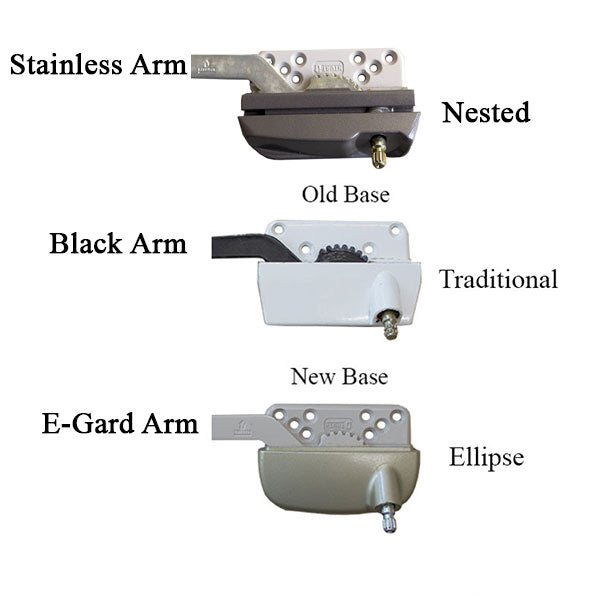

Operator Style: Ellipse
Window Type: Wood or Vinyl

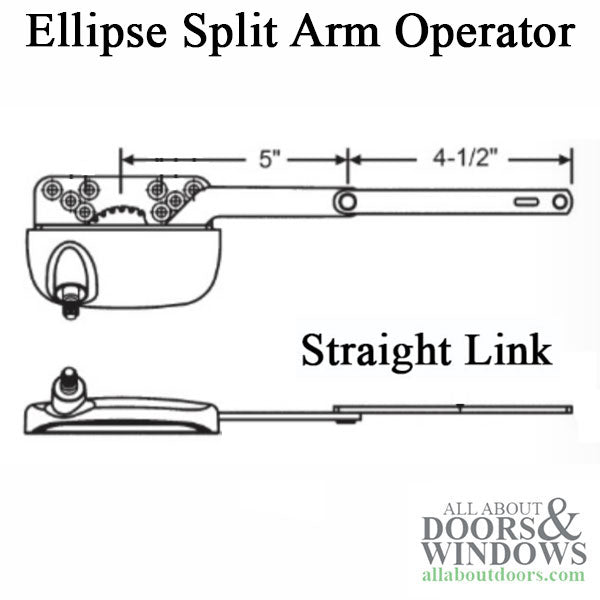

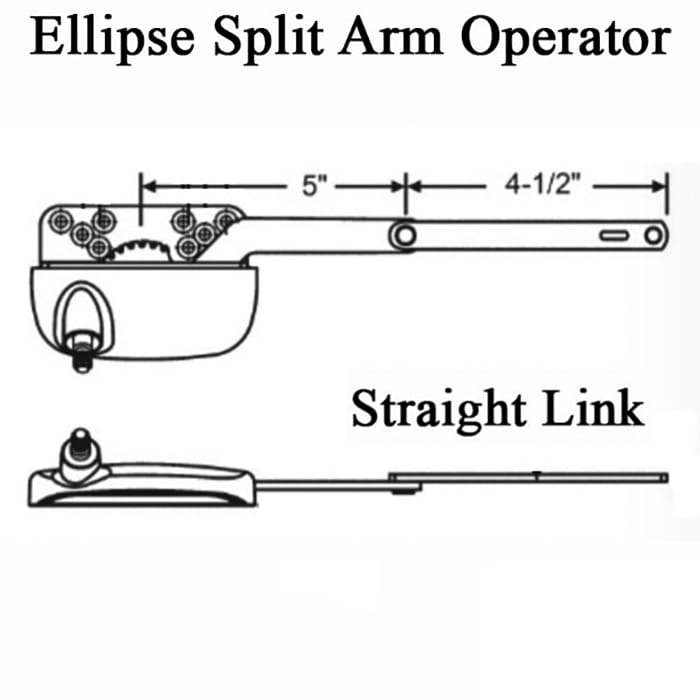

Operator Type: Split Arm with Straight link
Arm Length: 5 inch

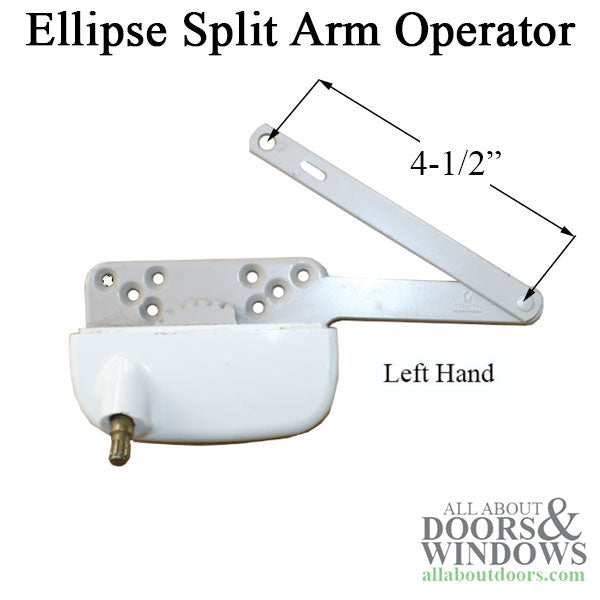

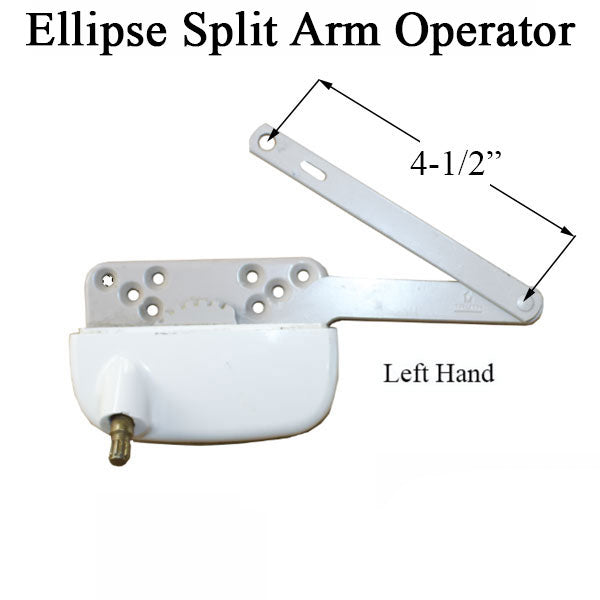

Link Length: Rivet to Stud post Hole: 4-1/2 inch
Link Mount: Mounted on Top of main arm
Detach clip: None

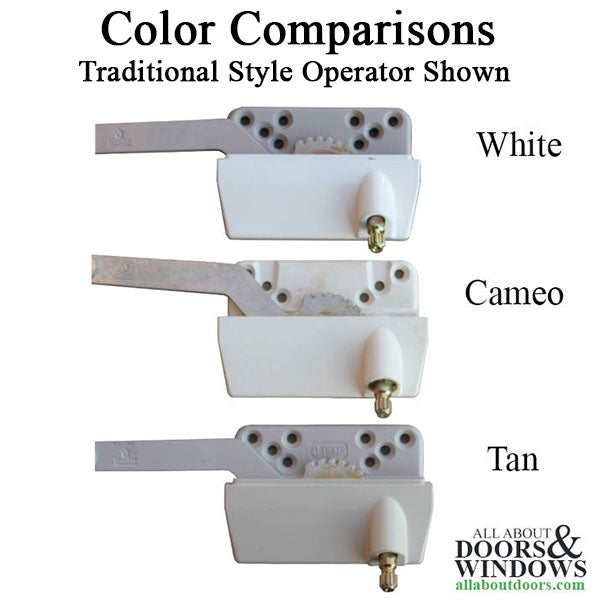

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown

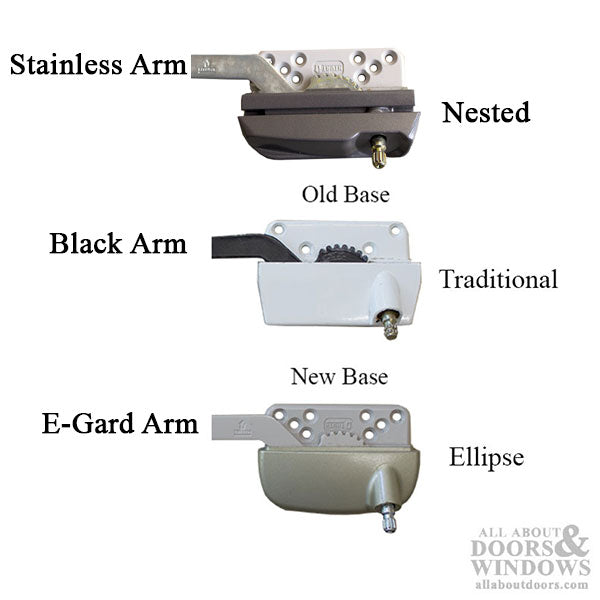

Material: Zinc Die Cast Body with E-Gard or stainless steel arms
Markings: Main Body, Truth # 45251
Markings on Main Arm: # 40351
Markings: Straight Arm link, Truth # 31850

Sold Each, No screws or crank handle

Note 1: There are 4 Arm / Link configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

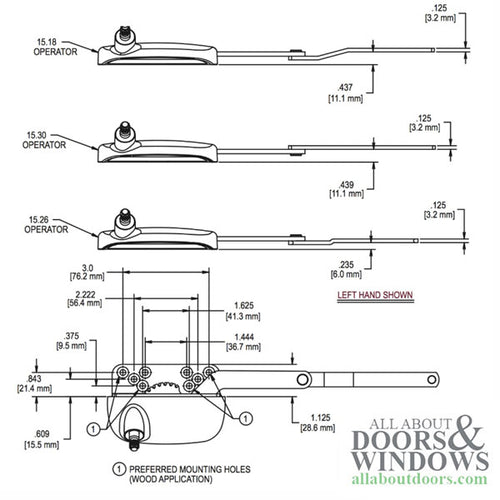

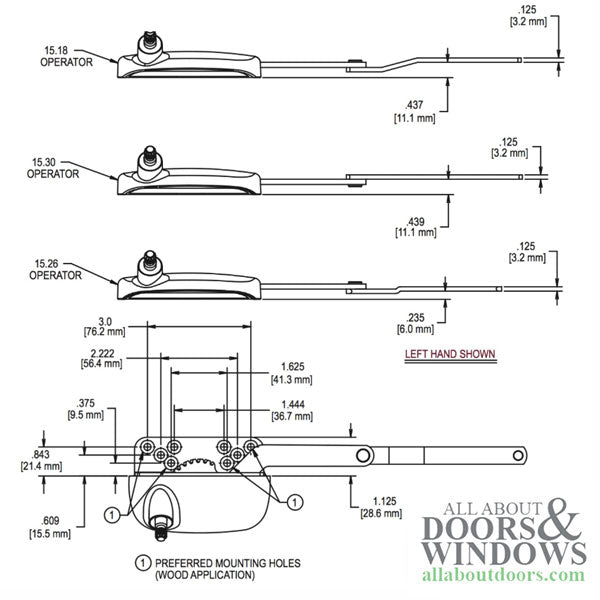

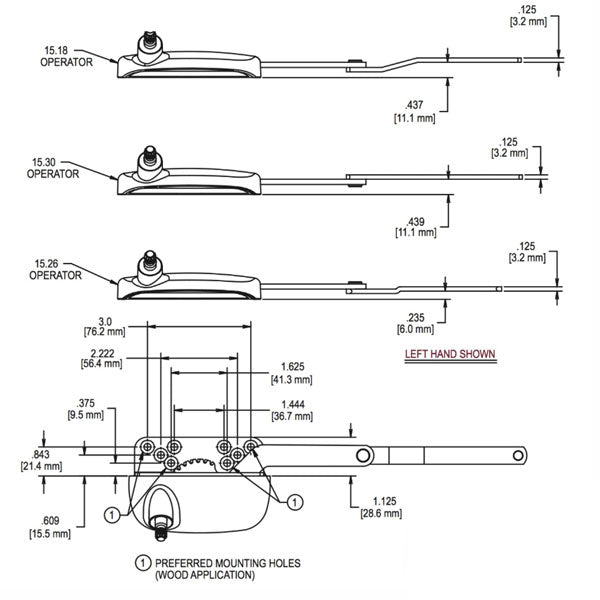

NOTE 2: See additional Pictures for line drawings

Related Parts:
55311 - Standard Crank Handle
55317 -Contour crank Handle
55312 Folding handle
55313 T-Handle
