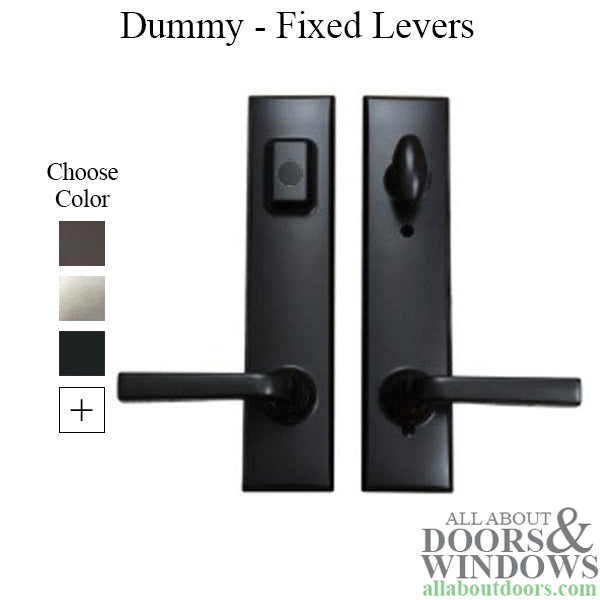

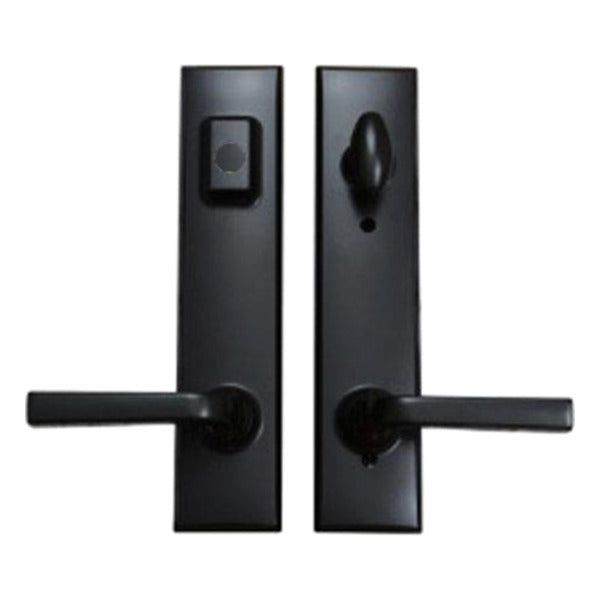

Trilennium Dummy Handleset Trim with Fixed Levers and Fixed T-Turn Drive works with the Trilennium 3000 series Inactive Panel

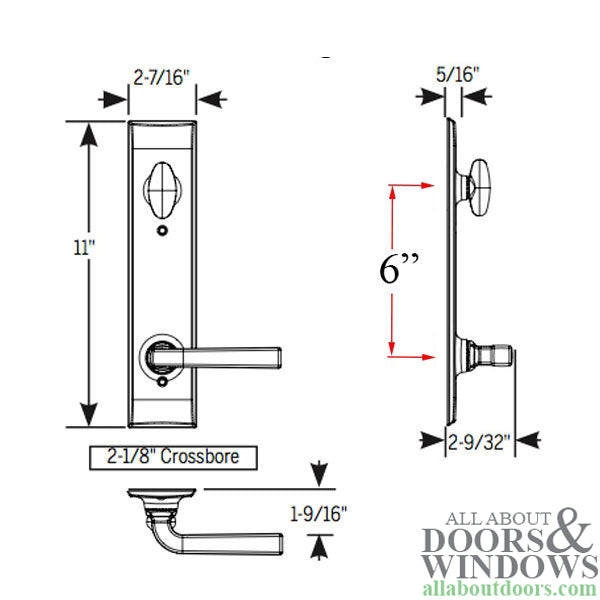

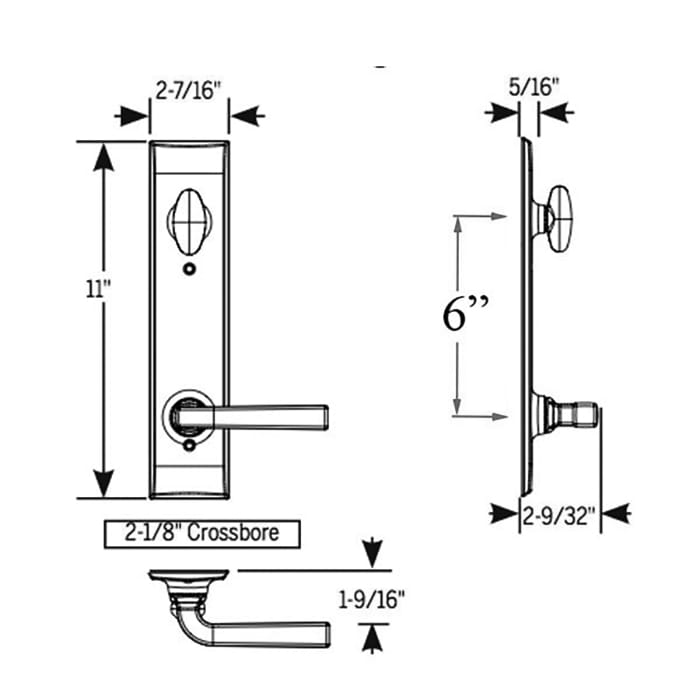

Handle to Cylinder Spacing: 6 inch   (152.4mm)
Door Thickness: 1-3/4 inch  (45mm)
Escutcheon Plate Width: 2-7/16 inch   (61.9mm)
Escutcheon Plate Length: 10 inch (254mm)
Crossbore: 1-11/16 or 2-1/8 inch
Screw Hole Spacing: 5-3/8 inch
Note 1:
Standard crossbore on most W&F or Endura hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handlesets are only 2 inches wide and will not cover the larger holes.
Pella Entry Door Cross Bore: 2-1/8 inch Standard
Peachtree lPD Cross Bore: 1-11/16 inch Standard

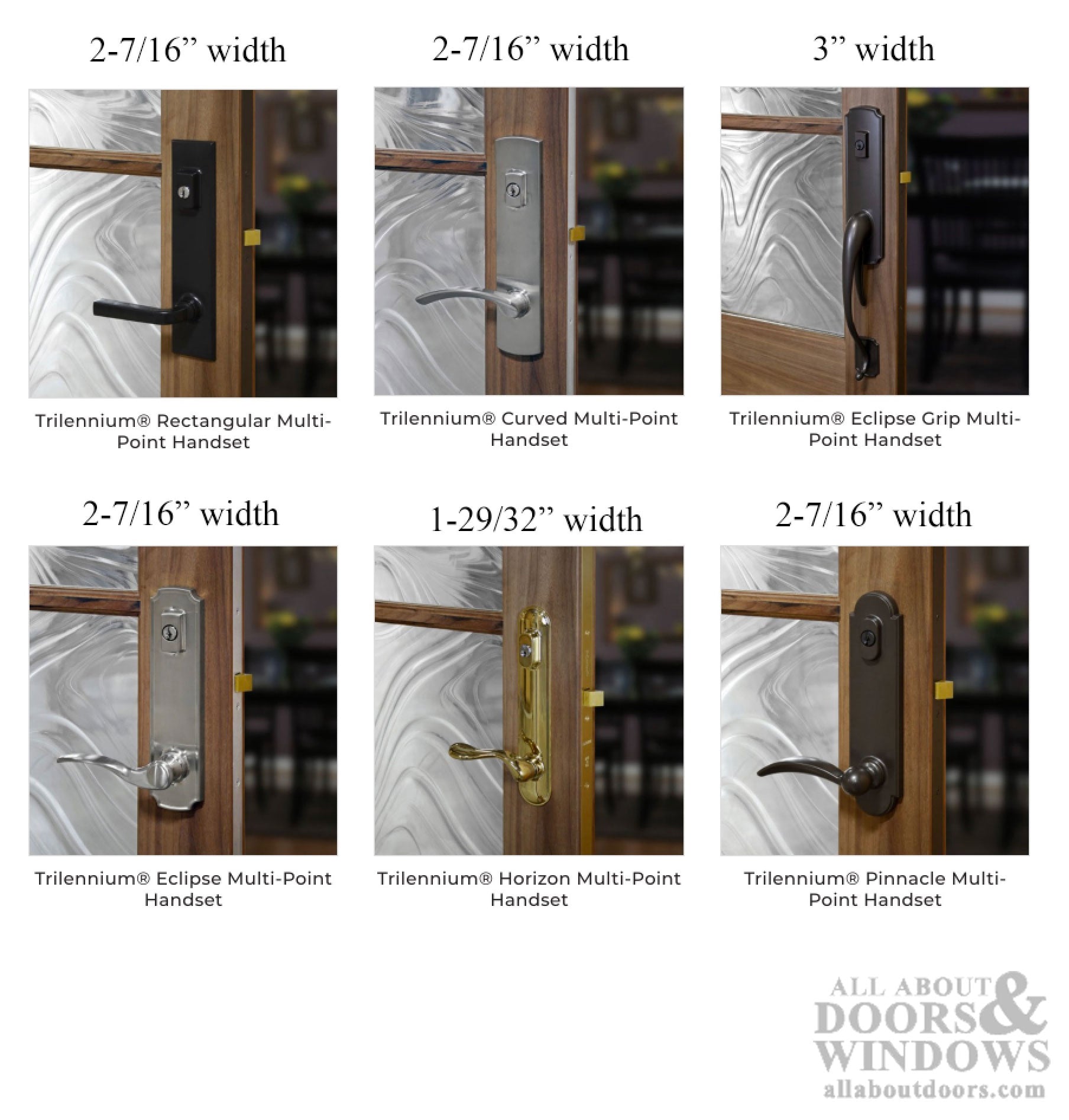

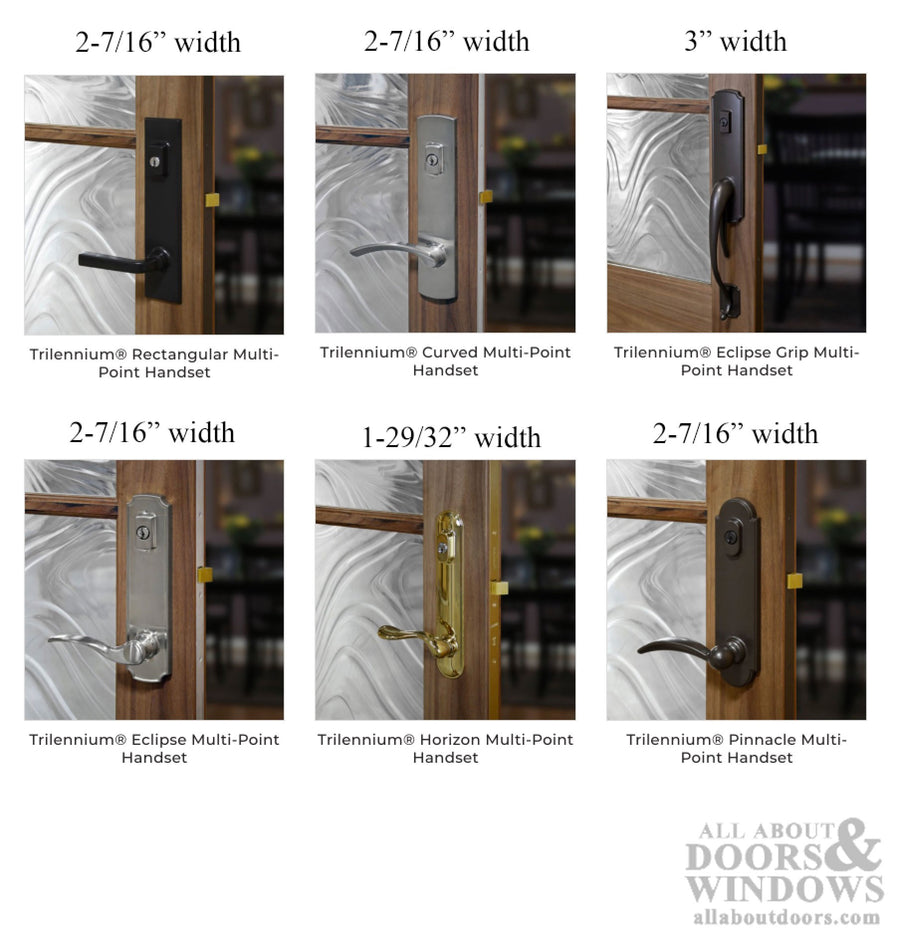

Handleset Trim for 2-1/8 inch Cross Bore: Pinnacle, Eclipse, Rectangular & Grip Hardware.
Handleset Trim for 1-11/16 Cross Bore: The full W&F line including Horizon and Some Emtek with 2 inch wide plates.
Note 2:
Satin Nickel Finish is available as standard Plated or TriLast® which resists tarnishing and discoloration.
