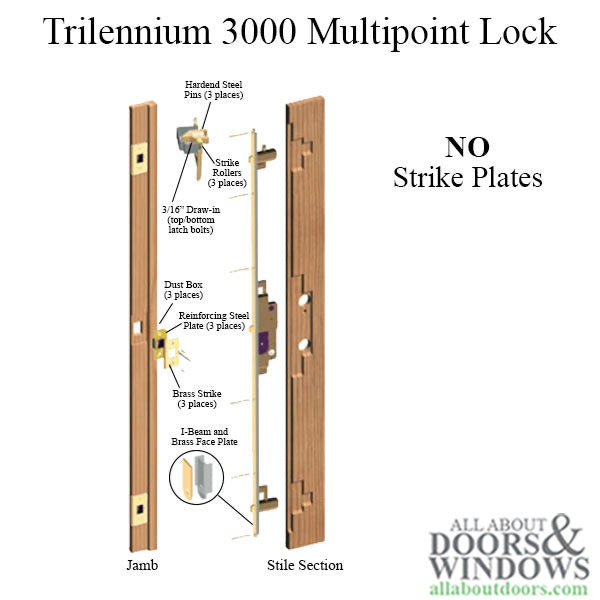

Trilennium 3000 series Multi-Point Lock with looking Latch Bolts - Multi-point lock Only

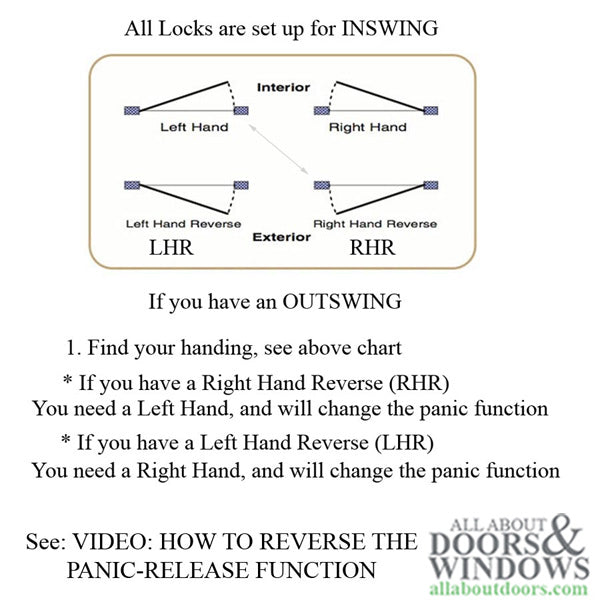

IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be checked before installation. See addtional information below

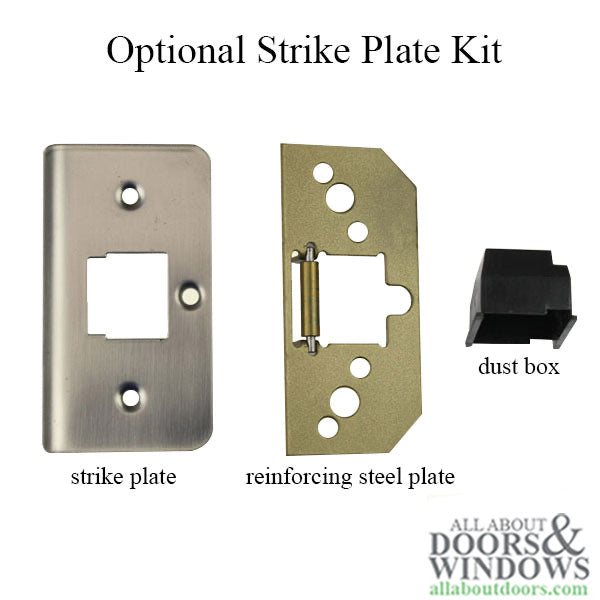

Optional strike kit and accessories not included, ordered separately

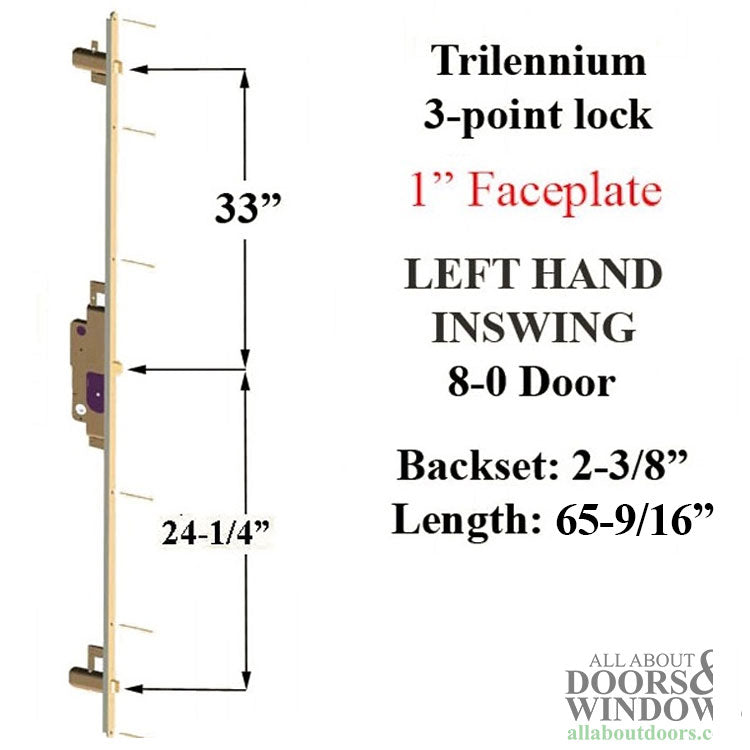

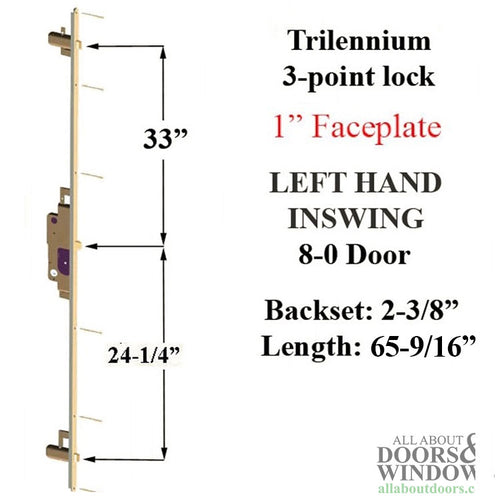

Lock Measurements:
Backset: 2-3/8 (60 mm)
Faceplate Width: 1 inch (25.4 mm)
Faceplate Length: 65-1/2 inch (1410 mm) Radius ends
Faceplate Color: 3 Finishes; Polished Brass, Victorian Bronze, Stainless Steel
Deadbolt Throw: 15/16 inch
Top Latching Bolt: 33 inch (measured from center bolt)
Bottom Latching Bolt: 24-1/4 inch (measured from center bolt)
Spindle Diameter: 1/4 inch ( 7 mm)
Cylinder Type: American with Flat tail piece, Not included
Country of Origin: Made in USA
Priced and sold each, Lock assembly only, no additional hardware

Handed: Left-handed
Handing As viewed from outside, hinge determines handing - If hinge is on left, it is left hand door.

Operation:
Handle moves down only
To lock - Use key or thumb turn - Extends Latch to Deadbolt function
To unlock - Use Key Outside or Thumb Turn / Lever Inside
Panic Release: Yes, Pressing down on inside handle will unlock door

HARDWARE NOTE:

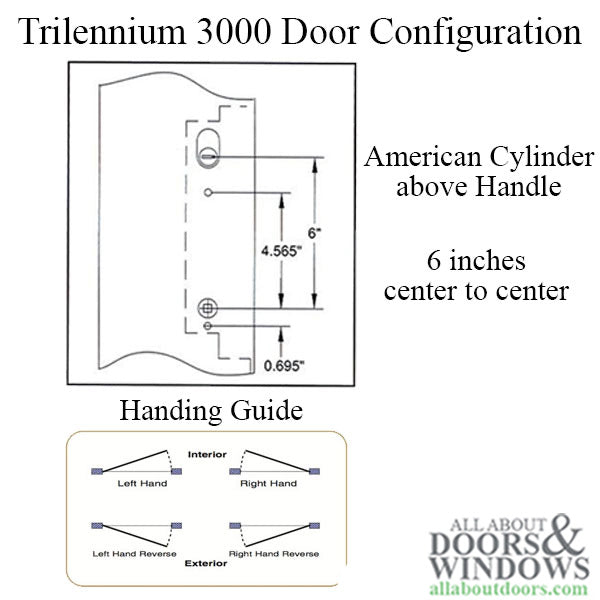

Standard Trilennium Cross Bore: 2-1/8 inch ( use Pinnacle, Eclipse & Grip Hardware)
Optional Crossbore: 1-11/16 ( use Europa, Horizon & Emtek hardware)
The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
