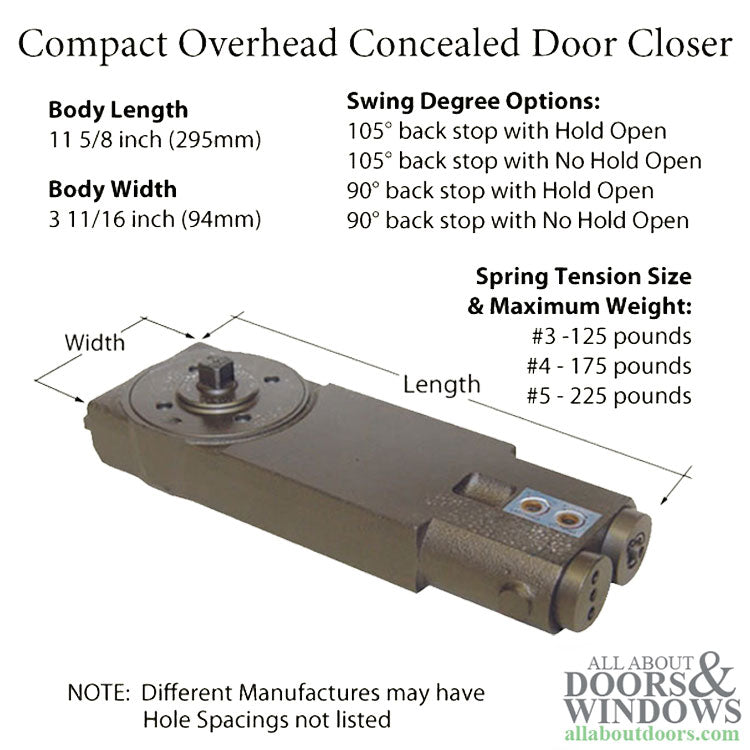

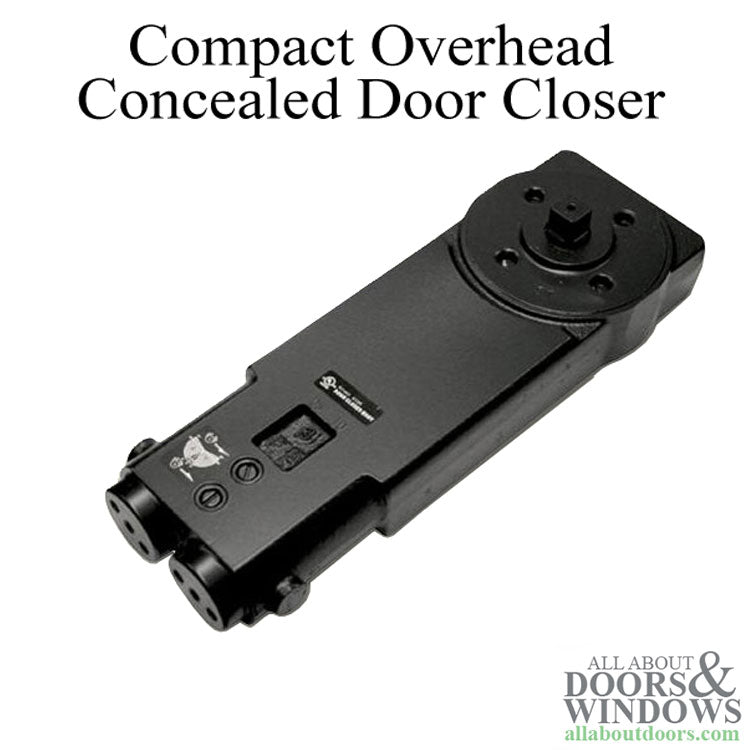

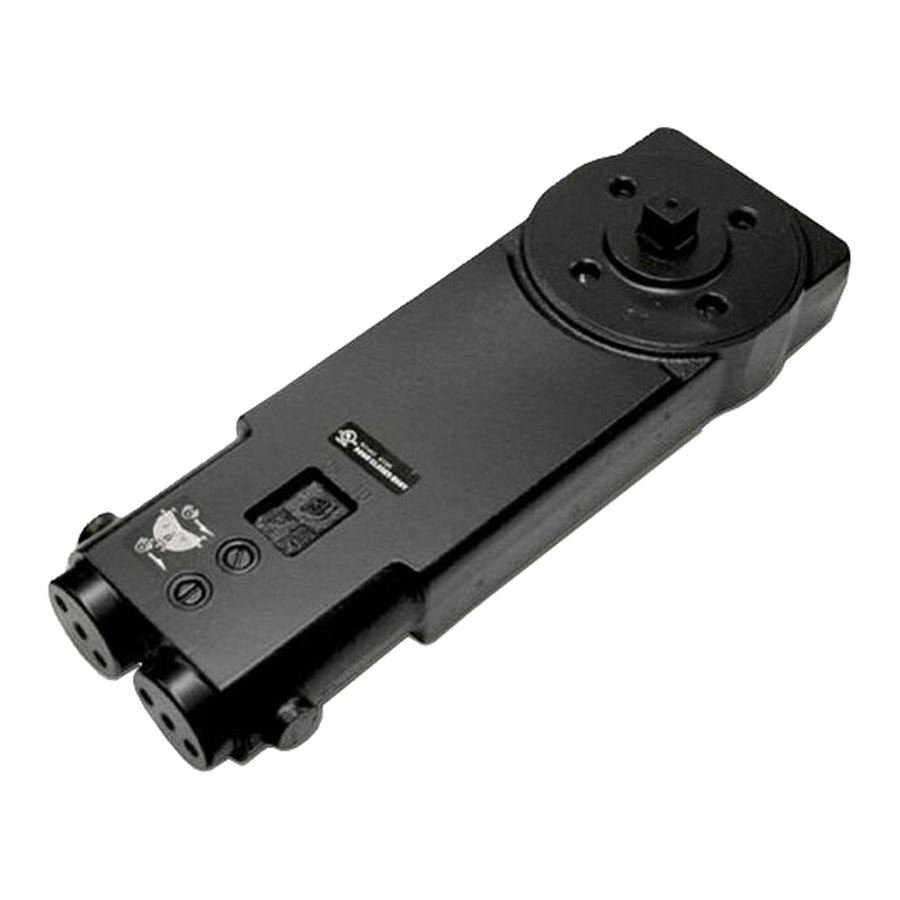

TC7000 SERIES Overhead Concealed Closer - Light Duty Spring Tension Back Stop w/HO at 105° Back

This compact designed door closer offers an excellent "hidden" solution.
It is center-pivoted for single and double acting doors.
This model is recommend for aluminum door and frame applications.
The closure speed is assured every time with its temperature-sensitive hydraulic fluid.

Spring Tension Size Options:
Light Duty - #3
Medium Duty - #4
Heavy Duty - #5

Maximum Door Size and Weight:
#3 - 36" interior / 30" exterior (125 lbs.)
#4 - 44" interior / 36" exterior (175 lbs.)
#5 - 48" interior / 42" exterior (225 lbs.)

Swing Degree Options:
105° back stop with Hold Open
105° back stop with No Hold Open
90° back stop with Hold Open
90° back stop with No Hold Open

Related Parts: (sold separately)
381101 - Side Load Arm
381102 - End Load Arm
381103 - K-Type Arm
381104 - Offset Arm with Track
381105 - Dual Purpose Bottom Pivot Set
381106 - AE Pivot Set
381107 - GE Pivot Set

NOTE: This is a Special Order Item and may take longer to ship.
