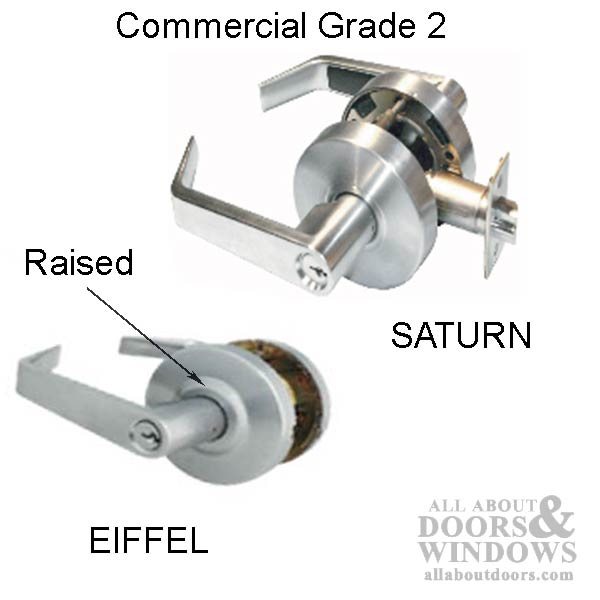

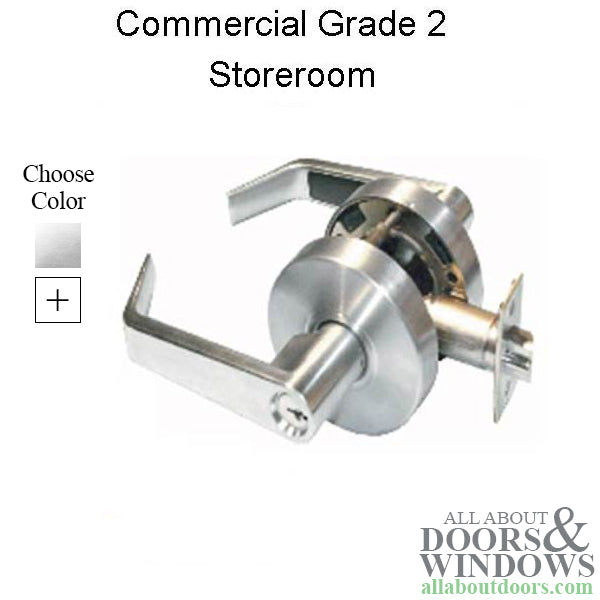

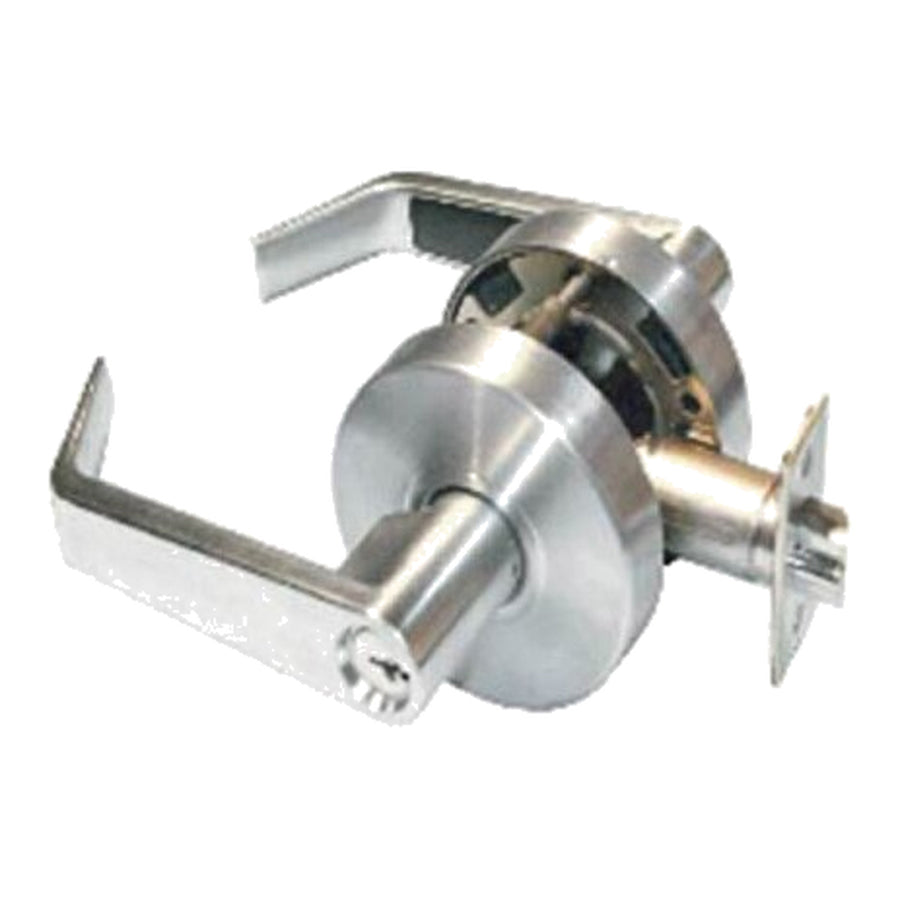

Storeroom Entry Lever, areas you need always locked - Grade 2, Standard Commercial Duty
Certification: UL listed ANSI A156.2 Grade 2
• Door Thickness: 1-3⁄4 - 2 inch ( 45mm-50mm)

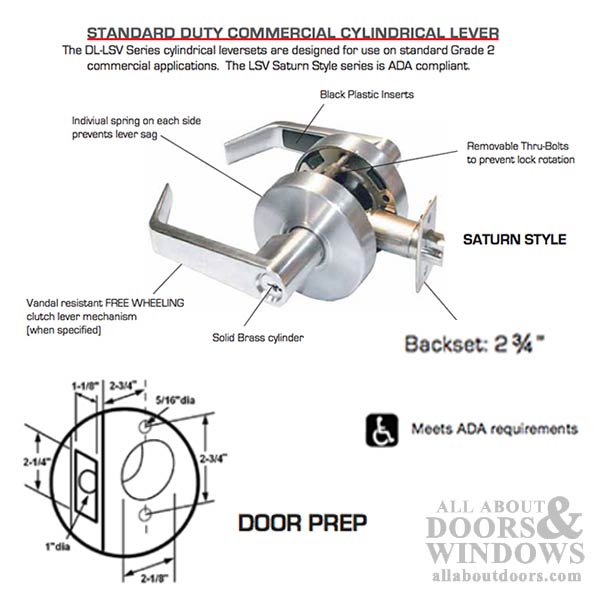

• Backset: 2-3⁄4 inch (70mm)
• Cylinder: Schlage “C” keyway
• Keying: Schlage 6 pin keyed
• Key: 2 six pin Nickel Plated
• Functions: Storeroom
A storeroom function always requires a key to retract the latch and enter the room. The inside lever always remains unlocked, allows free egress.
• Latch: 1⁄2 inch projection Stainless Steel Face:1-1⁄8” x 2-1⁄4” (Optional 3 hour UL Rated)
• Bore: 2-1⁄8” hole retrofits all cylindrical locksets
• Fits 161 Prep doors
• Strike: ANSI 11⁄4” x 47⁄8” strike
• Removable Thru-Bolts
• Non-handed / reversible
• Warranty: Lifetime mechanical. 10 year finish.
• Finishes: US3 Polished Brass, US10B Oil Rubbed Bronze, US26D Brushed Chrome
