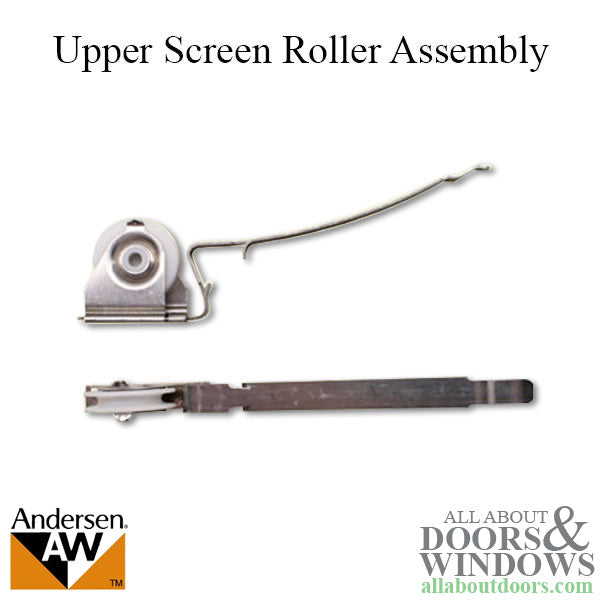

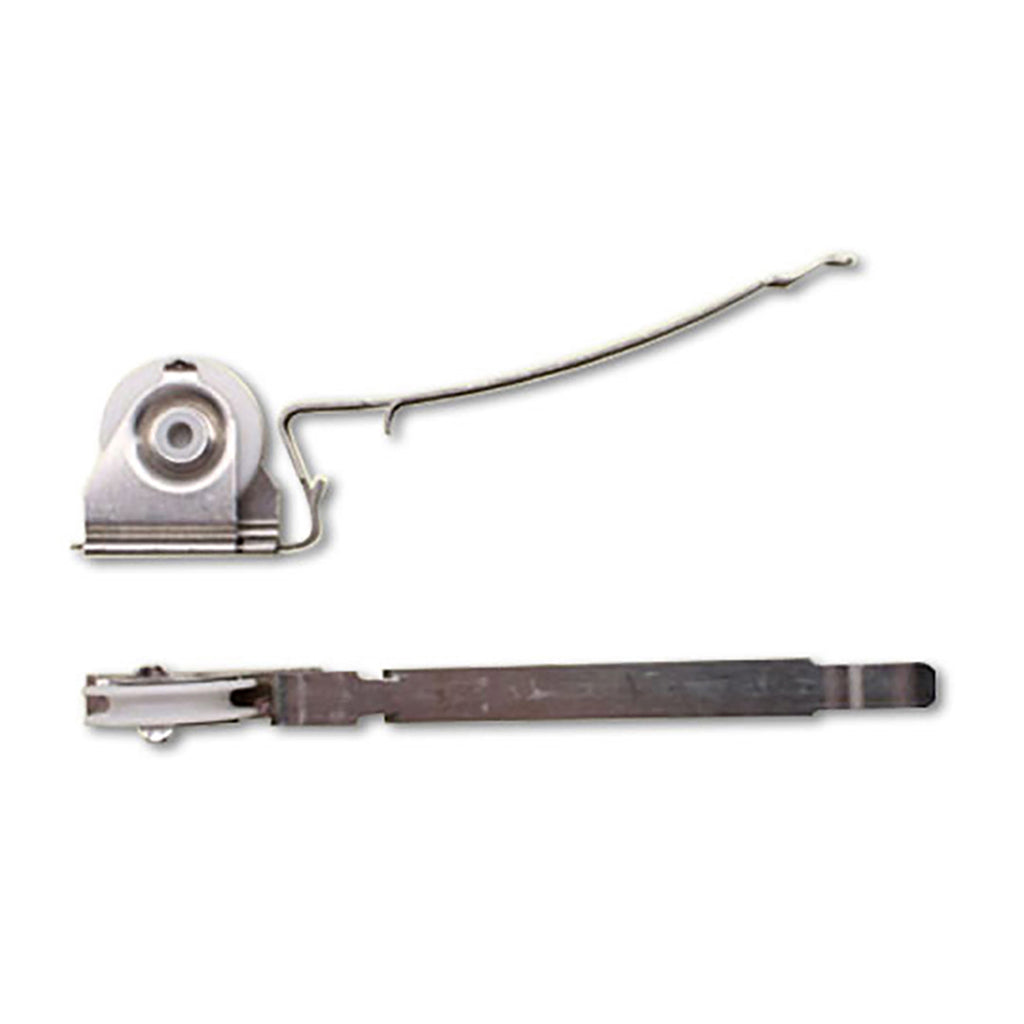

Insect screen top roller assembly for Andersen Window gliding Frenchwood door.
Used on 2 and 3 panel doors from 1991 to present.
Features a metal housing with a nylon concave wheel.
This upper roller can be used to replace your old gliding screen door rollers to help improve the ease of opening and closing the door.

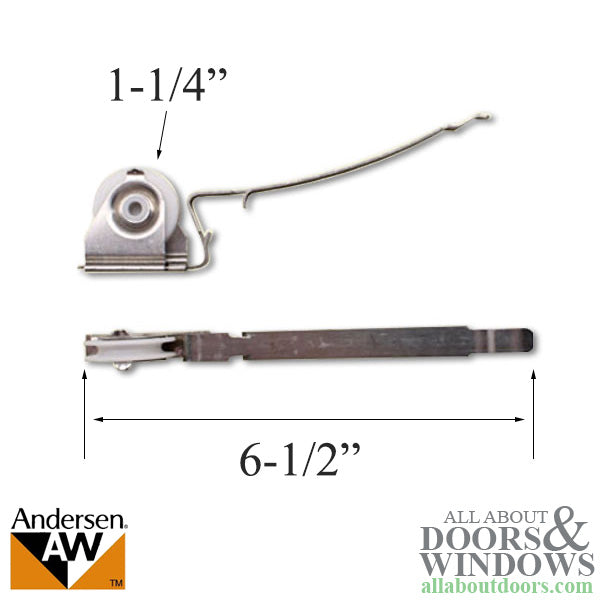

Nylon Roller: 1-1/4 inch
Overall Length: 6-1/2 inch
To Remove Old Roller:
The roller assembly has to slide forward towards edge of screen and pry up with flat screwdriver at same time.
The roller housing has two tabs that lock under the frame to hold in place, they prevent the roller from coming straight up.
The back of the spring locks into the frame.
Priced and sold Each
Related Parts:
1997310 Andersen Lower Screen Door Assembly
1274104 Andersen Lower Screen Door Assembly
Used on 2 and 3 panel doors from 1991 to present.
Features a metal housing with a nylon concave wheel.
This upper roller can be used to replace your old gliding screen door rollers to help improve the ease of opening and closing the door.
Nylon Roller: 1-1/4 inch
Overall Length: 6-1/2 inch
To Remove Old Roller:
The roller assembly has to slide forward towards edge of screen and pry up with flat screwdriver at same time.
The roller housing has two tabs that lock under the frame to hold in place, they prevent the roller from coming straight up.
The back of the spring locks into the frame.
Priced and sold Each
Related Parts:
1997310 Andersen Lower Screen Door Assembly
1274104 Andersen Lower Screen Door Assembly
