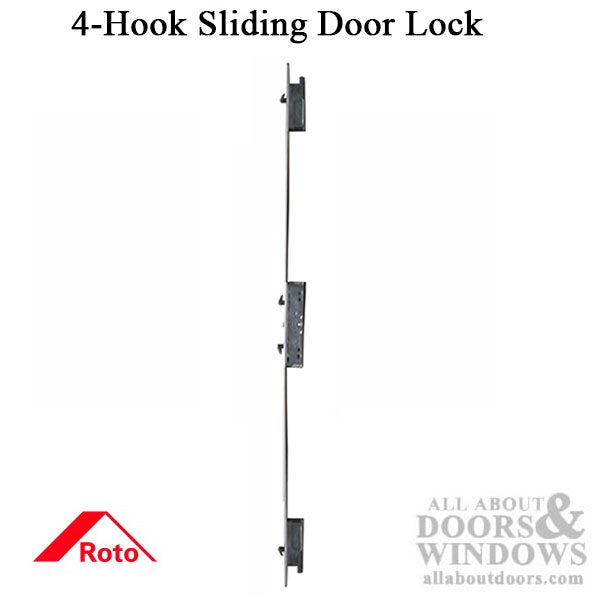

Roto Multipoint sliding door lock with four (4) hooks
Application: Sliding Patio Door
Function: 4-Point Hook

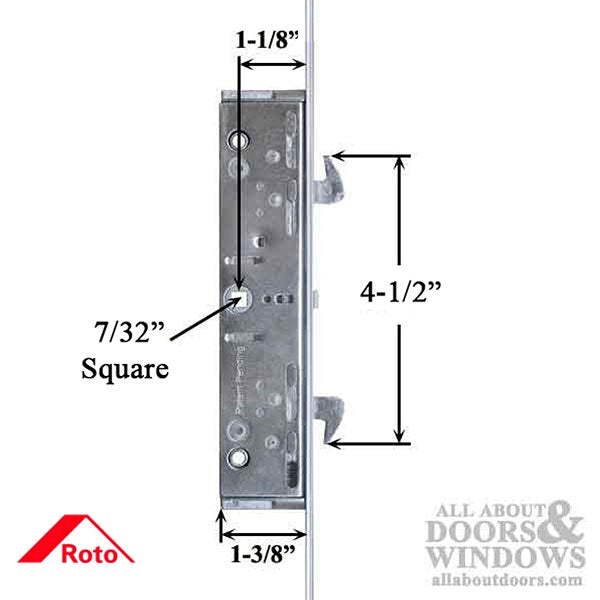

Backset: 1-1/8 inch (28mm)
Face Plate Width: 11/16 (17mm)

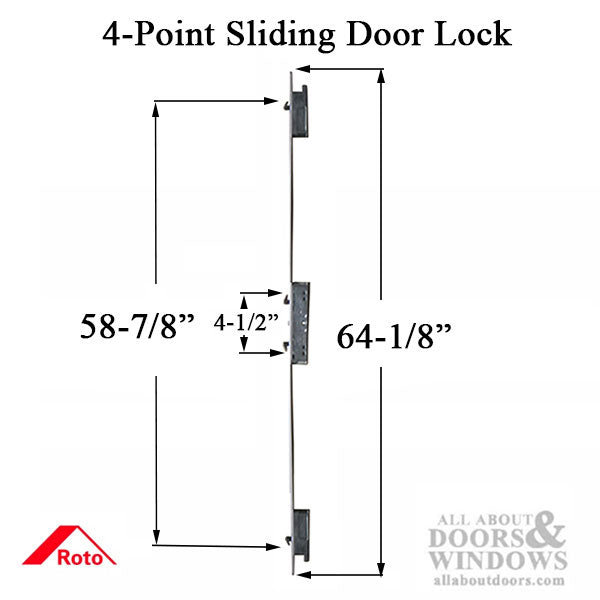

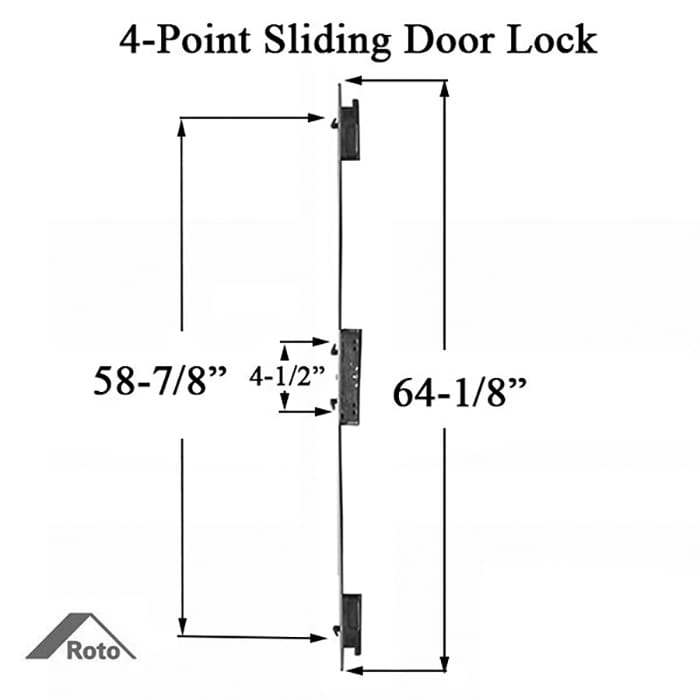

Overall Length: 64-1/8 inch ( 1,628.77mm)
Center Hooks Spacing T-T: 4-1/2 inch (114.3mm)
Top Hook to Bottom Hook T-T: 58-7/8 inch ( 1,495.4mm)
Spindle Hub: 7/32 (6mm)
<style type="text/css">
p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Times New Roman'}
p.p2 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Times New Roman'; min-height: 15.0px}
</style>
<p class="p1"><font size="3">Roto Multipoint sliding door lock with four (4) hooks</font></p>
<p class="p2"><font size="3"><br></font></p>
<p class="p1"><font size="3">Application: Sliding Patio Door</font></p>
<p class="p1"><font size="3">Function: 4-Point Hook<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Backset: 1-1/8 inch (28mm)<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Face Plate Width: 11/16 (17mm)<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Overall Length: 64-1/8 inch ( 1,628.77mm)</font></p>
<p class="p1"><font size="3">Center Hooks Spacing T-T: 4-1/2 inch<span class="Apple-converted-space"> </span>(114.3mm)</font></p>
<p class="p1"><font size="3">Top Hook to Bottom Hook T-T: 58-7/8 inch ( 1,495.4mm)<span class="Apple-converted-space"> </span></font></p>
<p class="p1"><font size="3">Spindle Hub: 7/32 (6mm)</font></p>
