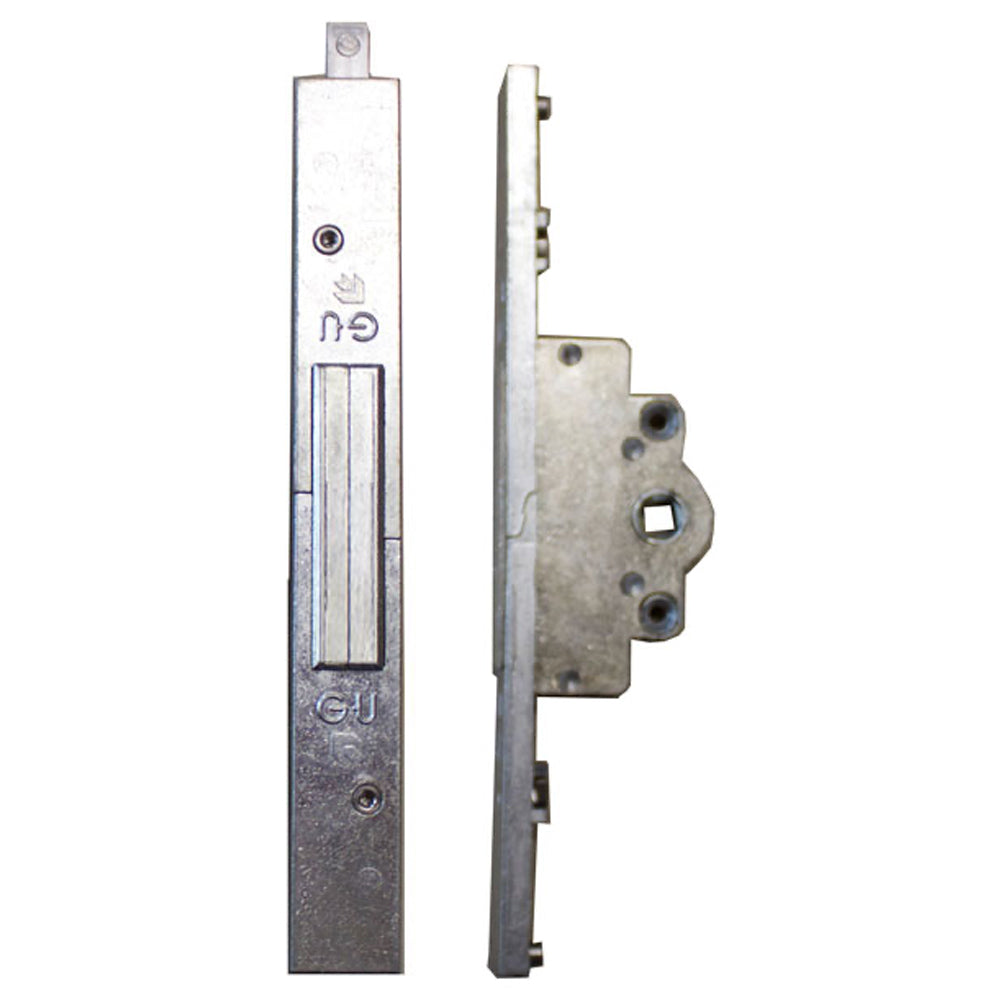

Roller Version Mortise Lock Gear for 180° Lever, 1-3/8 Backset

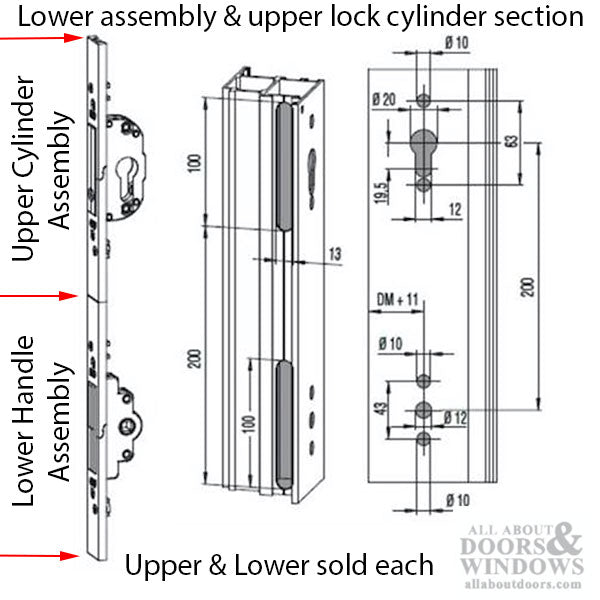

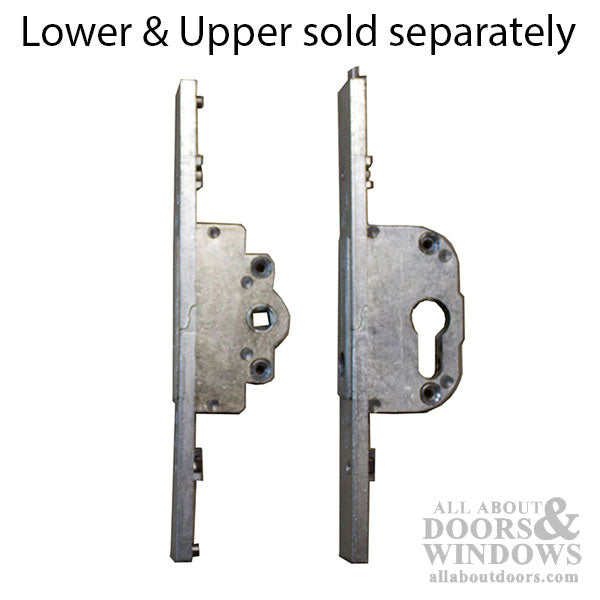

Part Number: 6-25916-35-0-FG Price: $74.02Lower Assembly used with upper Lock cylinder section.
The handle has 90 degree rotation (down only) or has 180 degree rotation (rotates up and down).
Application: Side Hung and Tilt Sash
As long as the application is NOT for a tilt-turn or First-tilt window the 6-25916-35-0-1 may be used. (Pictures are a Side Hung Sash )
Faceplate Width: 15/16 inch (24mm)Faceplate Height: 7-7/8 inch ( 200mm)

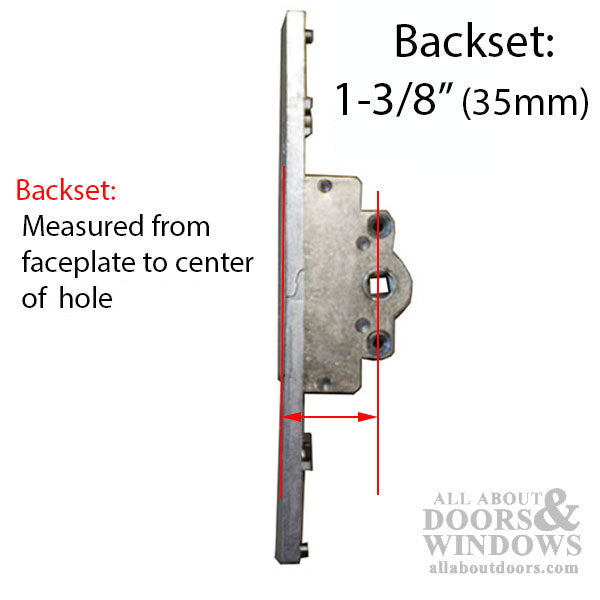

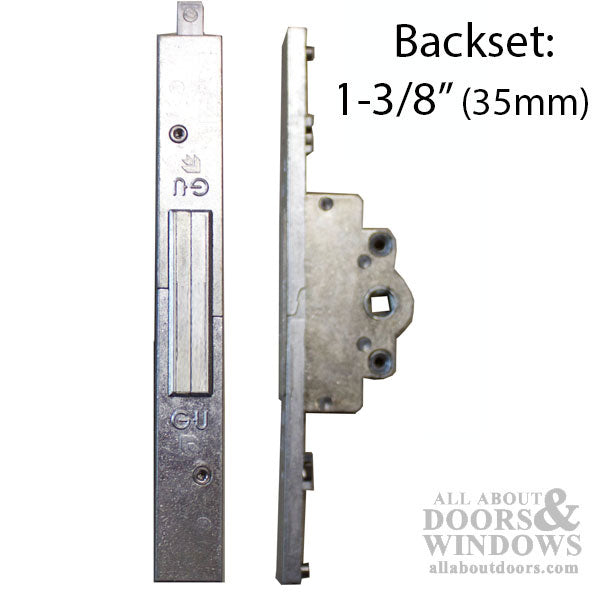

Backset: 1-3/8 inch (35mm)
Available Backsets: 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Related parts:
Gear: G-UStrike Plate - Metra
NOTE: 6-25917-** may replace the 90 degree 6-25948.
However, 6-25917 is capable of 180 degree rotation.
The handle has 90 degree rotation (down only) or has 180 degree rotation (rotates up and down).
Application: Side Hung and Tilt Sash
As long as the application is NOT for a tilt-turn or First-tilt window the 6-25916-35-0-1 may be used. (Pictures are a Side Hung Sash )
Faceplate Width: 15/16 inch (24mm)Faceplate Height: 7-7/8 inch ( 200mm)
Backset: 1-3/8 inch (35mm)
Available Backsets: 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Related parts:
Gear: G-UStrike Plate - Metra
NOTE: 6-25917-** may replace the 90 degree 6-25948.
However, 6-25917 is capable of 180 degree rotation.
