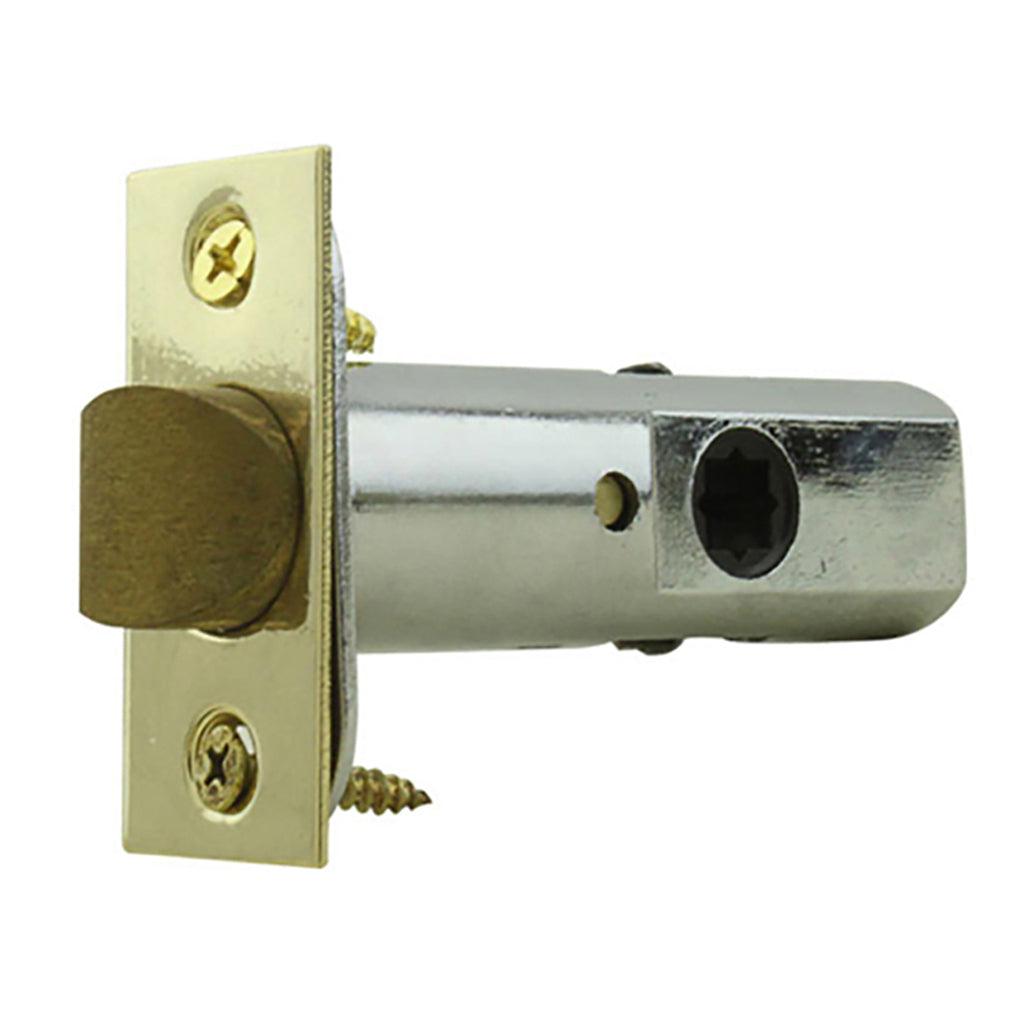

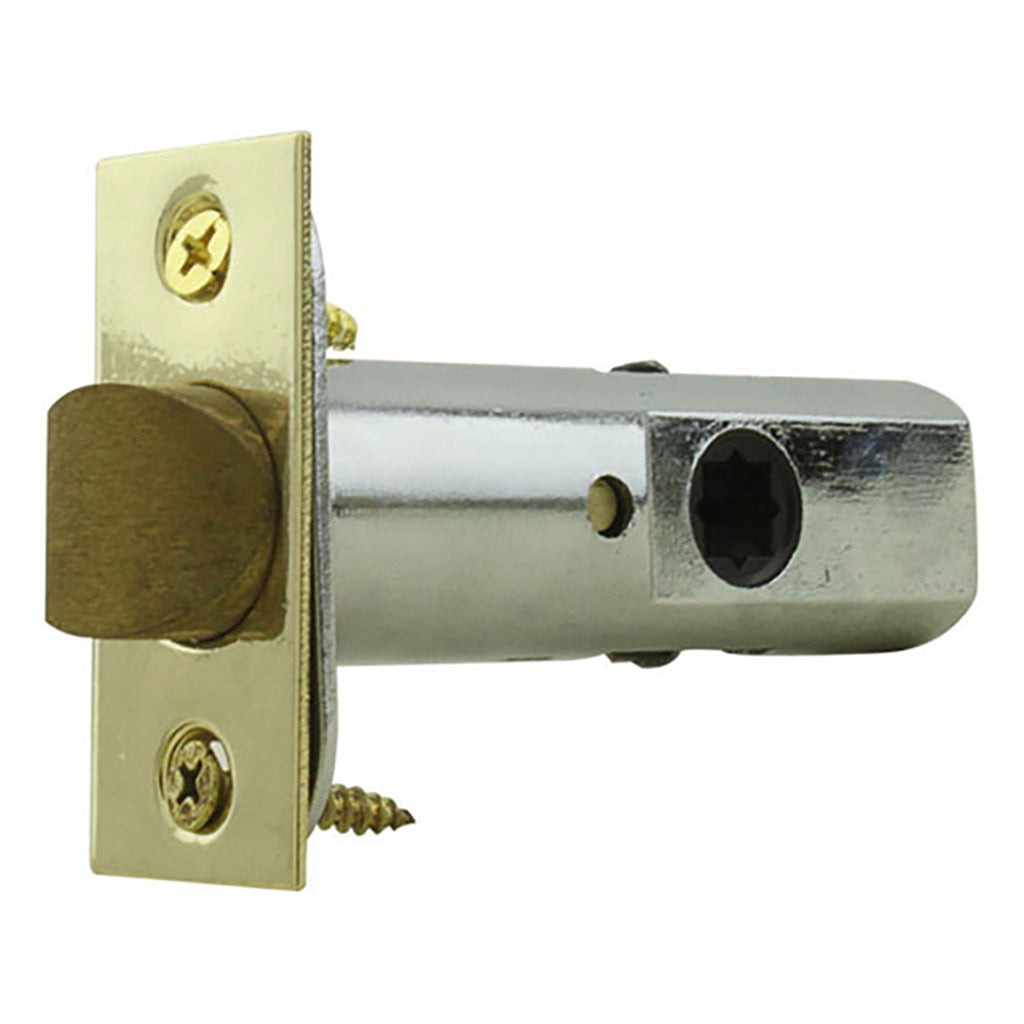

Privacy Lever Latch, 2 inch backset, 5/16" Spindle Hub
Application: Lever on privacy handle set (bed or bath )

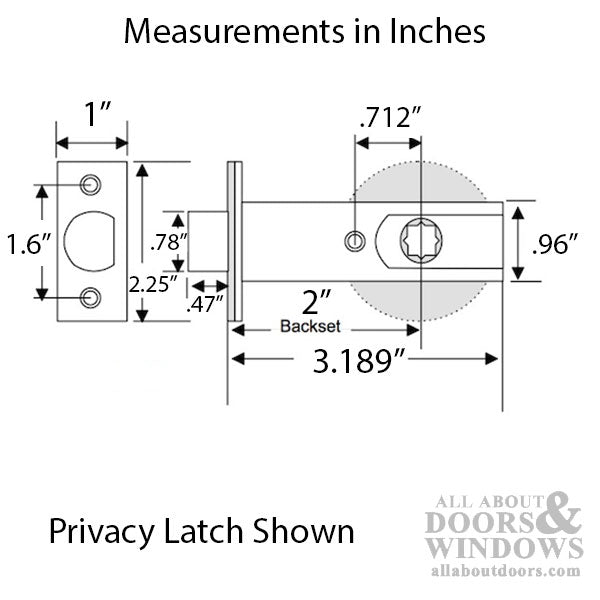

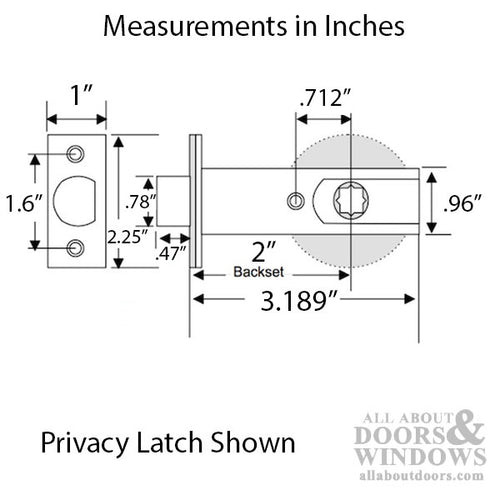

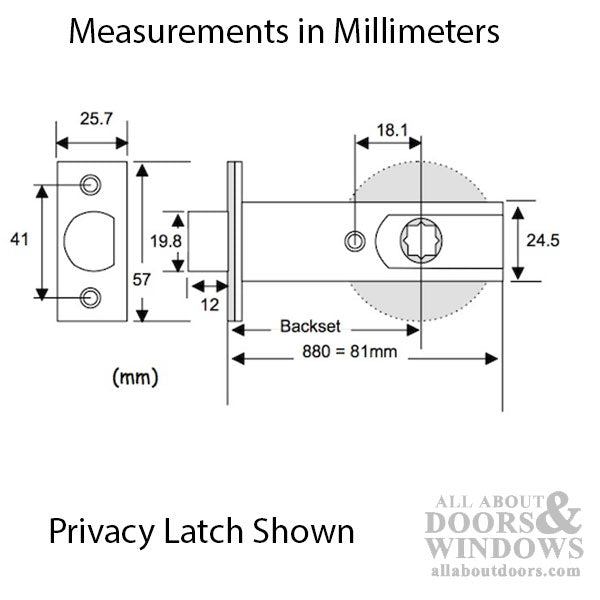

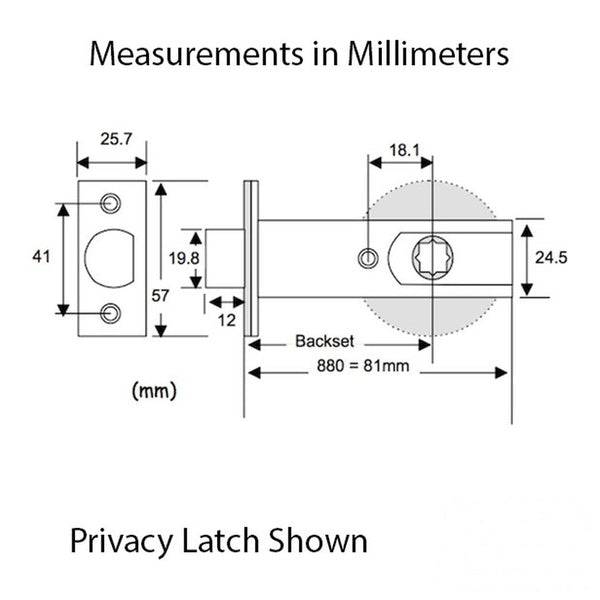

Backset: 2 inch (50mm)
Hub Diameter: 5/16 inch (8mm) square & 9/32 inch (7.3mm) Diamond
Strike Plate: T-Type

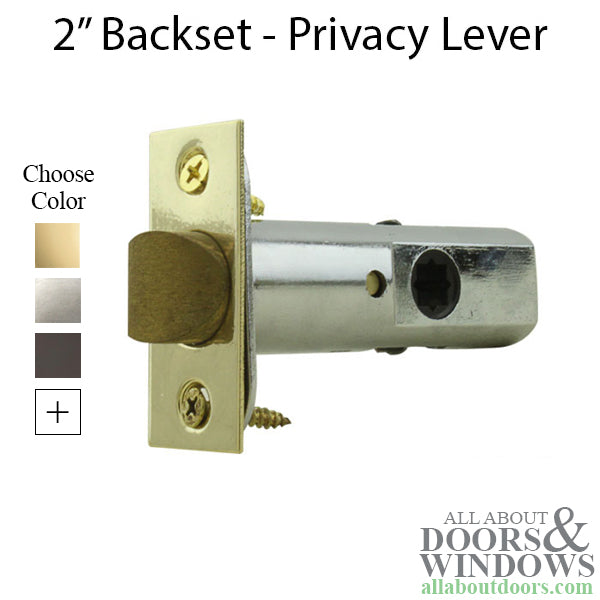

Faceplate Colors: Brass US3, Oil Rubbed Bronze US10B, Satin Nickel
Special Order: US15, Antique Nickel US15A, Antique Brass US5, Bronze US9
NOTE:

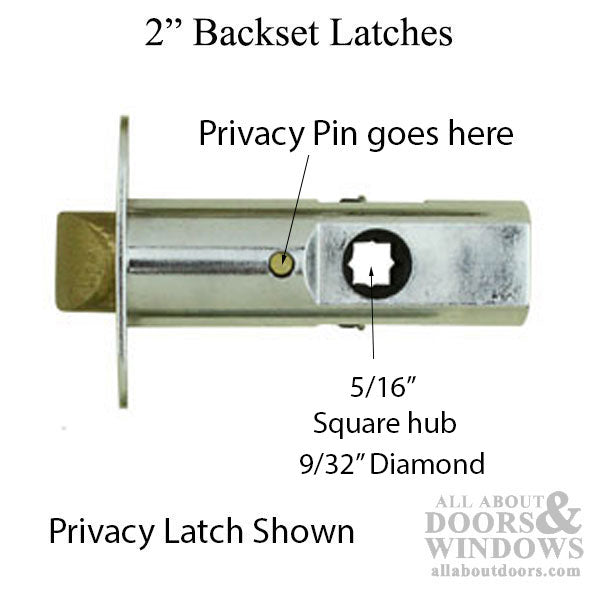

The privacy latch will work for Passage or Privacy when eliminating the Privacy Pin
