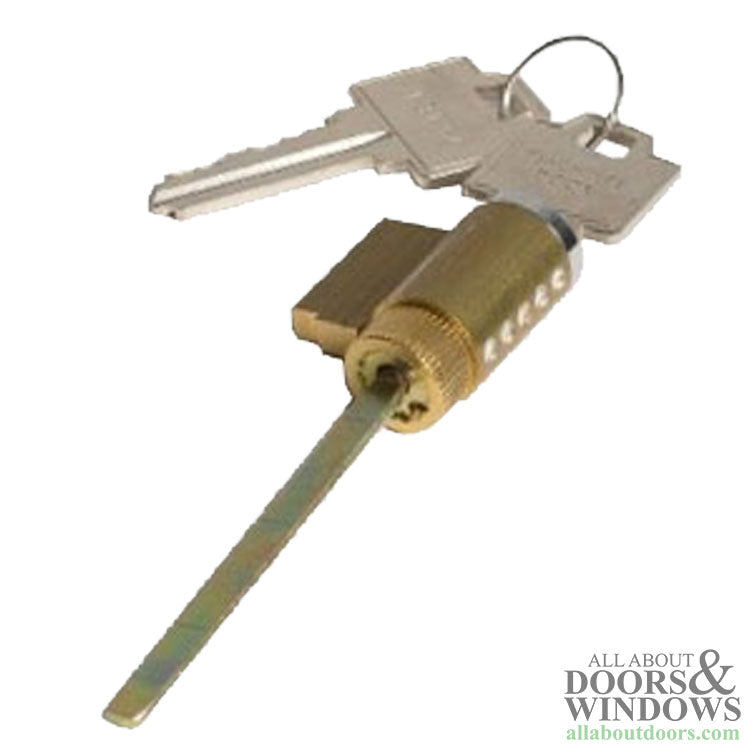

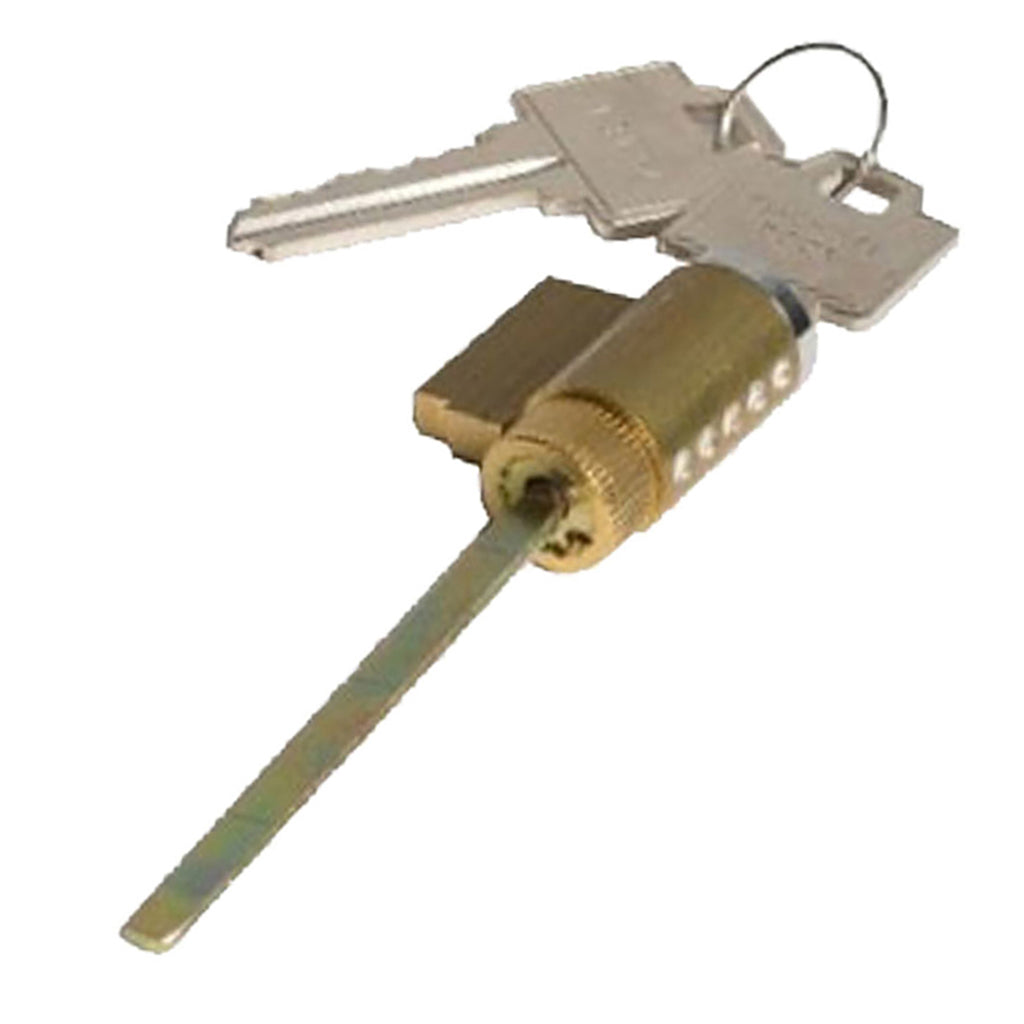

Peachtree Swing & Sliding Patio Door Key Cylinder Kit includes adjustable key cylinder tail shaft / retainer screws and two keys.
Fits Carvel / Citation / Citadel / Ariel patio door handle sets

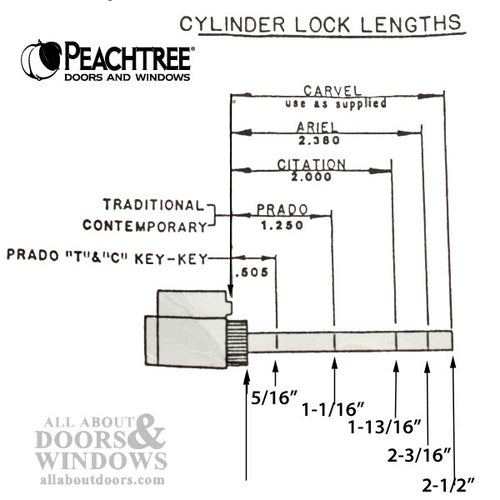

Tail Piece Lengths: As measured from back of Cylinder Housing
Prado T&C Key / Key .505"
Prado T&C Key / Thumb 1.25"
Citation 2.0"
Ariel 2.38"
Carvel 2.68"
Optional: Cylinder only, no Screw or washer Part #
Fits Carvel / Citation / Citadel / Ariel patio door handle sets

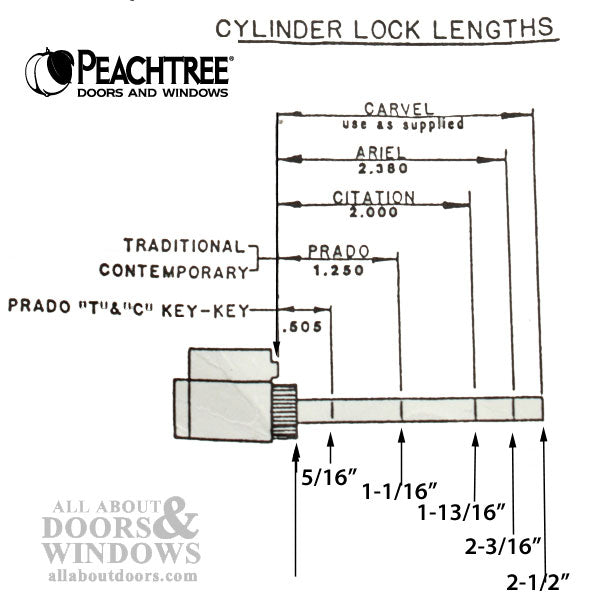

Tail Piece Lengths: As measured from back of Cylinder Housing
Prado T&C Key / Key .505"
Prado T&C Key / Thumb 1.25"
Citation 2.0"
Ariel 2.38"
Carvel 2.68"
Optional: Cylinder only, no Screw or washer Part #
