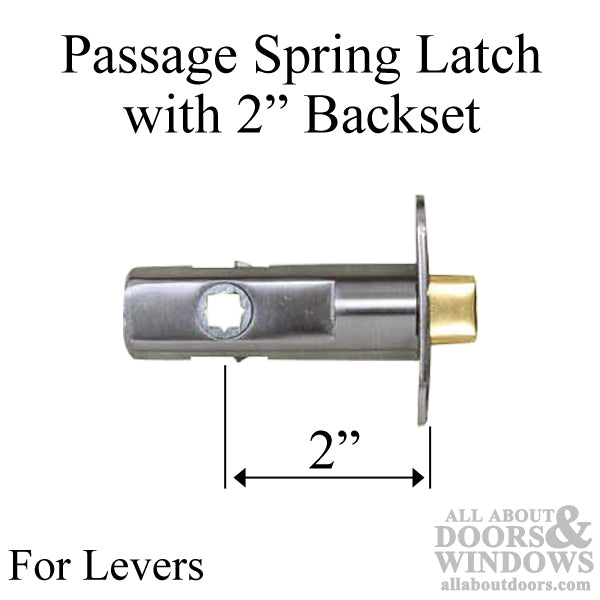

Special Size Passage Latch with 2 Inch Backset for Use with Lever Handles
Hub Diameter: 5/16 inch (8mm)
Latch Diameter: 7/8 inch (22mm)
Backset: 2 inch (50mm)
Overall Length: 2-15/16 inch (without faceplate)
Spring Latch Faceplate Finish: Nickel (chrome/silver)
For use with lever handles in passage situation (non-locking door; typically closet or hallway function)
Please note: this latch does not come with a warranty. If door is not properly hung or aligned, it can put extra stress on the latch and damage it.
Related Parts:
40504 - Curved Passage Lever Handle Set with 2" Backset in Multiple Colors
40505 - Passage Stubby Lever Handle Set with 2" Backset in Multiple Colors
Hub Diameter: 5/16 inch (8mm)
Latch Diameter: 7/8 inch (22mm)
Backset: 2 inch (50mm)
Overall Length: 2-15/16 inch (without faceplate)
Spring Latch Faceplate Finish: Nickel (chrome/silver)
For use with lever handles in passage situation (non-locking door; typically closet or hallway function)
Please note: this latch does not come with a warranty. If door is not properly hung or aligned, it can put extra stress on the latch and damage it.
Related Parts:
40504 - Curved Passage Lever Handle Set with 2" Backset in Multiple Colors
40505 - Passage Stubby Lever Handle Set with 2" Backset in Multiple Colors
