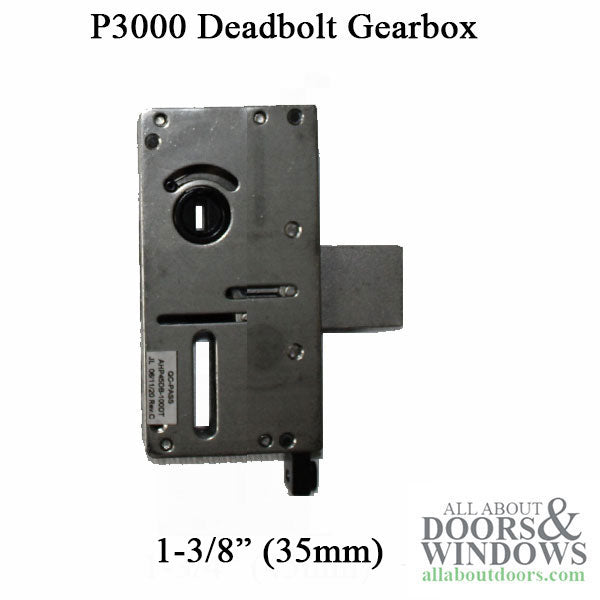

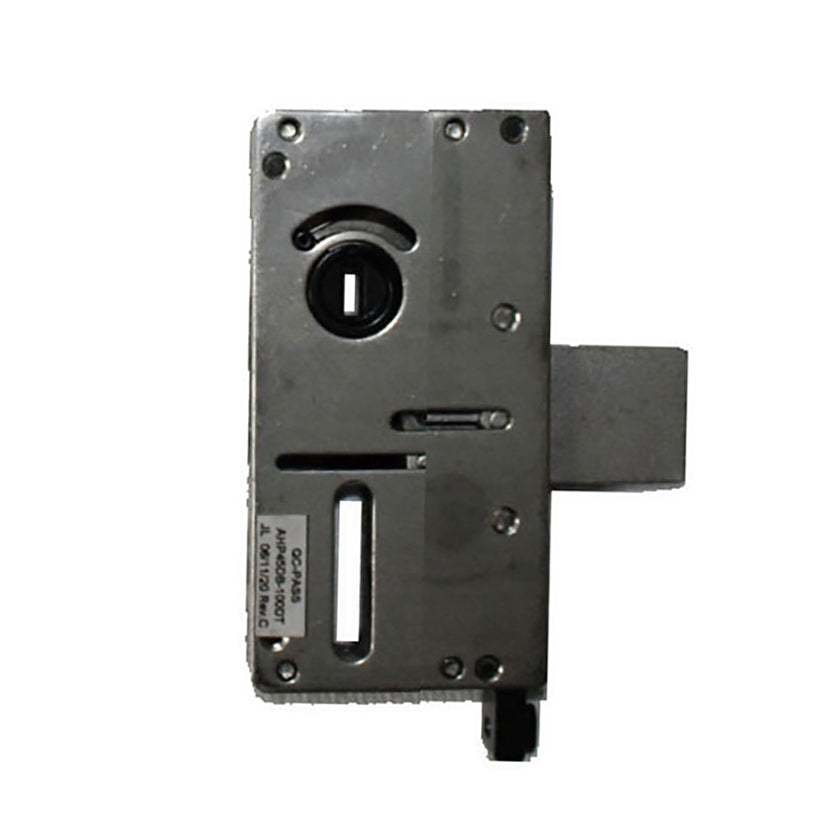

Premiere P3000 Active Gear box for Deadbolt
The P3000 has 2 gear boxes, one for the deadbolt (Upper) and one for the Spring Latch (Lower)
Sometimes referred to as a Babysitter lock, as the deadbolt works without engaging the upper or lower shootbolts.
This makes it easier for individuals who are not familiar with Multipoint locks to lock and unlock the door.

Specifications:
Lock Case only for Deadbolt
Backset: 1-3/8 inch (35mm)
Markings / Sticker: AHP35DB-100DT Deadbolt box

To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door

How To Operate P3000 Lock - This is a different design than most Multipoint Locks
1. To Lock Door: Throw the deadbolt, then lift handle to engage the Auxiliary locks
2. To Unlock Door: Retract deadbolt and push lever down to open


Rehanding an AmesburyTruth 3000 Multipoint Lock
