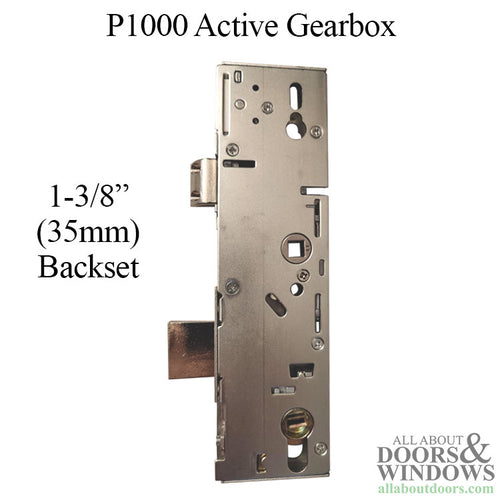

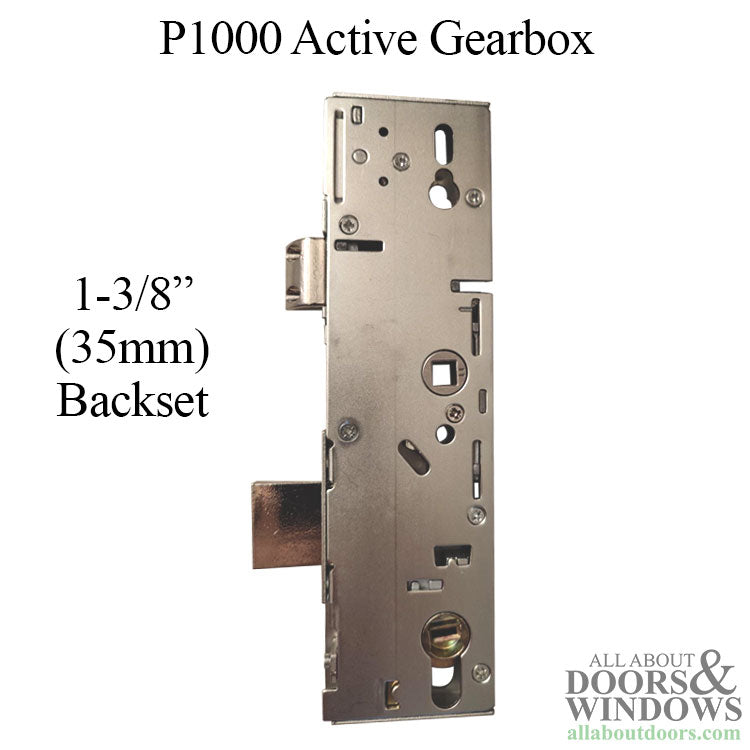

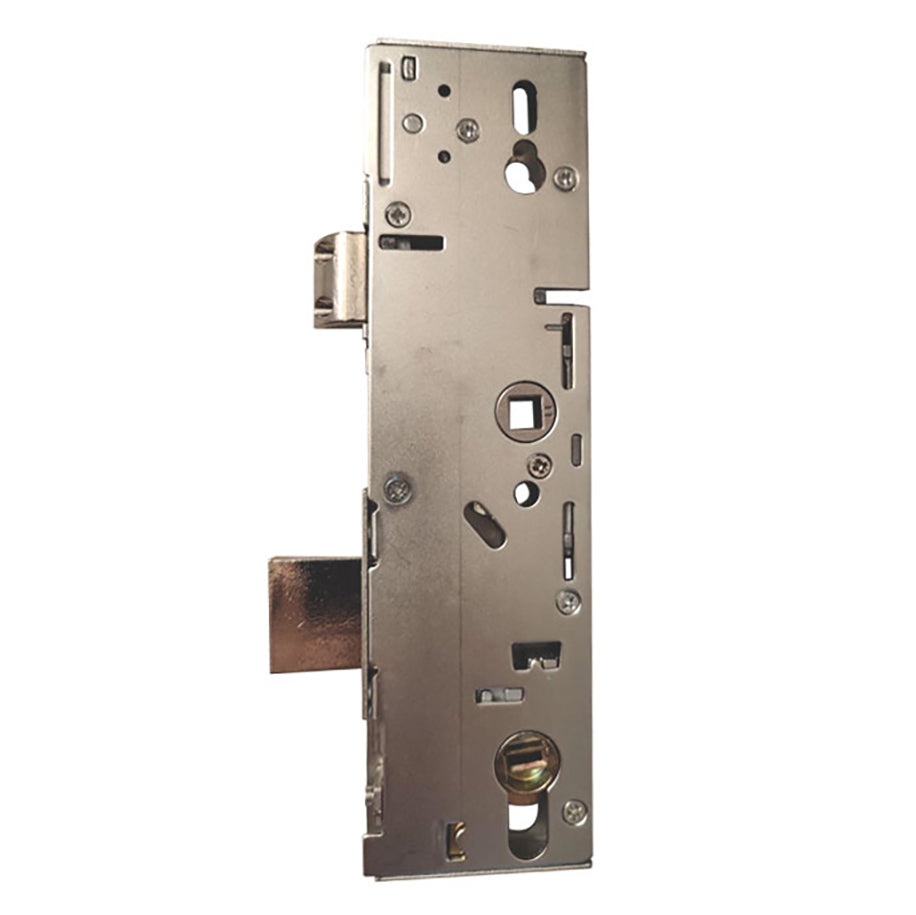

P1000 Active Gearbox, 35/92 Mortise Lock Body, American Version

Part Number: P1000-35

P1000 Active 35/92 Gearbox for Multipoint lock ( Mortise Lock Body only, No Faceplate )
This will replace the gear box only on Multi-point Lock

Used by Marvin and others

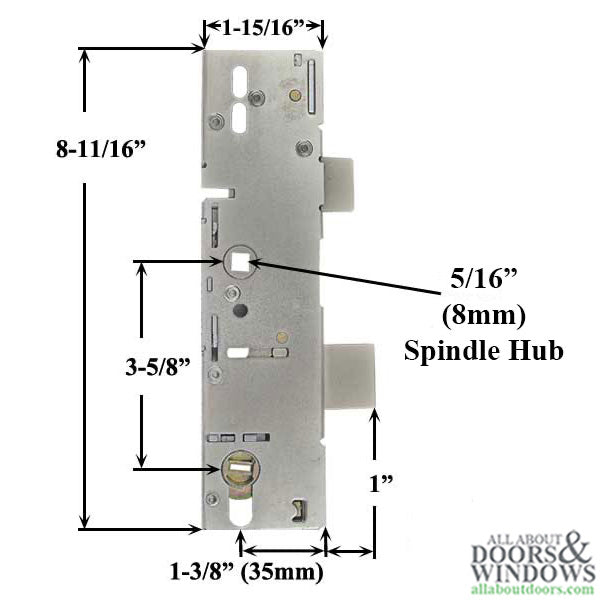

Cylinder Type: American Version
Backset: 1-3/8 inch (35mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 inch (25.4mm)
Spindle: 5/16 inch (8mm)
Lock Body Length: 8-11/16 inch
Lock Body Width: 9/16 inch (16mm)
Lock Body Depth: 1-15/16 Inch

Installation Note:

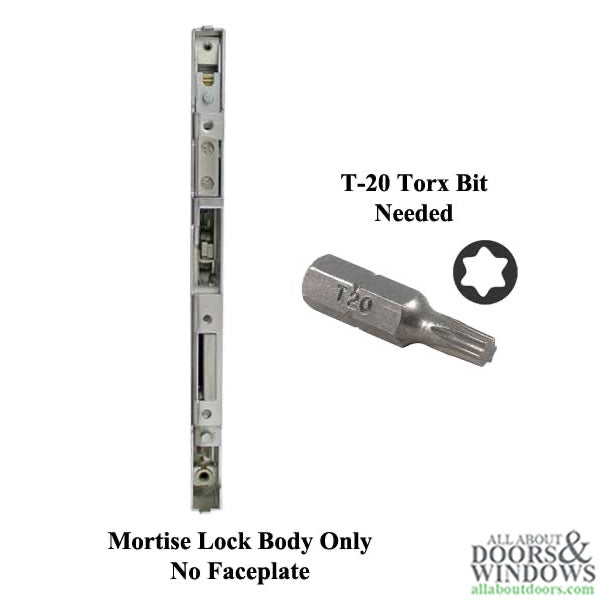

The T-20 torx Star bit screws require 12-13 pounds of torque, when reinstalling faceplate screws




<p><span style="color:rgb(0, 0, 0);">P1000 Active 35/92 Gearbox for Multipoint lock ( Mortise Lock Body only, No Faceplate )</span><br /><span style="color:rgb(0, 0, 0);">This will replace the gear box only on Multi-point Lock</span><br /><br /><span style="color:rgb(230,76,76);">Used by Marvin and others</span><br /><br /><a href="https://www.allaboutdoors.com/american-or-euro-cylinder" target="_blank">Cylinder Type</a>: American Version<br /><a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 1-3/8 inch (35mm)<br /><a href="https://www.allaboutdoors.com/multipoint-lock-pz" target="_blank">Handle PZ</a>: 3-5/8 inch ( 92mm)<br /><a href="https://www.allaboutdoors.com/deadbolt-throw" target="_blank">Deadbolt Throw</a>: 1 inch (25.4mm)<br /><a href="https://www.allaboutdoors.com/multipoint-lock-spindle" target="_blank">Spindle</a>: 5/16 inch (8mm)<br /><a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank">Lock Body</a> Length: 8-11/16 inch<br />Lock Body Width: 9/16 inch (16mm)<br />Lock Body Depth: 1-15/16 Inch<br /><br />Installation Note:<br />The T-20 torx Star bit screws require 12-13 pounds of torque, when reinstalling faceplate screws<br /><br /><br /> <iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/x5MSx8gNz8k" title="YouTube video player" width="360"></iframe></p>
Add to Card
slide

P1000 Active Gearbox, 35/92 Mortise Lock Body, American Version

P1000 Active Gearbox, 35/92 Mortise Lock Body, American Version

P1000 Active Gearbox, 35/92 Mortise Lock Body, American Version

Price: $64.26
