Multipoint Lock (MPL) 92"" Door, 2-3/8" Backset -Inswing Door

Part Number: 395096-NI Price: $495.00
COLOR: - Nickel

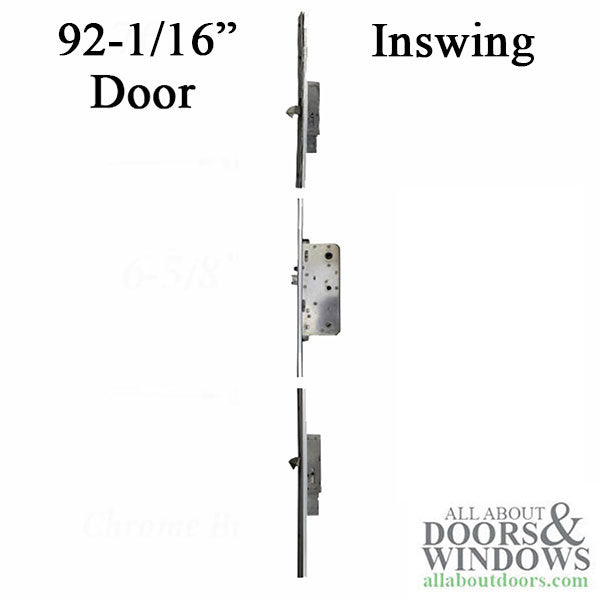

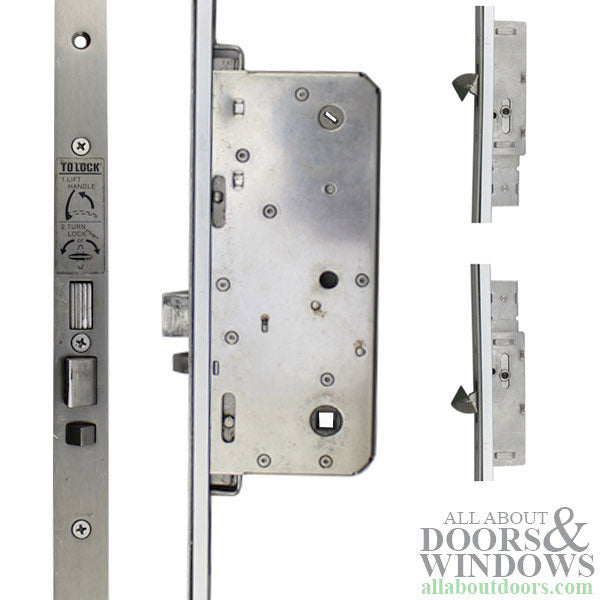

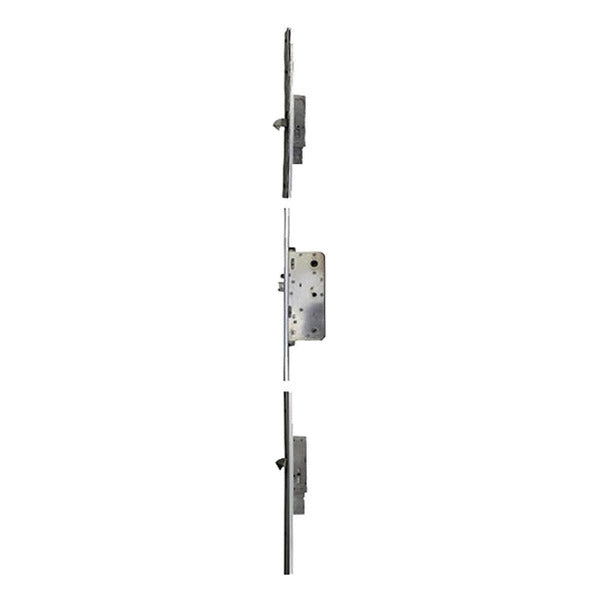

Multipoint Lock (MPL) 92-1/16 inch tall In-Swing Door with 15/16" wide faceplate, 2-3/8 inch lock backset, 2 hooks, 1 deadbolt,
Taiwan, Republic of China, Hinged Patio Door
This lock is a direct Taiwanese Import and has an unusual handle to thumb turn spacing of 5-1/4 inch

Application: 92-1/16 inch Out-Swing Door
Backset: 2-3/8 (60mm)
Faceplate: 15/16 inch 24mm
Cylinder Type: American
Overall Length: 92-1/16 inch

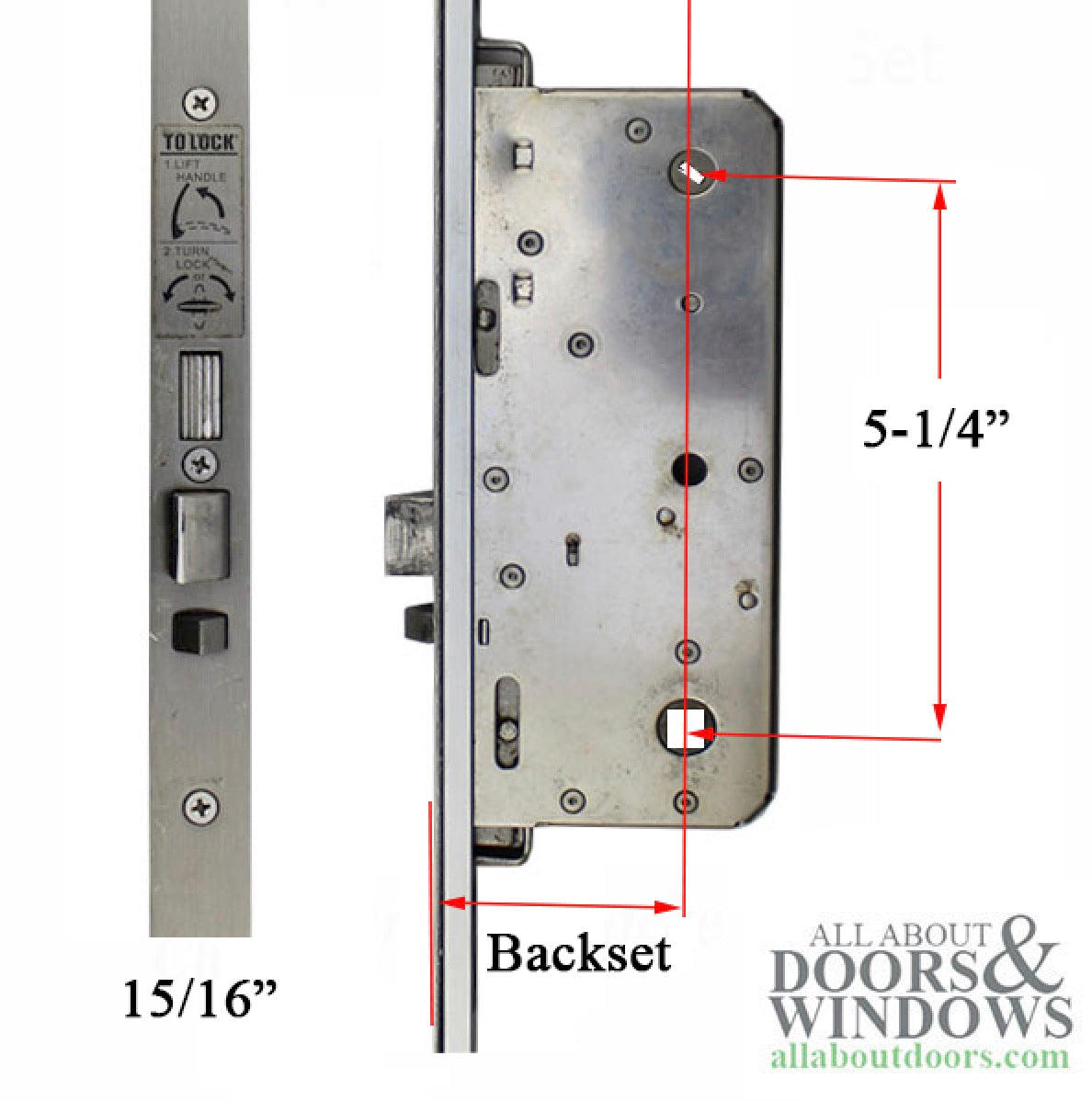

Handle to Cylinder PZ: 5-1/4 inch (133.35mm)
Handle Position: Key / Thumb turn Above Handle
Handle Height: 37 inch
Top Hook 47-3/8 inch
Bottom Hook: 30-3/4 inch
markings on some handle sets: HPVD
Markings: Pat M267300


Additional Information:
* These are available for nominal sizes for 6-8, 6-11, 7-6 and 8-0 tall doors. They are made for in swing and out swing doors
* You have 8 possible replacements.
* Measurements are from the Handle up or down for hook positions
Handle: Key above Lever
