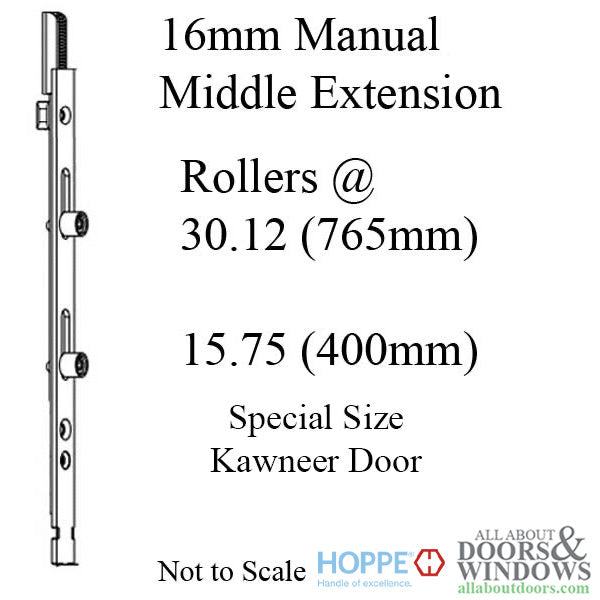

Middle Extension, 808mm, 2 rollers 400/765
Special size used with Kawneer Doors

Type Middle Extension
Version: 2 roller Manual
Faceplate width: 5/8 inch (16mm)
Length: 31.81 inches (808mm)
1st Roller position: 15.75 inches (400mm)
2nd Roller position: 30.12 (765mm)

NOTE: The Kawneer door has a Custom configured Lock that can have Filler Plates or Shootbolts added to the top or bottom of the door for additional locking points.

Related Parts:
8786915 = Middle Extension, Manual 31.81 (808mm) , 2 rollers @ 15.75" (400mm) & 30.12" ( 765mm)
2875118 - Cover Connection Plate
8778623 = 16mm Manual Top Extension, Shootbolt 24.61" length ( 93" Door )
8786923 = Bottom Filler Plate 9.84" (250mm)
8778619 = Top Filler Plate 30.51' (775mm) cut to length for door heights (300mm or 758mm)

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
