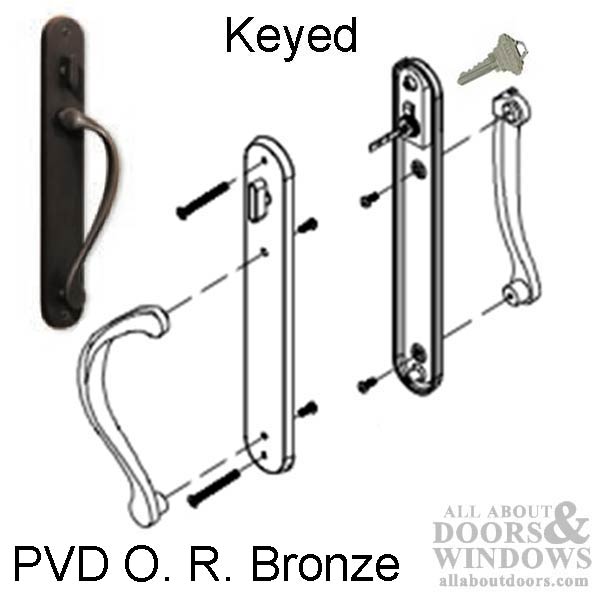

Marvin Traditional Keyed active door with wide escutcheon plates.
Fits Current Style Marvin Sliding French Door & Ultimate Sliding French Doors
This is for the active door, with key and inside thumb turn
Marvin Handle Set Specifications:

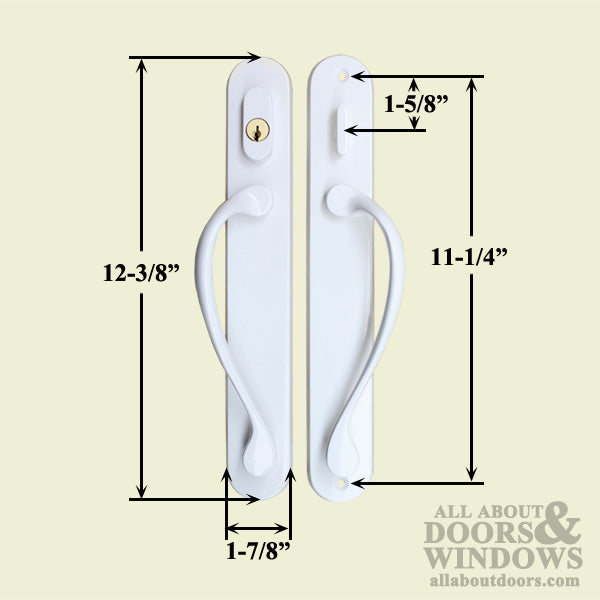

Escutcheon Plate Width: 1-7/8 inch
Escutcheon Plate Length: 12-1/2 Inches
Screw Holes: 2 Top and bottom of plate, Spaced Vertically @ 11-3/16 inch
Top Screw hole to Center of thumb turn: 1-5/8 inch
Handed: No, handles can be switched for left or right hand doors
Color: PVD Oil Rubbed Bronze
PVD finishes from Marvin offer a 10 year “Abnormal deterioration” warranty.
IMPORTANT NOTE:

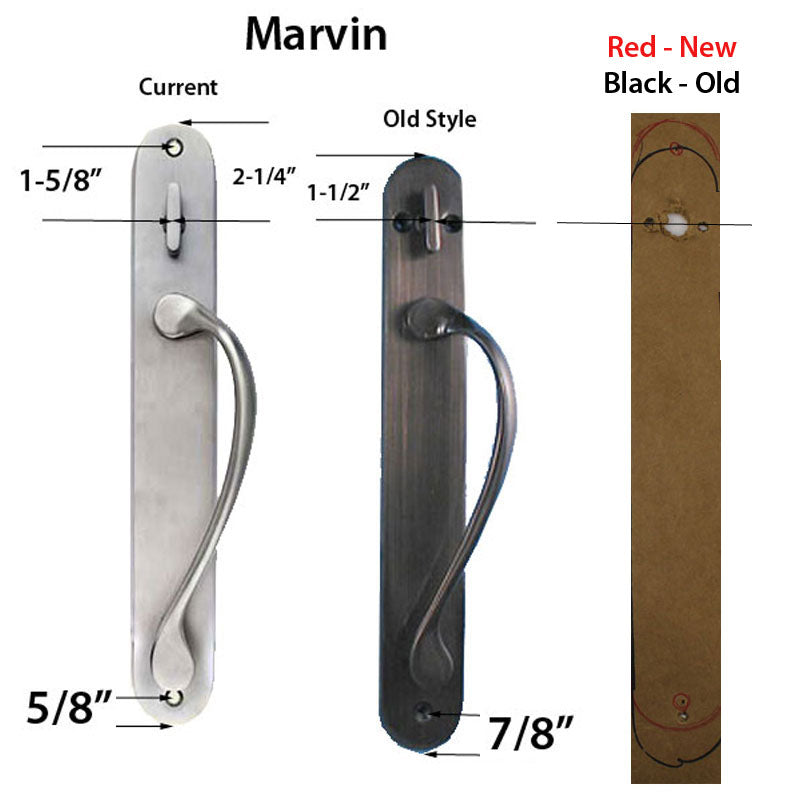

If you have the old style trim and are replacing with the new style, there will be marks from the old handle set that will NOT be covered by the new style trim.

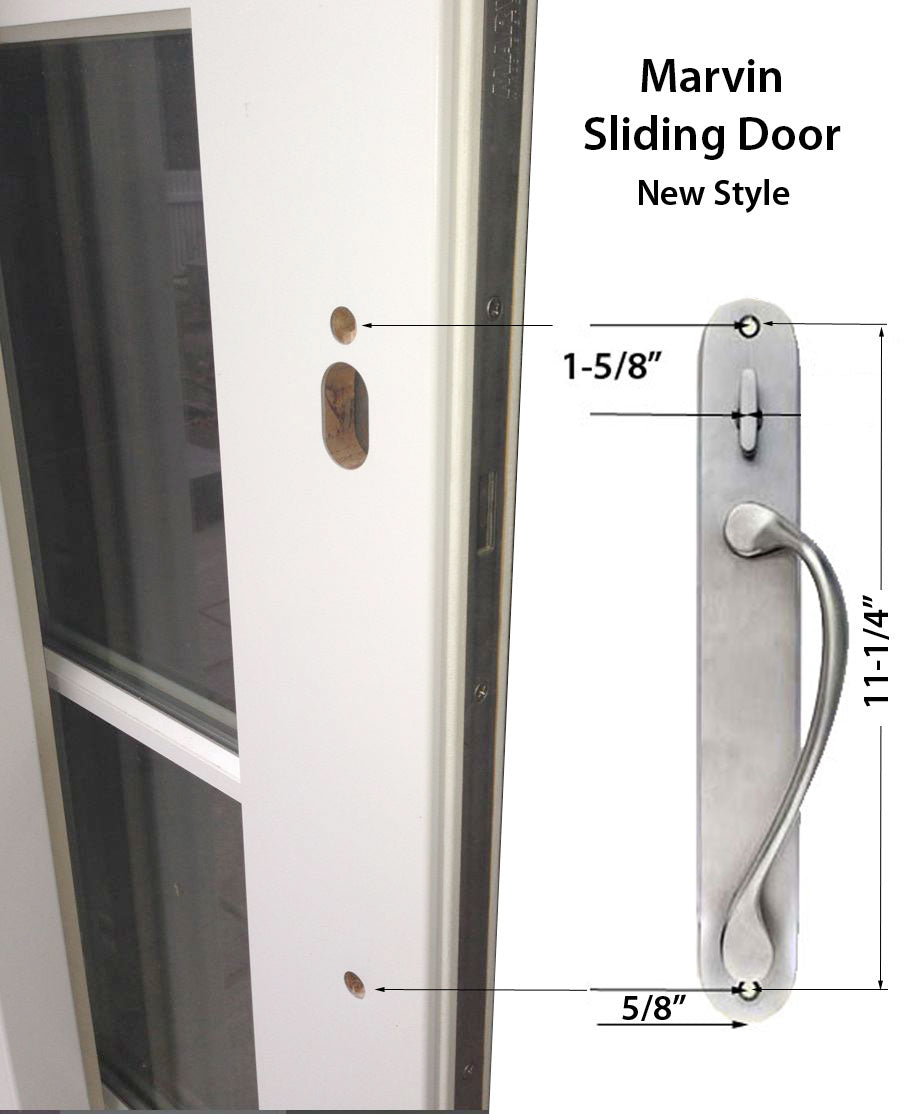

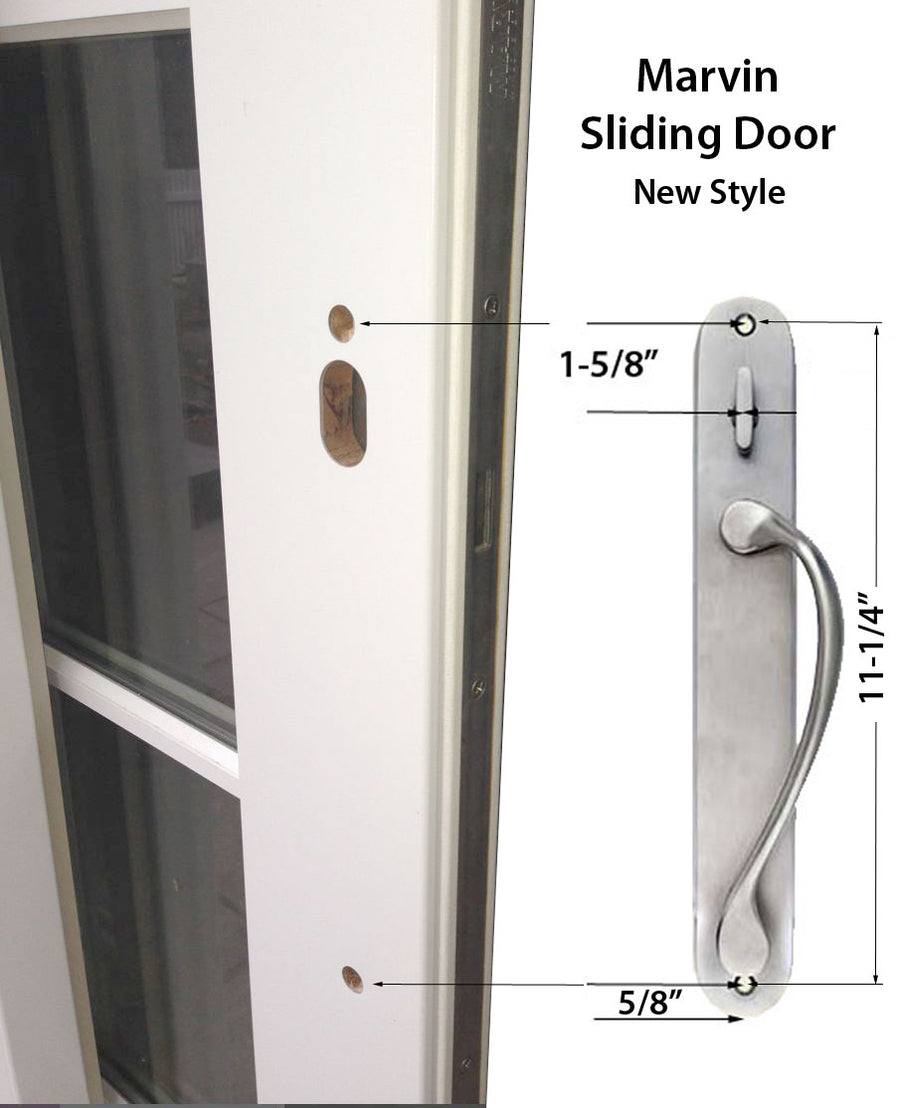

New Style Handles have 2 installation screws, The vertical screw holes located at top and bottom of interior plate.
Old style trim had 3 installation screws, 2 horizontal screws at thumb turn and 1 bottom screw on the interior plate.
