Reversible swinging gate lock, Keyed single cylinder, Key one side, thumb latch on other

Case size 3-5/8" x 6-1/4" x 1-1/16",

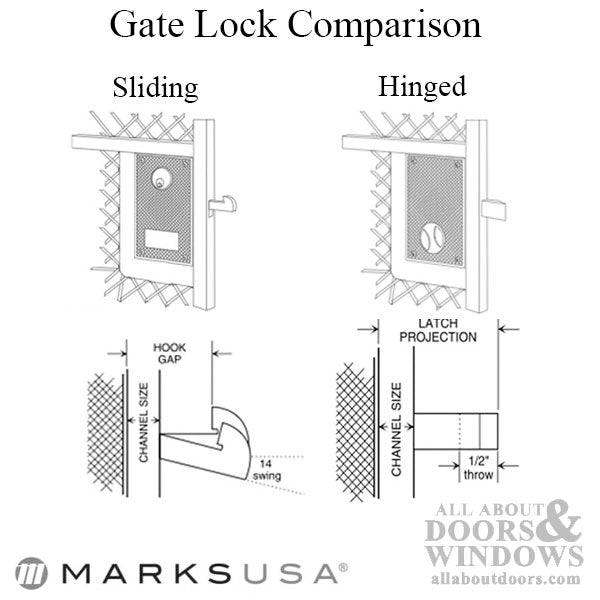

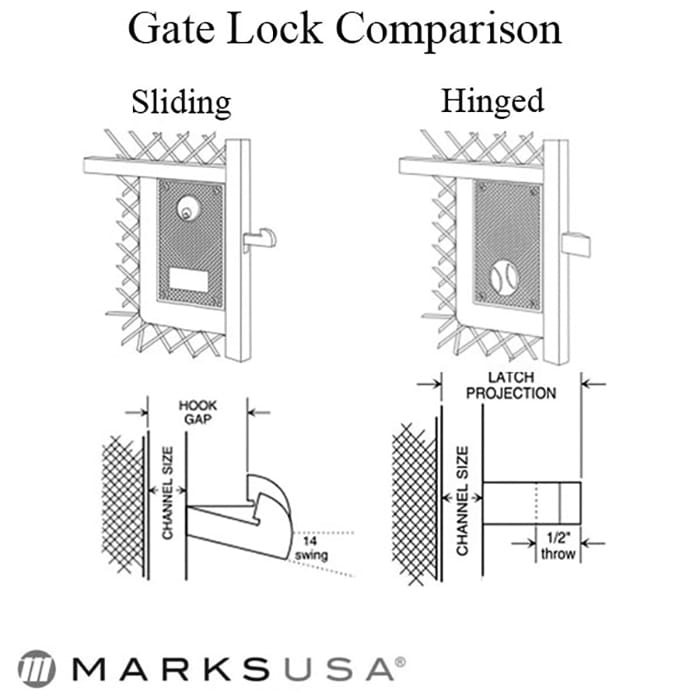

Hook Gap .950"
Channel Size: 5/8"
Keyed: Yes, comes with cylinder and 2 cut keys

Groove: 1/2" wide x 3/16" deep top, bottom and back for wire gate insertion
Accepts up to a 1" cylinder / Yale cam,
Reversible with 1-1/8" latch protection.

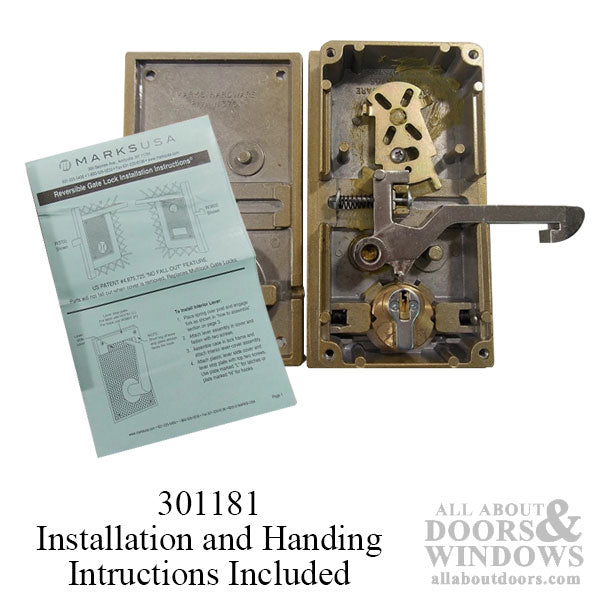

Patented "No Fallout" feature prevents components from falling out of the lock body when the handing is changed, even if the lock body is inverted.

Handing is easily reversible
Tapered turn piece prevents tampering from locked side of gate.
Optional 1" cylinder available (Standard Schlage keyway SC1 )

Related Parts:
WA3806 - Marks Hook Assembly for Gate Lock
