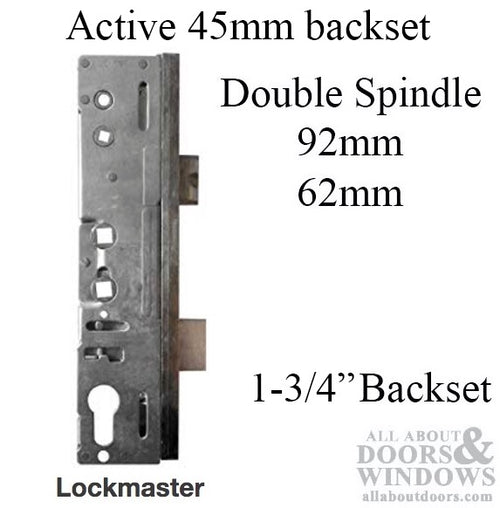

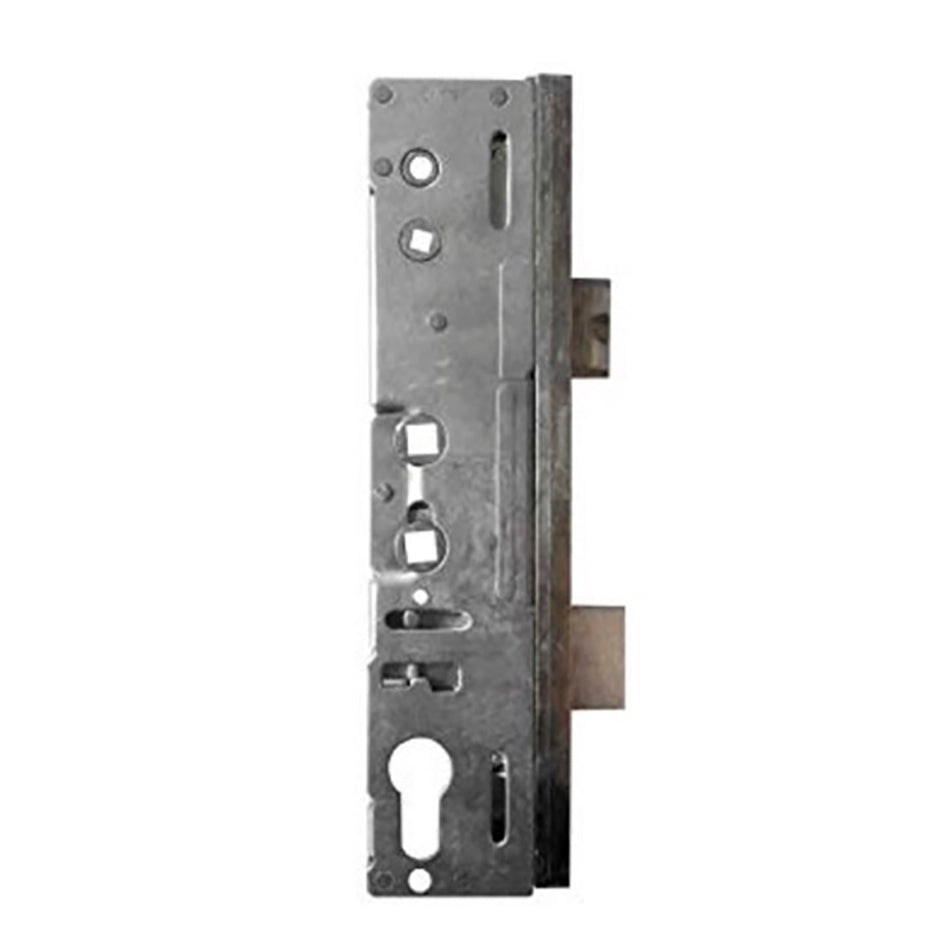

Generic / After Market Lockmaster Lock case / Lock body case only for Active Multipoint lock.
Application: Replaces Active lock case only
Faceplate Width: NONE, Lock case only
Lock Backset: 1-3/4 inch (45mm)
Handle- Cylinder PZ: Double Spindle, 3-5/8 (92mm) and 2.44 inch (62mm)
Spindle Diameter: 5/16 inch (8mm)
Lock Case: Spring Latch and Deadbolt
Handed: No, Reversible.
Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.
Product Information
This Lockmaster genuine gearbox features an 8mm double spindle with 62/92mm centres and a 45mm backset. Double spindle gearboxes are unsprung and therefore not suitable for use with unsprung handles.
Your Handle set must have a spring cassette otherwise the handles will droop
Operation:
Lift handle to lock, Turn Key or cylinder thumb turn to secure
Unlock by turning key or cylinder thumb turn, depress handle to retract latch and deadbolt / hook
