Lock Cylinder, Andersen Frenchwood Hinged- Bright Brass

Part Number: 2579637 Price: $58.70

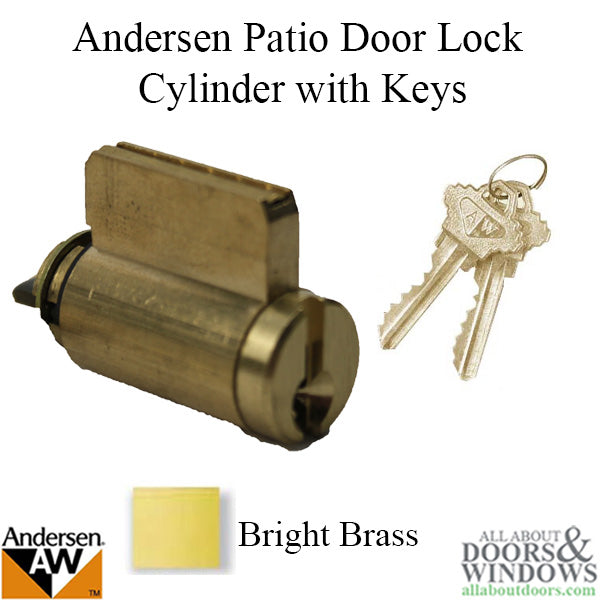

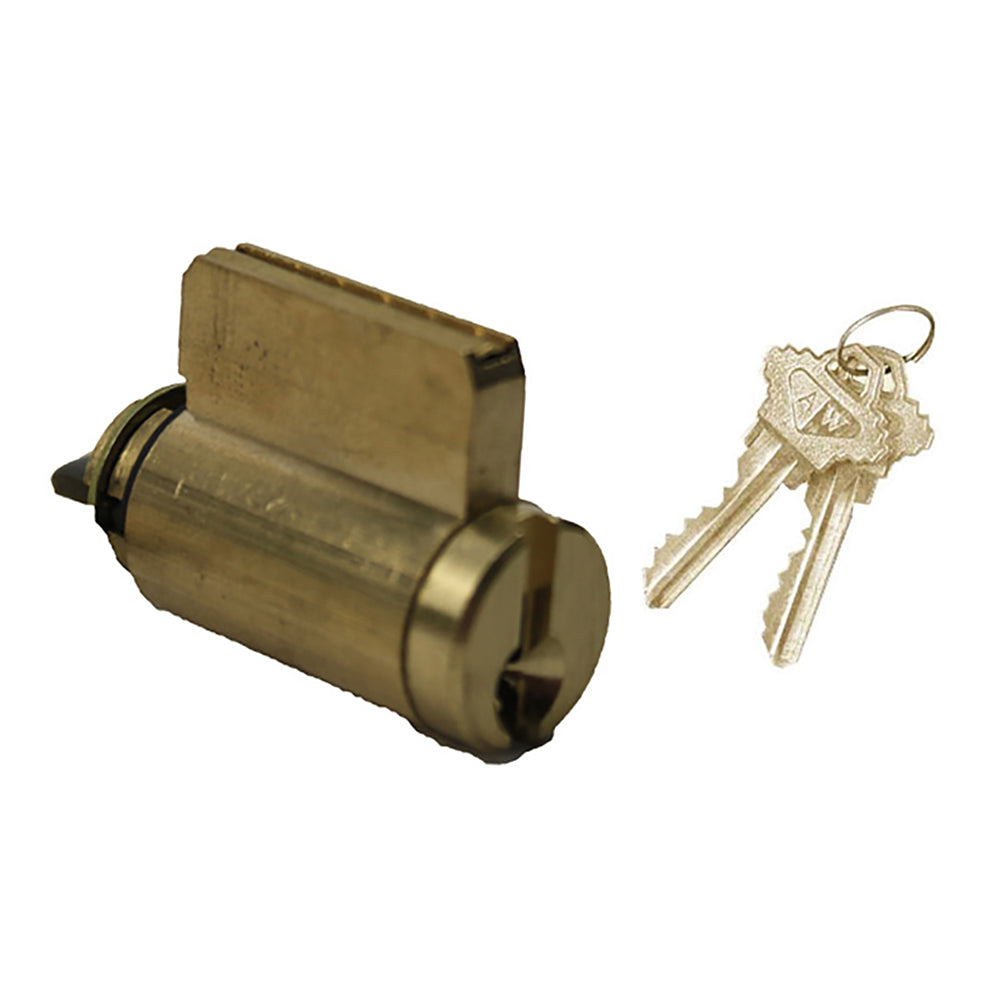

Andersen Hinged Patio Door Lock cylinder with two keys for an Andersen Frenchwood Hinged Door.

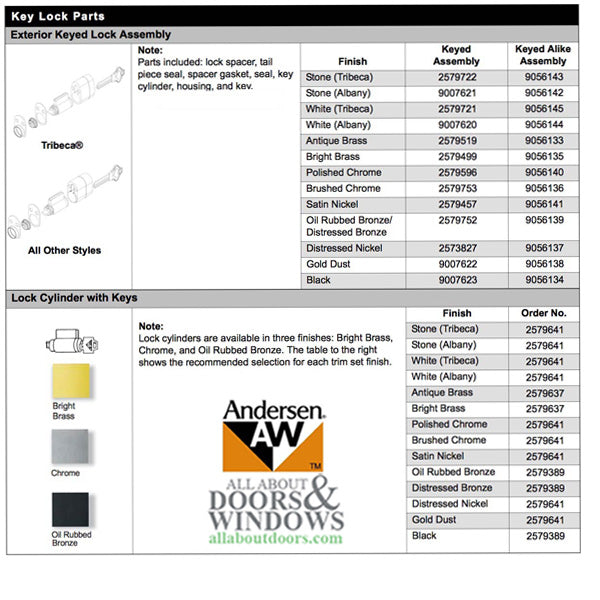

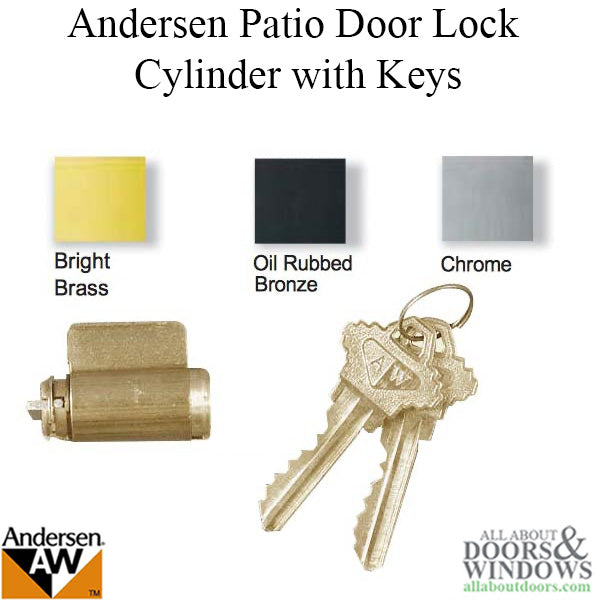

Lock Cylinders are available in three Finishes; Bright Brass, Chrome & Oil Rubbed Bronze
2579639 - Antique Brass has been Discontinued.
Choose one of these for appropriate trim finish.
Schlage SC-4, 6 pin keyway is the only keyway available.
Keys: 2 keys with Andersen Logo

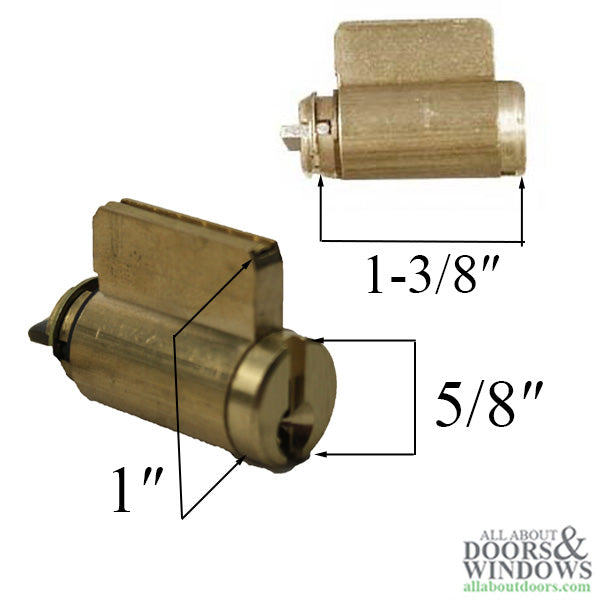

Measurements:
Length: 1-3/8 inch
Height: 1 inch
Diameter: 5/8 inch

Related Andersen Parts:
2579499 - Keyed Cylinder with Brass Lock Housing
2579542 - Lock Actuator
2579637 - Keyed Cylinder, Brass
2579389 - Keyed Cylinder, Oil Rubbed Bronze
2579641 - Keyed Cylinder, Chrome



Andersen's Manufacturer's Guide to Exterior Keyed Cylinders: PDF
