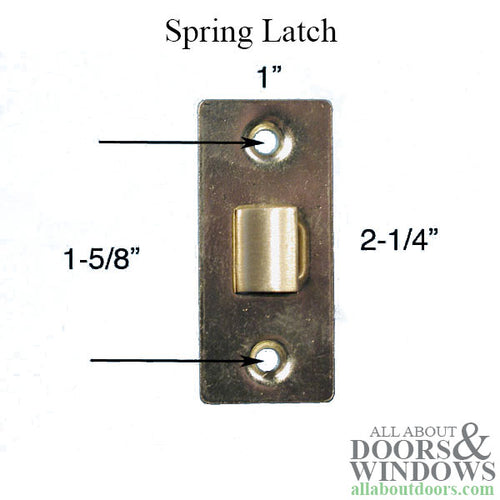

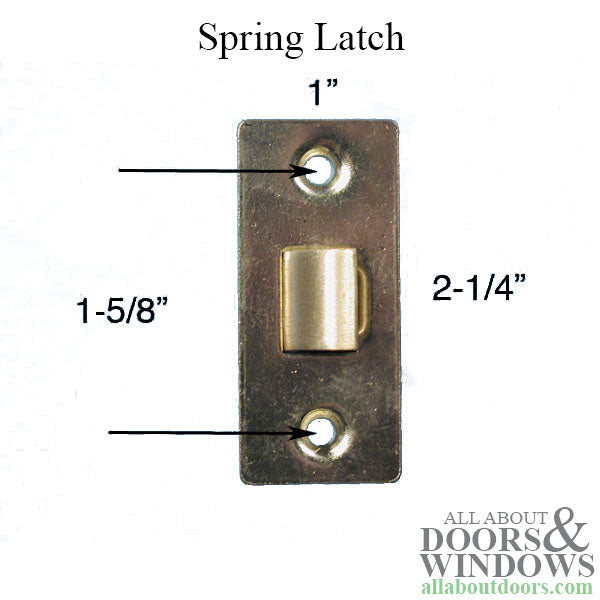

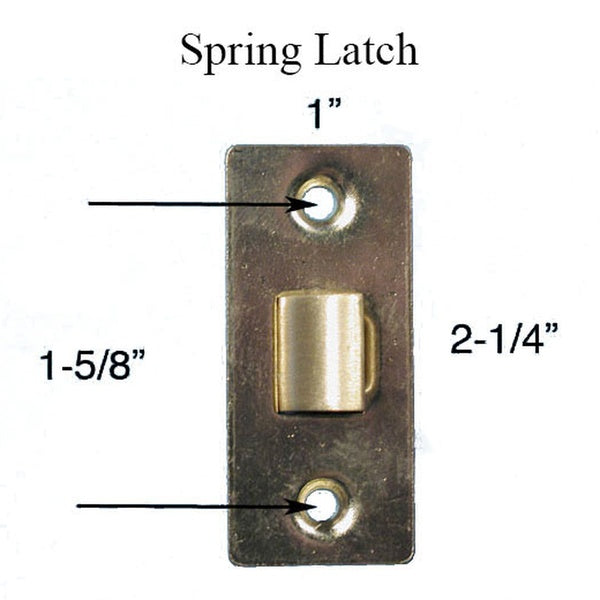

Spring latch used with passage and privacy handles.

Application: Interior passage doors, Closet or Hall
Finish: Brass plated face
Faceplate Shape: Square corner

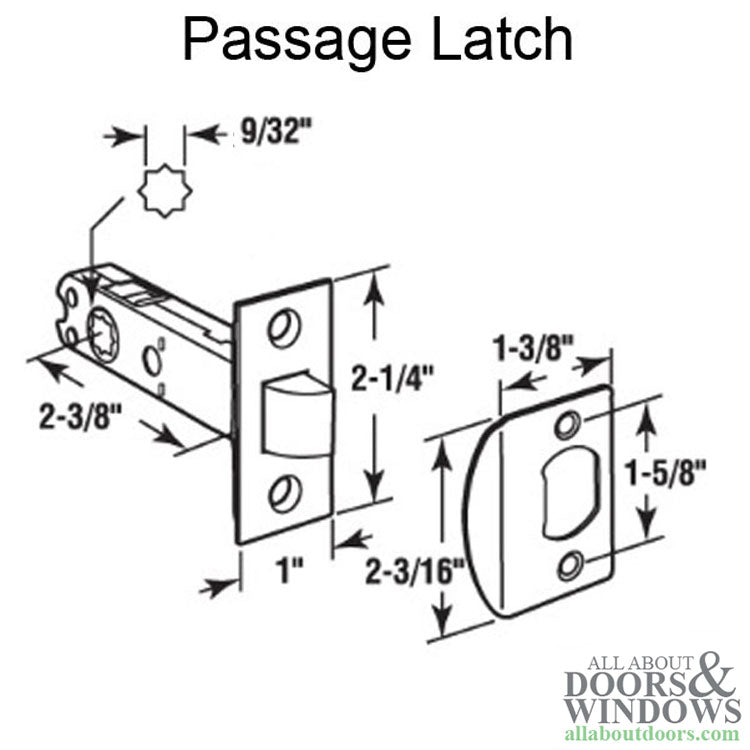

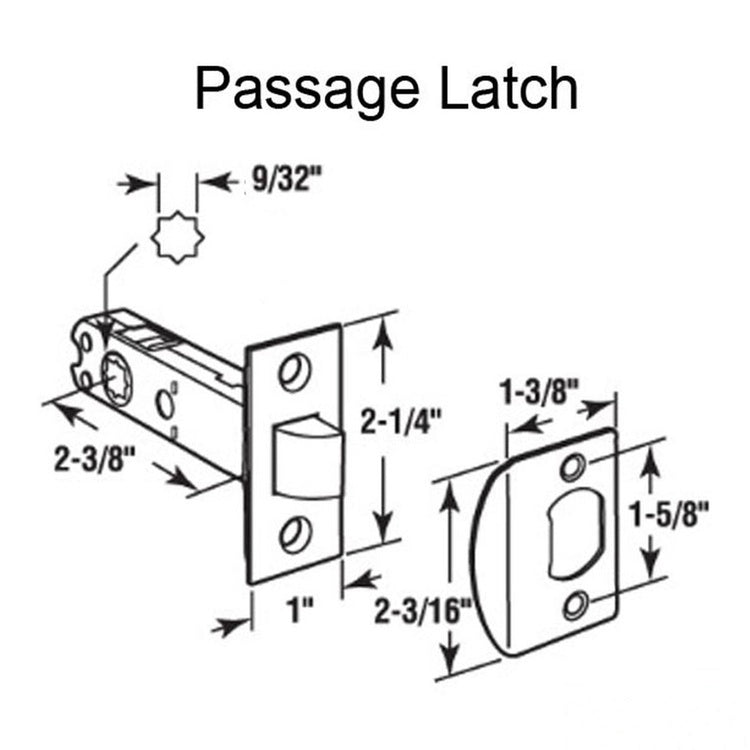

Backset: 2-3/8 inch (60mm)
Spindle Hub: Accepts 9/32 inch square spindle
Handed: No, fits left or right hand doors
Used on old style passage door locksets.
Screw Hole Center: 1-5/8-inch

For old style spindle knobs - DOES NOT WORK WITH HANDLE SETS THAT USE A STANDARD 2-1/8" BORE
**Most commonly used by Gainsborough Hardware (Australia)

Priced and sold each.

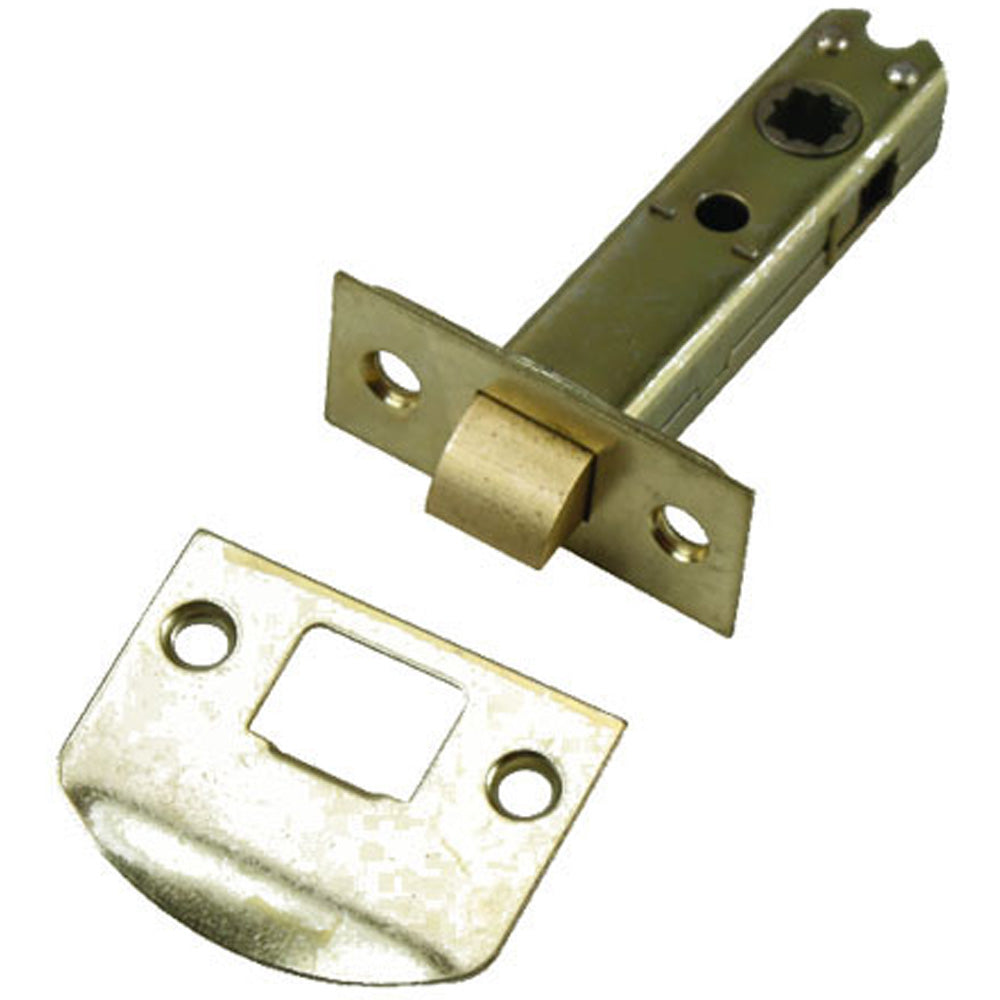

These passage door latches are constructed of steel and come in a brass plated finish. This latch is designed for indoor use only, and it functions with the use of a spring-loaded square drive spindle at a maximum width and height of 9/32 inches. It is used with antique and vintage door hardware and it features a 2-3/8 in. backset.
The latch includes a latch strike and fasteners, but it does NOT include any of the following components and they must be purchased separately: door knobs, square spindle and rosettes.
*Note #1: The square drive on this latch has a 9/32 in. opening and a 1/4 in. opening. The maximum square spindle size that this latch will accommodate is 9/32 in.
Note #2: This item cannot be used on pre-bored doors that have large, newer style door knob holes without first prepping them to receive this hardware.
