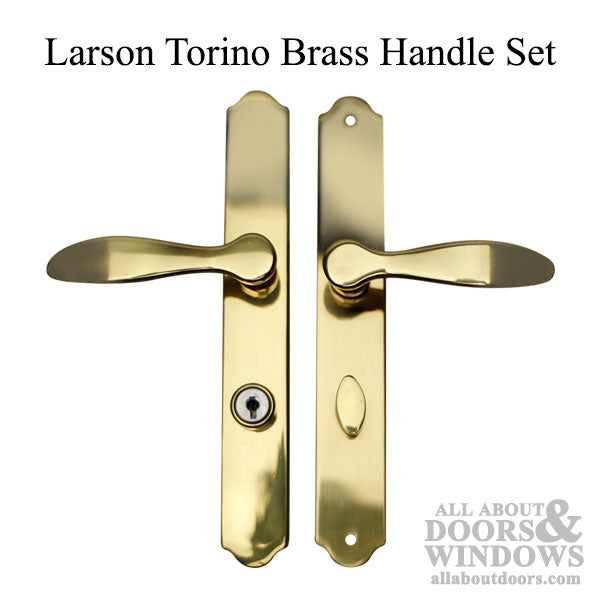

Larson Torino Brass Lever Handle Set - Brass

Part Number: 305042-PB
COLOR: - Polished Brass

New, Old Stock, (1) may have minor blemishes or scratches - Sold as is, No Returns
Larson Torino Handle set NO mortise lock, used on the Larson Tradewinds storm door.

Service Dates: 2001 - 2004
Color Finish: Only available in Polished Brass
Cylinder Type: American Version
Backplates: 1-1/4 x 9 inches

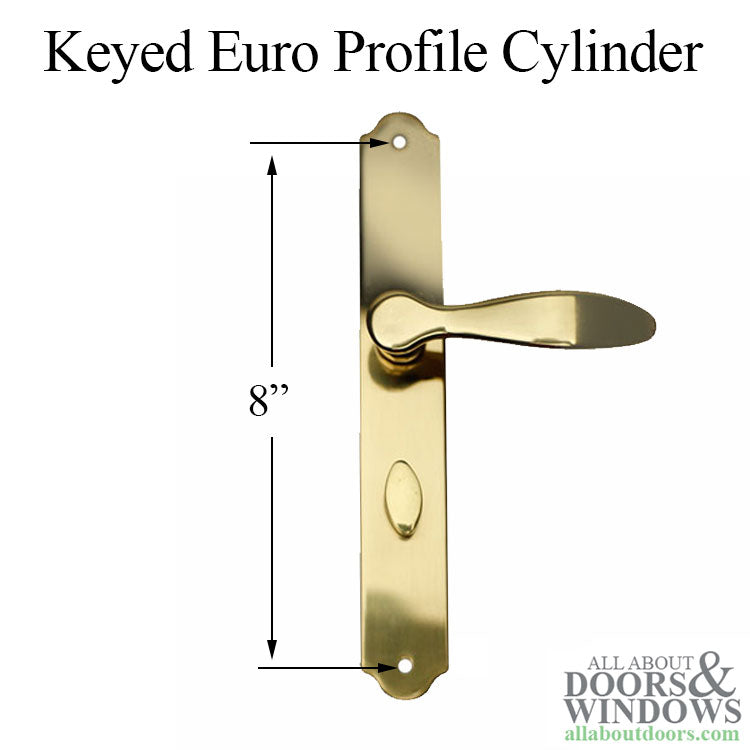

Screw Holes: 8 inch
Flat Tail Pieces Extends 1 inch

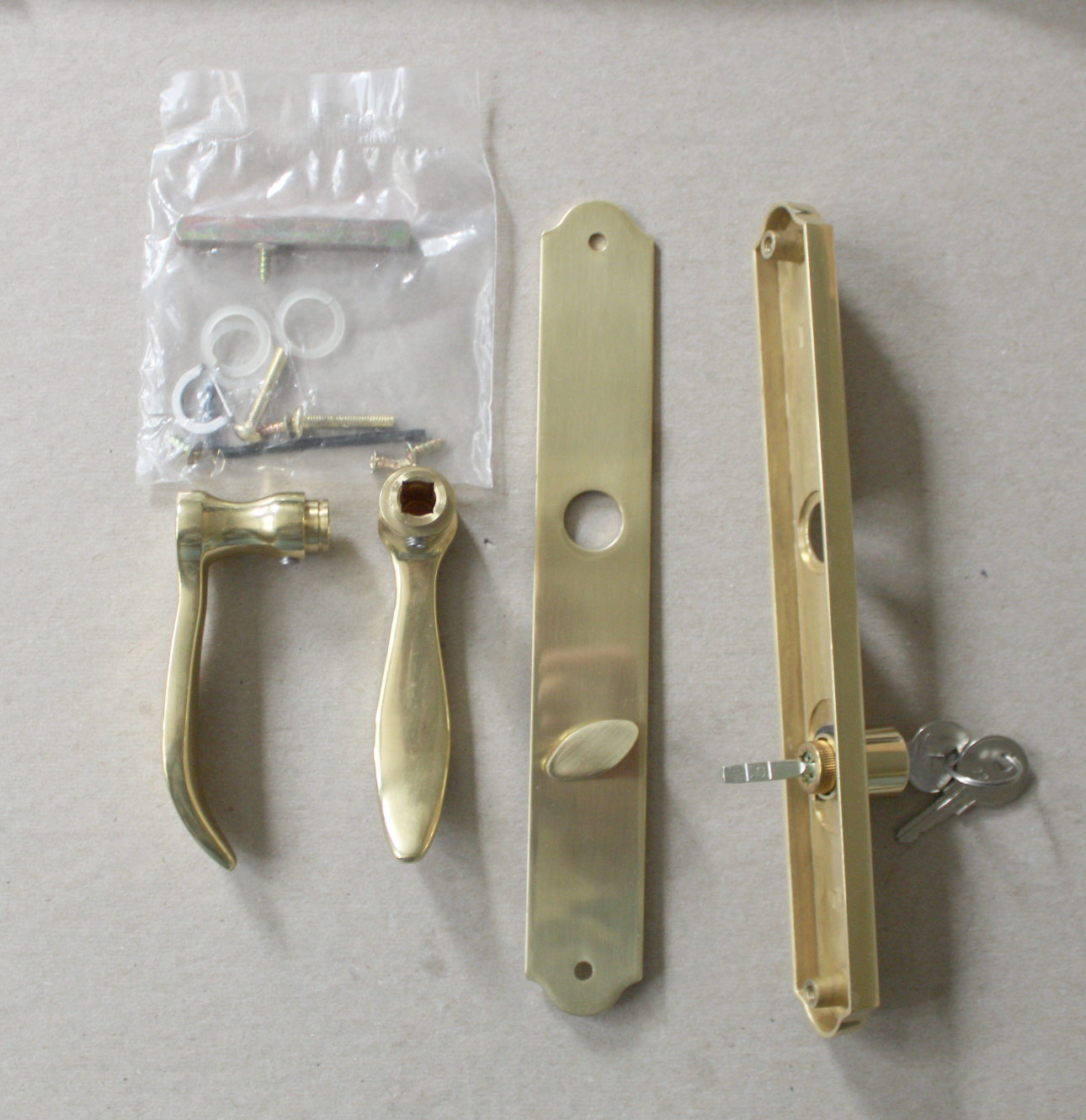

Includes:
Keyed Handle set Trim with Torino Straight Levers
Screw pack, spindle and other accessories needed for installation

INSTALLATION NOTE:
The back of the key cylinder has a FLAT metal tail piece that will rotate 180 degrees.
If the thumb turn works on the inside, but the key does not work on the outside the flat tail piece is 180 degrees out of rotation.
Remove handle set and rotate the tail piece 180 degrees and then reinstall handles.
