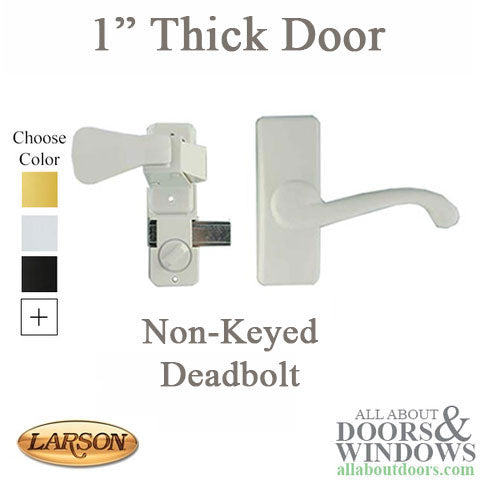

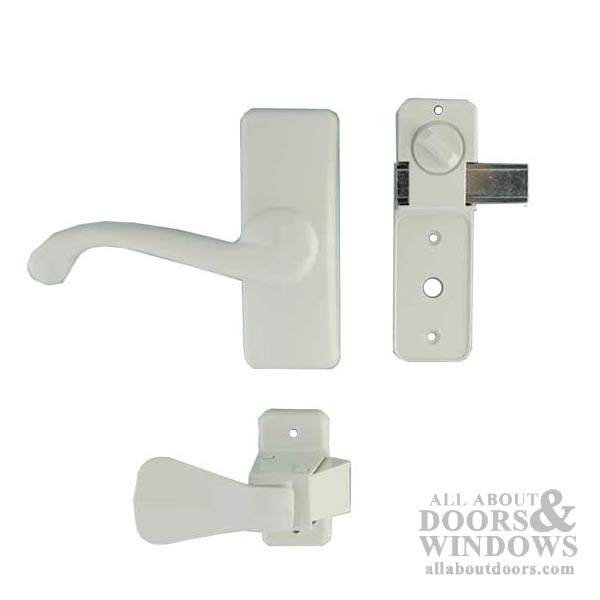

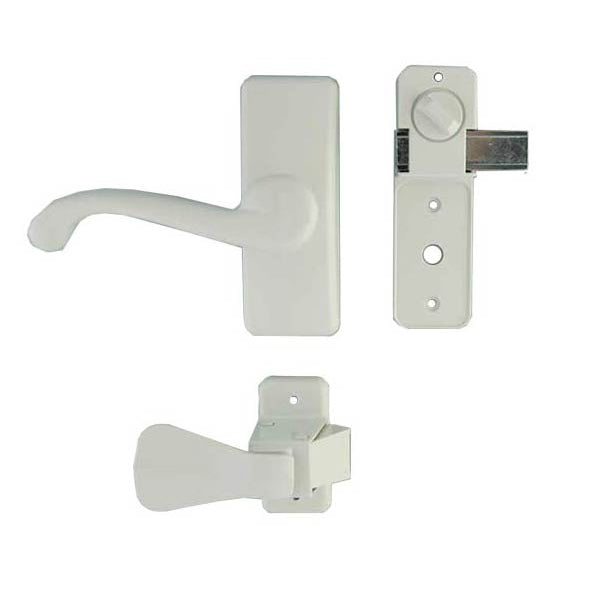

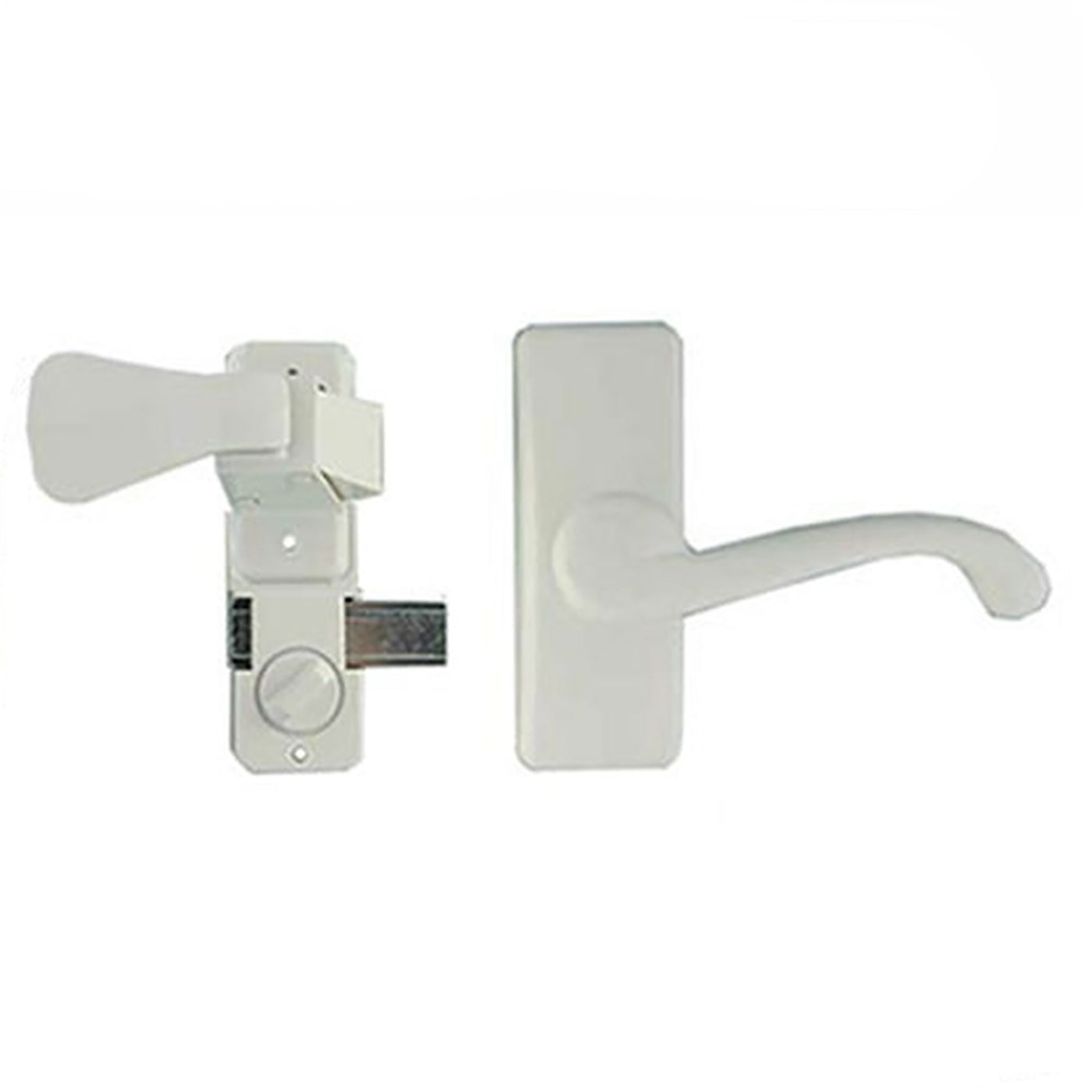

Larson Old Style Surface mount storm door handle with deadbolt for 1 inch thick door.
Outside Georgian Lever handle 1-3/4 inch standard screw hole pattern with 1/4 inch square spindle.
Inside has combination push handle with deadbolt.
Inside push handle has 1-3/4 inch screw hole pattern.
Deadbolt projects 1/2 inch from surface.

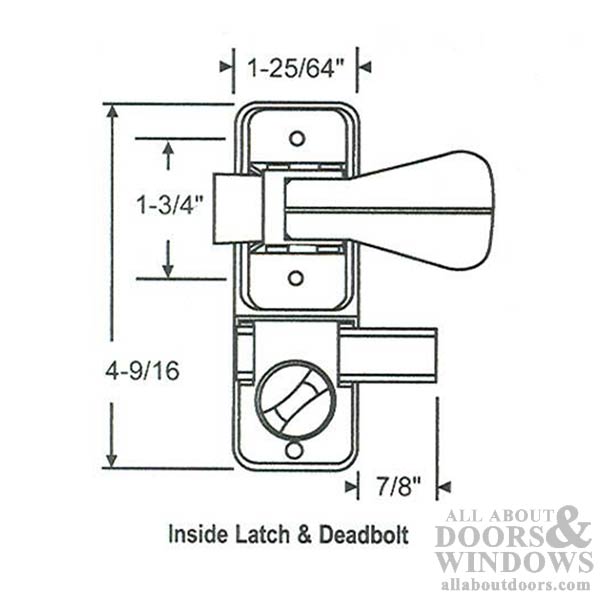

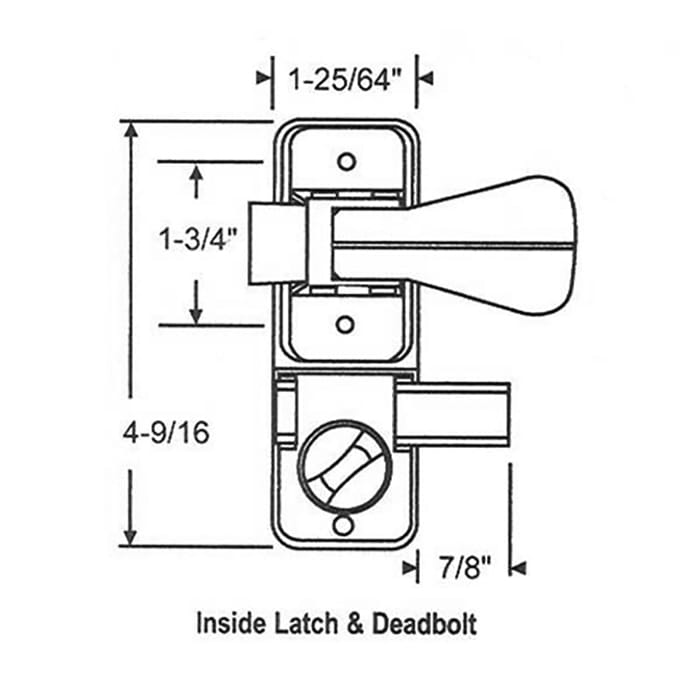

Base measures 1-3/8 x 4-9/16;
op to bottom screw holes 3-7/8 inches.
Sold as a replacement Kit only.
The Replacement uses a 5/16 inch spindle to connect inside and outside handles.
