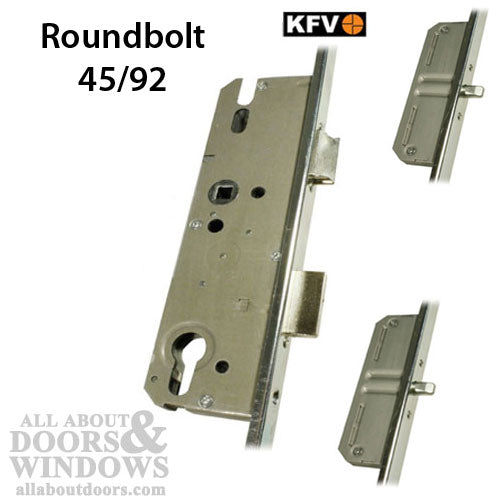

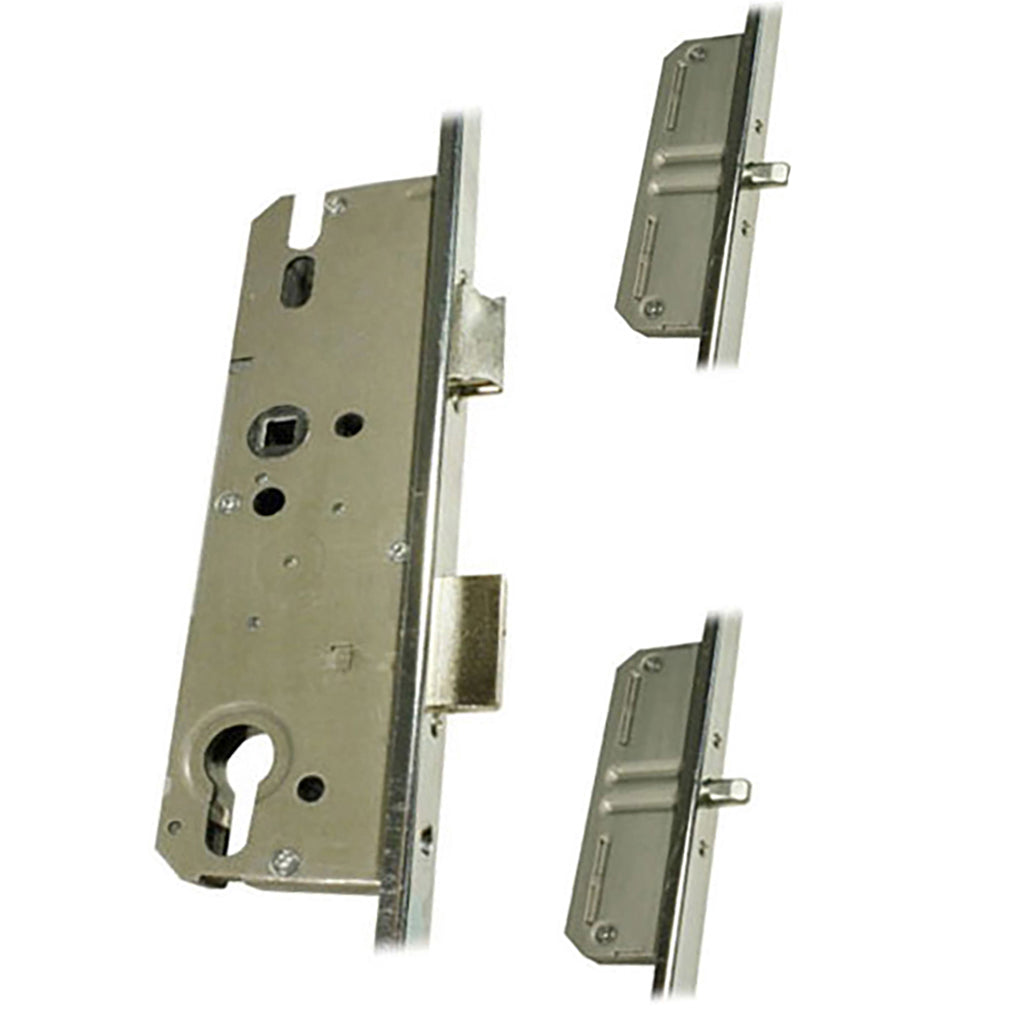

KFV 45/92 Roundbolt Version, 2 bullets, 20mm Faceplate

Part Number: 4991250 Price: $75.00
Old stock, Discontinued and limited to existing inventory. AS IS NO RETURNS ( 3 or more only $50 each + Shipping)
These can be cut down to make Single Point Locks
These are over 10 years old.  They are new, but look otherwise due to many years of storage.
They Must be lubricated before installing.


KFV Multi-point door lock, 45mm Backset, lever operated, 2 Bullet Pins, 1 deadbolt
Lock Type: Euro, Profile Cylinder - Key or Thumb turn Operated

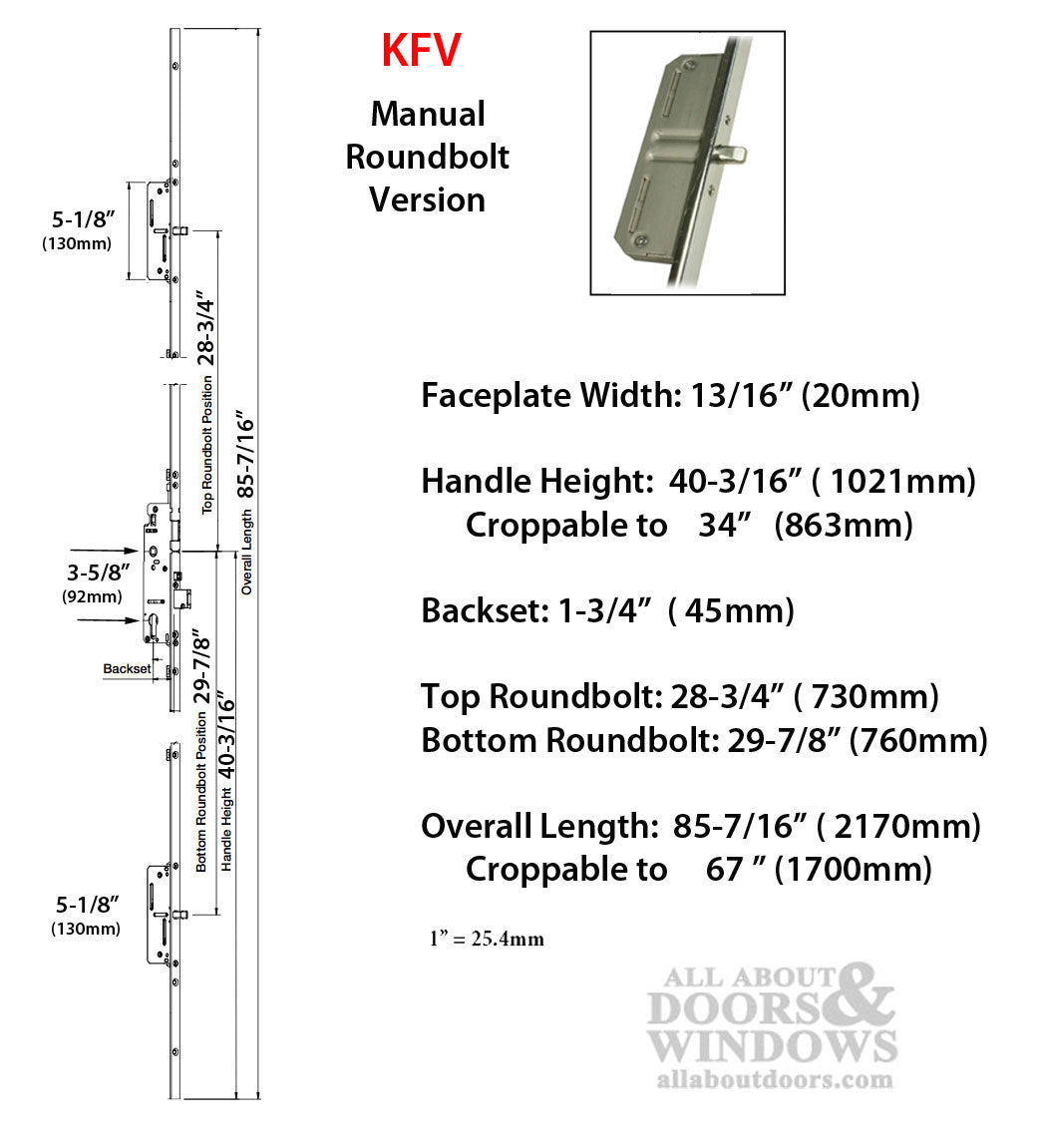

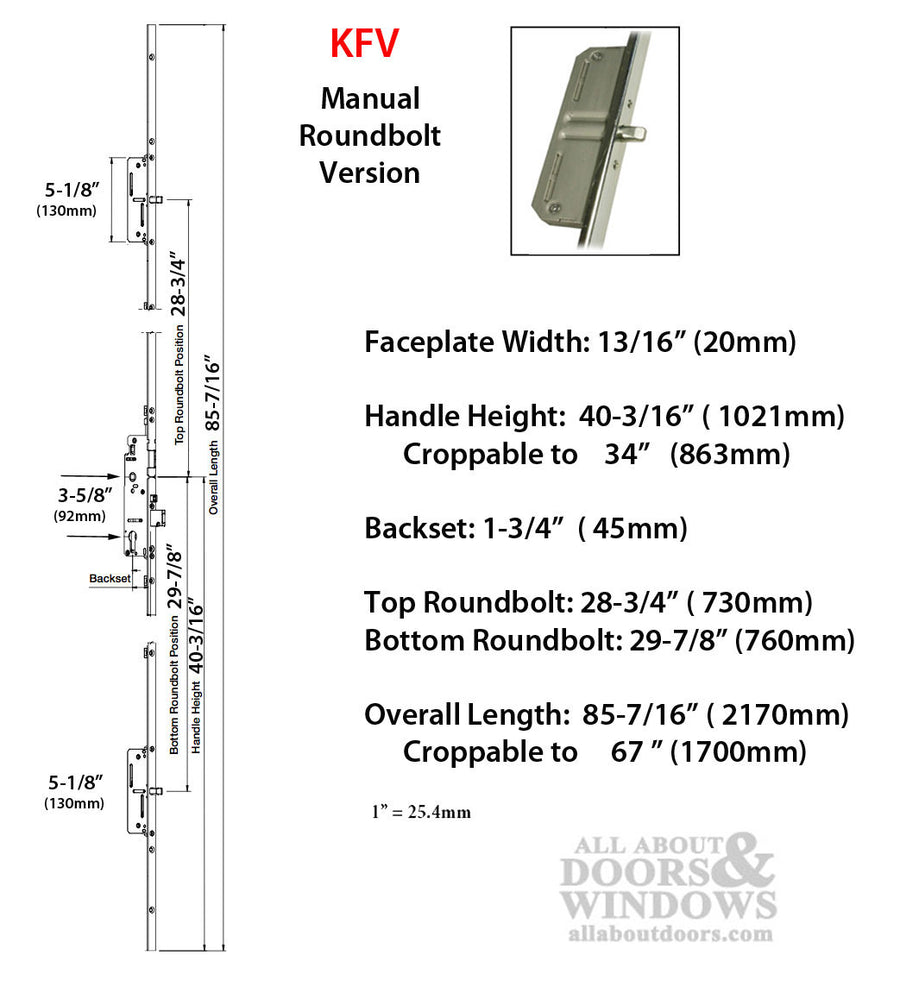

Lock Backset: 1-3/4 inch (45mm)
Faceplate Width: 0.787 inch (20mm)
Faceplate Length: 85.43 (2170mm)

Spring Latch - Yes
Deadbolt Throw: 0.63 inch (16mm)
Bullet Roundbolt throw: 0.787 inch (20mm)
Top Roundbolt @ 28.74 inches ( 730mm)
Bottom Roundbolt @ 29.92 inches (760mm)
Handle PZ: Center of handle to center of Key / Thumbturn 3.62 inch (92mm)
Handed: NO, Springlatch can be reversed by removing screw and reversing latch

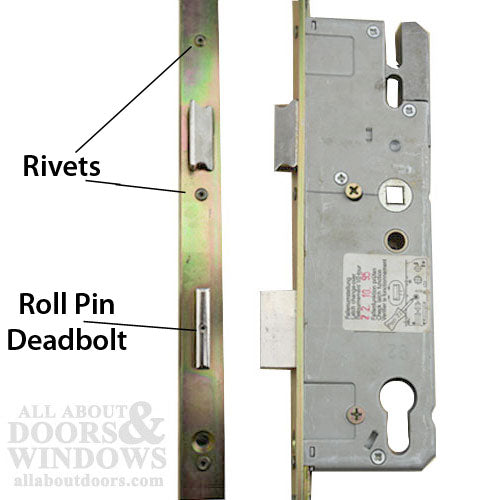

KFV Identifying marks:
Deadbolt has pin in center
Faceplate is connected with Rivets

Lock Operation:
Lift lever to extend 2 Bullets, use key or Thumbturn to throw deadbolt and secure lock

Unlock Operation:
Retract deadbolt with Key or Thumb turn and depress lever to open door.

Note; These are not returnable, please be sure they are what you need.
