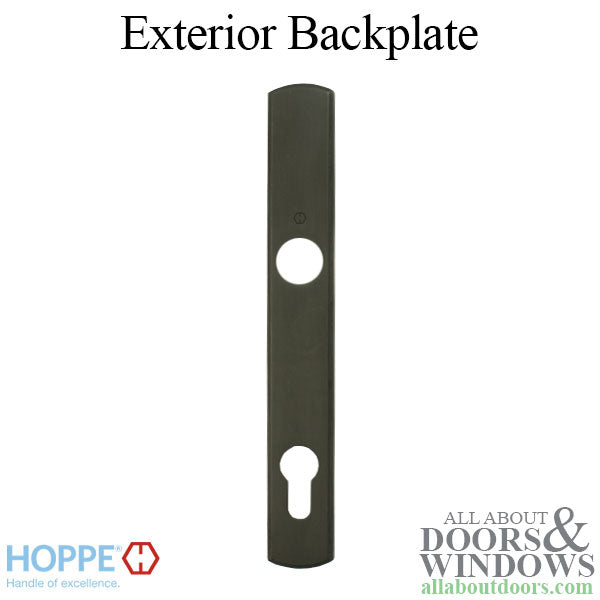

HOPPE Contemporary Exterior Backplate M216N for Active Handlesets

Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

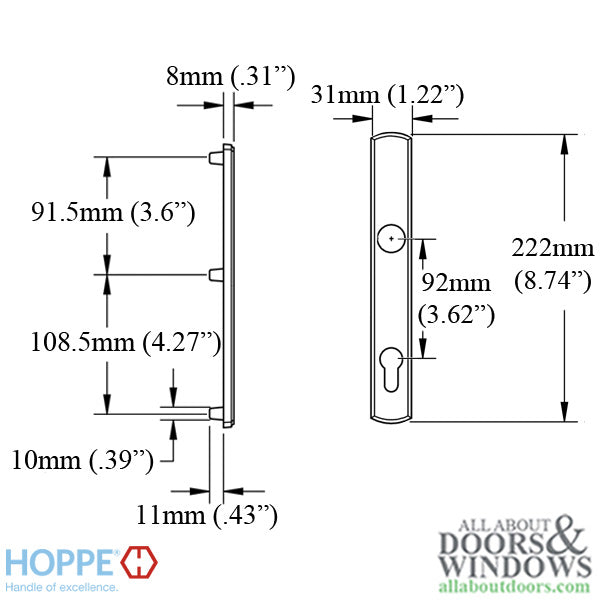

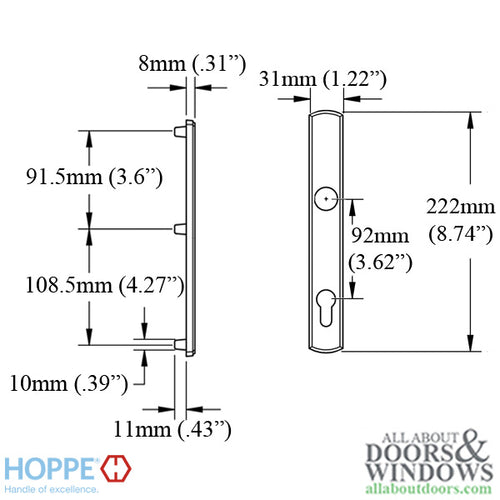

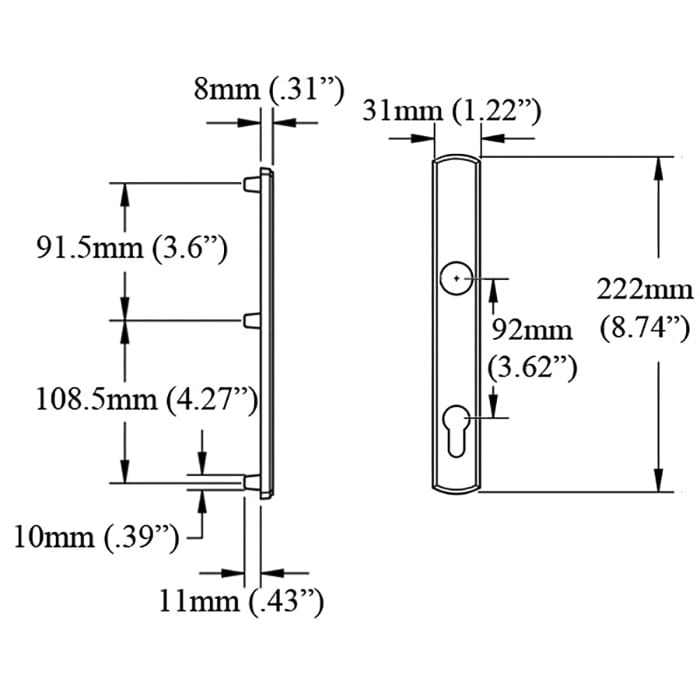

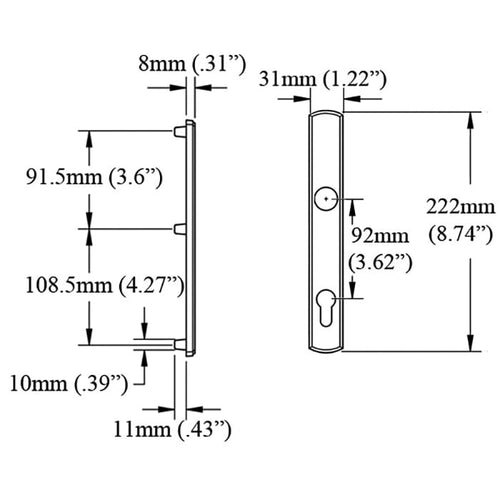

Height: 222mm (8.74 in.)
Width: 31mm (1.22 in.)
Thickness: 8mm (.31 in.)
Center of Top Screw Hole to Center of Middle Screw Hole: 91.5mm (3.6 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 108.5mm (4.27 in.)
Center of Top Screw Hole to Center of Bottom Screw Hole: 200m (7.87 in.)
PZ (Center of Handle to Center of Cylinder): 92mm (3-5/8 in.)
Material: Solid Brass
Color: Oil-Rubbed Brass (F79)

Related Parts:
Contemporary Interior Backplate for Active and Inactive Handlesets in Oil-Rubbed Brass: 8750843
Contemporary Exterior Backplate for Inactive Handlesets in Oil-Rubbed Brass: 8750855
