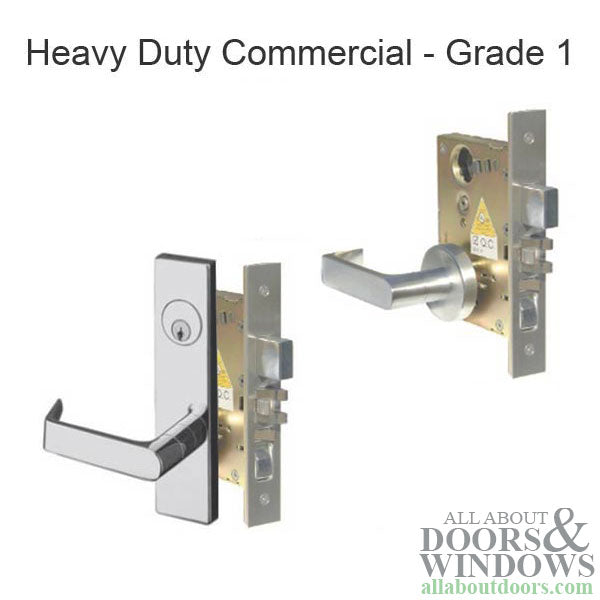

Heavy Duty Mortise lock with Rectangular Escutcheon Plate
The DXML mortise lockset is designed for all heavy duty commercial and industrial applications. This series meets ADA handicap requirements and meets a 3 hour fire listing.
Commonly used in Hospitals, Hotels, Churches and Schools
Specifications DL-DXML
Heavy duty commercial; Grade 1
Door Thickness: 1 3/4”

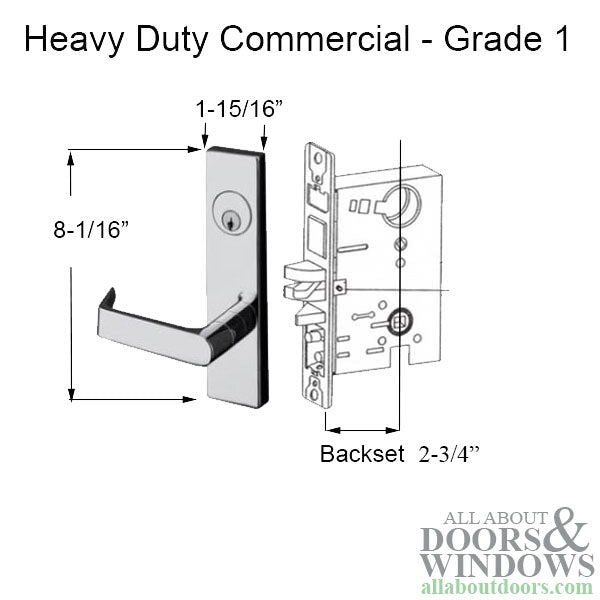

Backset: 2 3/4″
Face plate: 1-1/4" x 8"
Escutcheon plate: 1-15/16" x 8-1/16"
UL Rated #R15846, 3 Hour fire Listed Latch
1inch Throw Bolt
1 1/8" Mortise Cylinder
SC6 Schlage “C” 6 pin keyway
Barrier free levers and returns within 1/2″ from door face
Handed LH or RH, Field Reversible
Dead or spring latch Depending on function
Finish / Color: US26D, Brushed Chrome
Trim Specifications
Round Rose Leverset; solid brass
Rectangular escutcheon Handleset; solid brass
The DXML mortise lockset is designed for all heavy duty commercial and industrial applications. This series meets ADA handicap requirements and meets a 3 hour fire listing.
Commonly used in Hospitals, Hotels, Churches and Schools
Specifications DL-DXML
Heavy duty commercial; Grade 1
Door Thickness: 1 3/4”
Backset: 2 3/4″
Face plate: 1-1/4" x 8"
Escutcheon plate: 1-15/16" x 8-1/16"
UL Rated #R15846, 3 Hour fire Listed Latch
1inch Throw Bolt
1 1/8" Mortise Cylinder
SC6 Schlage “C” 6 pin keyway
Barrier free levers and returns within 1/2″ from door face
Handed LH or RH, Field Reversible
Dead or spring latch Depending on function
Finish / Color: US26D, Brushed Chrome
Trim Specifications
Round Rose Leverset; solid brass
Rectangular escutcheon Handleset; solid brass
