G-U / Ferco SECURY 3-Point Automatic latching with 1 deadbolt and 2 Latchbolts Used with Lever type handles.

Simply Close the Door!

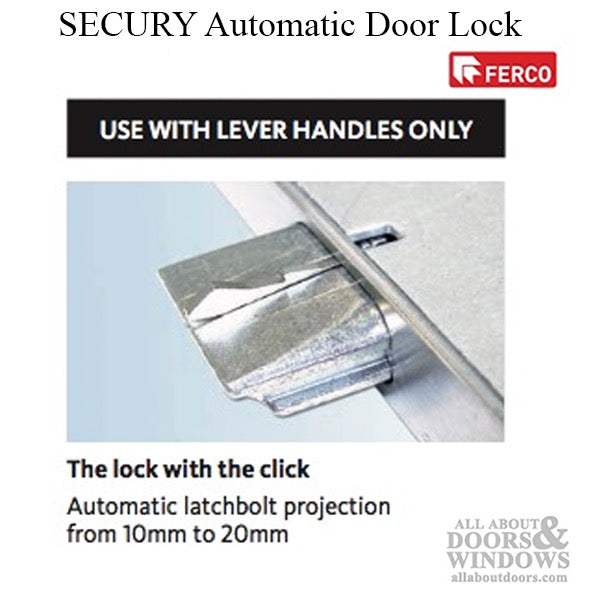

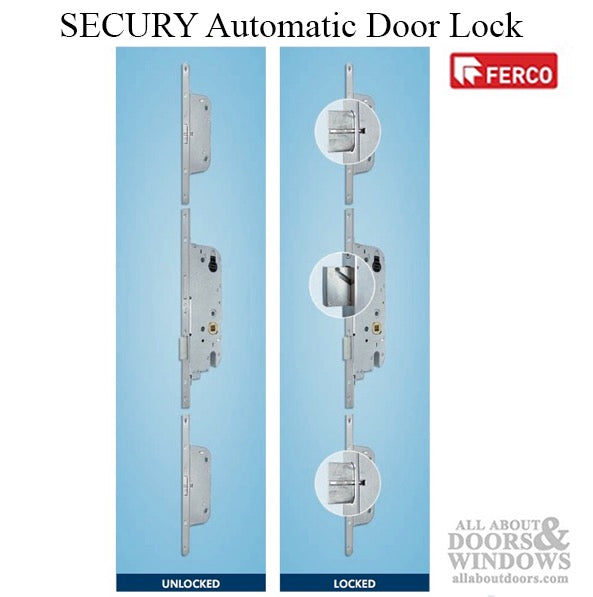

As soon as the door pulled shut, the Automatic latchbolts instantly throw 20mm and are secured to prevent them being forced back. By turning the key or the knob, it will engage the deadbolt and lock the top and bottom latchbolts to become a 3 dead bolt locking system.

Specifications:

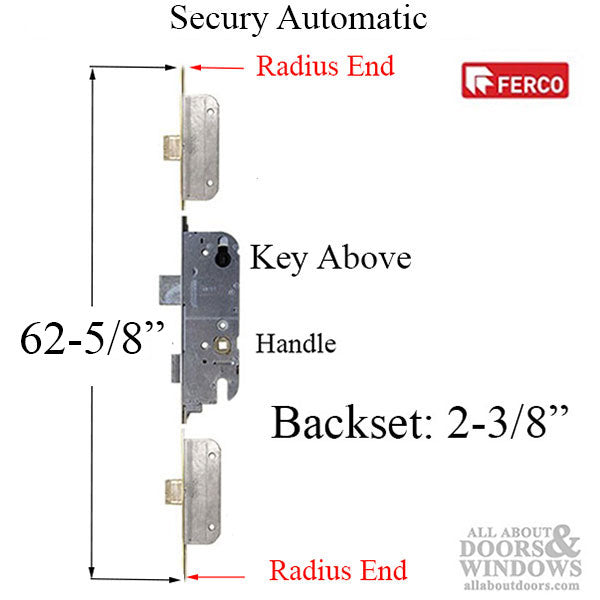

Backset: 2-3/8 inch (60mm)
Cylinder Position: Key Above Lever
Cylinder Type: American (uses flat tail piece)
Faceplate Width: 5/8 inch (16mm)
Extension End: Radius, Rounded end

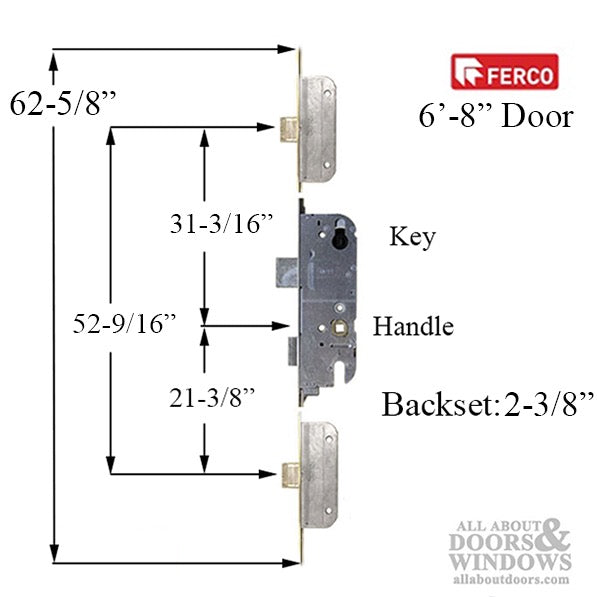

Overall Length 6-8 Door: 62-5/8 inch (1591mm) 62.64 inch
Upper Latchbolt: 31-3/16 inch ( 792mm) 31.18 inch
Lower Latchbolt: 21-3/8 inch (543mm) 21.38 inch

Handle Height: N/A, Adjustable
Deadbolt Throw: 1 inch (24.9mm) 0.984 inch
Latchbolt Length: 3/4 inch (20mm) 0.787 inch
Handle to Cylinder PZ: 3-5/8 inch (92mm) 3.62 inch
Spindle Hub: 5/16 inch (8mm) 0.315 inch Square
Material: Stainless Steel

Related Hardware:
Uses Levers only trim, Gripset will not work with this Multipoint
