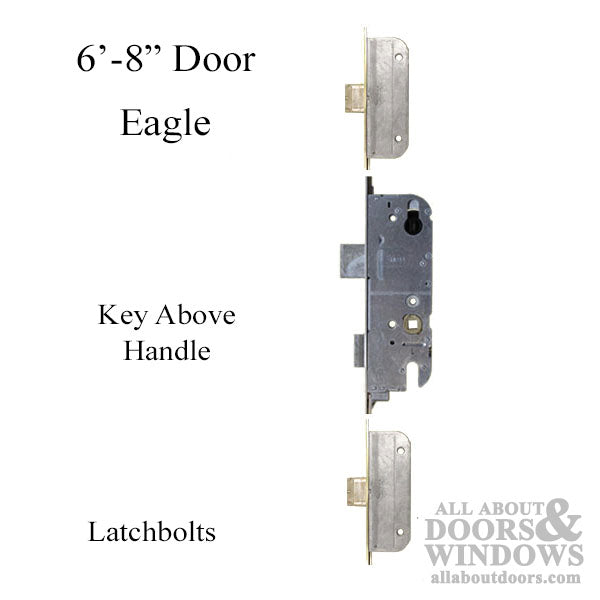

G-U active New Breed, Key above lever, 3-point lock with latch bolts on top and bottom
Eagle multipoint lock has an automatic function--locks automatically engage when door is closed.
Lock Body Style: New Breed - Key Above Handle
Backset: 1-3/4 inch (45 mm)
Faceplate Width: 5/8 inch (16 mm)

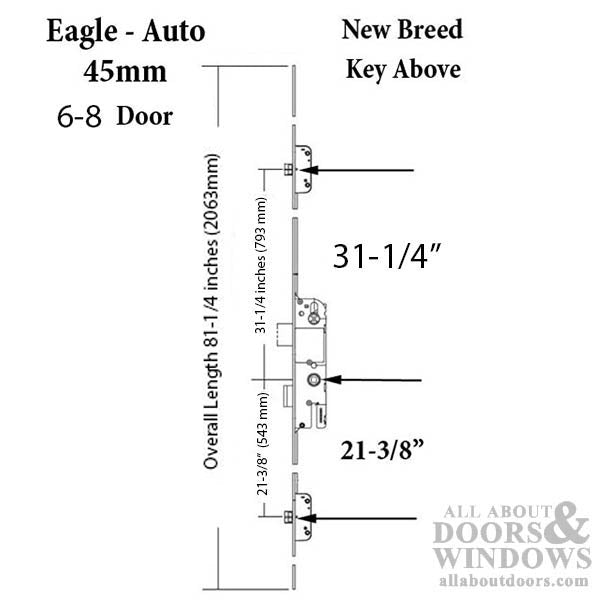

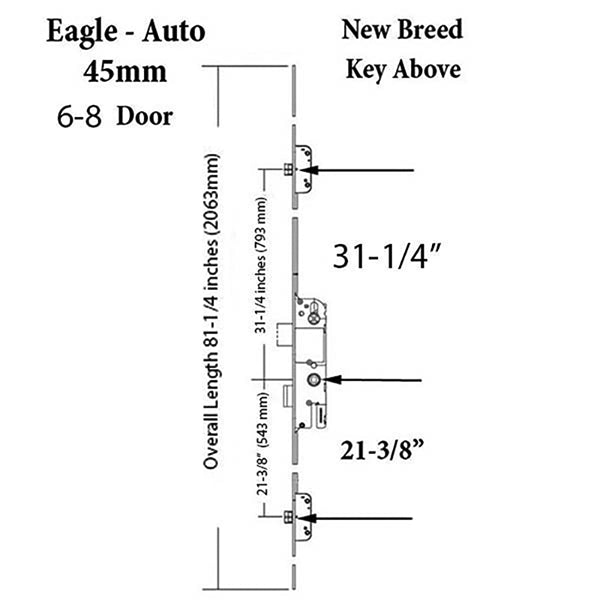

Faceplate Length: Overall Length 81-1/4 inches (2063mm)
Croppable: Yes, Bottom Can be cut down 9-1/2 inch; Top 10-1/2 inch
Standard G-U Handle Height: 35 inches (889 mm)
Handle PZ: 3-5/8 inch (92 mm) from center of thumbturn to center of handle
Handle to Top Latch bolt 31-1/4 inches (793mmm) 31.22 inches
Handle to bottom Latch bolt 21-3/8 inches (543mm) 21.378 inches
Key Position: Above Levers
Material: Stainless Steel
To Change Handing
* Center Latch: Remove 3 T-25 star screws from faceplate and flip latch

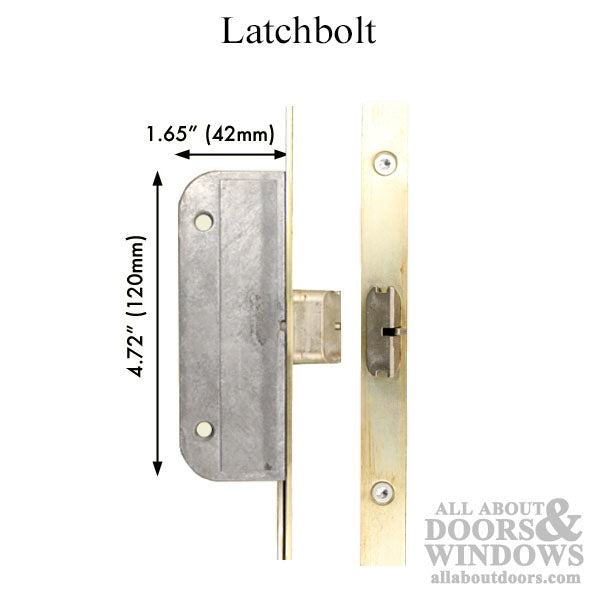

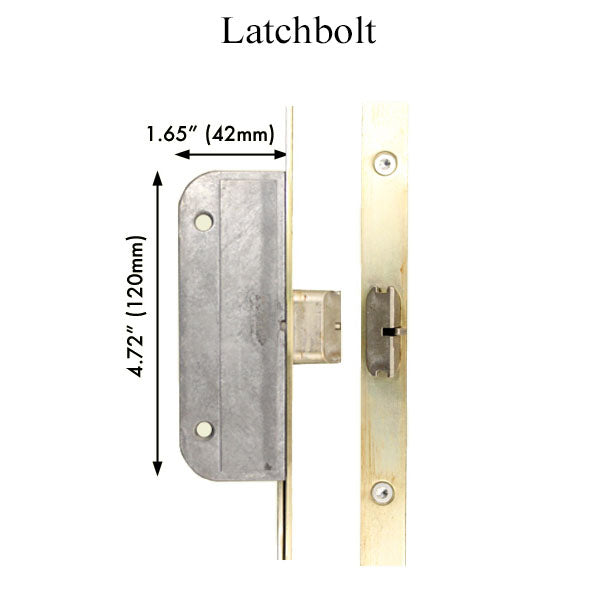

* Top & Bottom Latch: Insert 3/16 Hex screw driver into the hole on backside of latch.
unscrew, turning Counterclockwise - Remove Latch, spin around and re-attach.
Test lock before installing
Additional Information:
How to Re-Hand a G-U/Ferco Multipoint Lock
How to Install G-U/Ferco Multipoint Lock
