Flush Bolt Applications

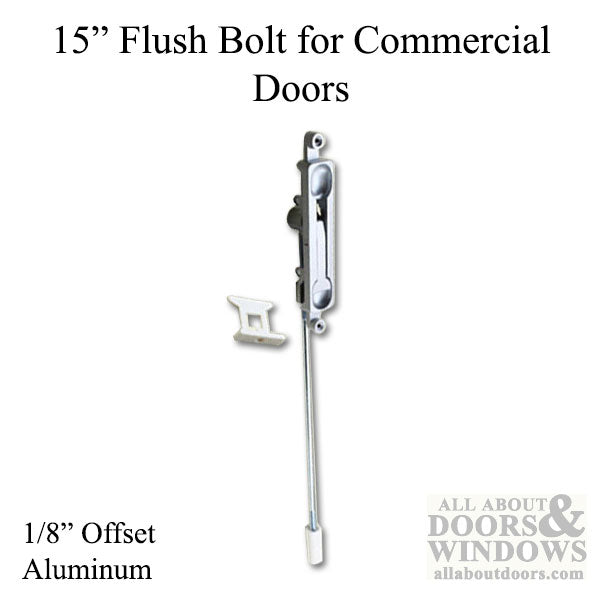

Mortise flush bolt for use on all commercial store front and architectural aluminum and glass narrow stile door. Made for easy installation, replaces most brands of store front flush bolt.
Specifications

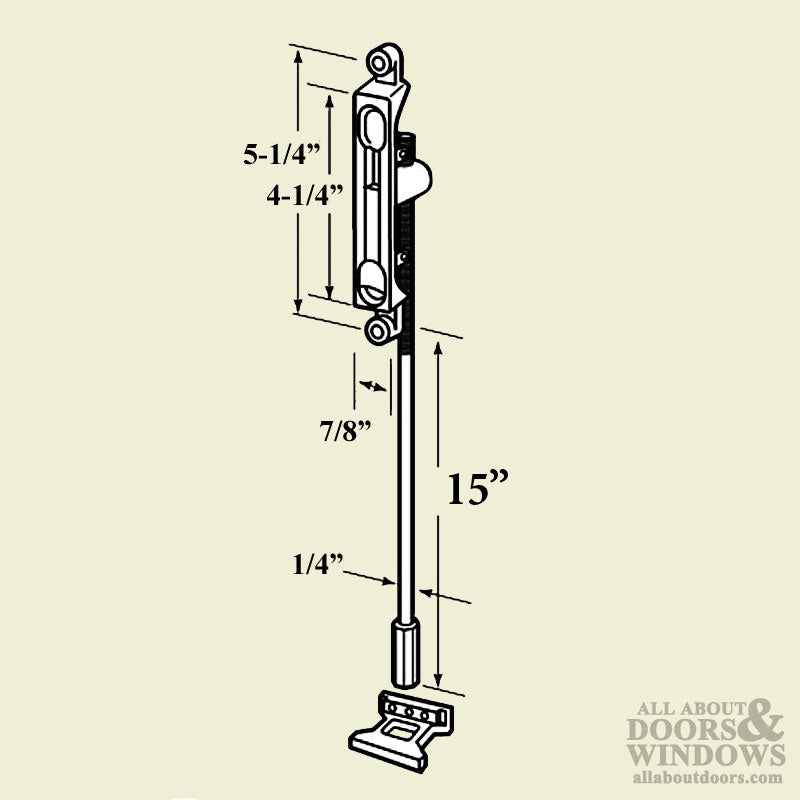

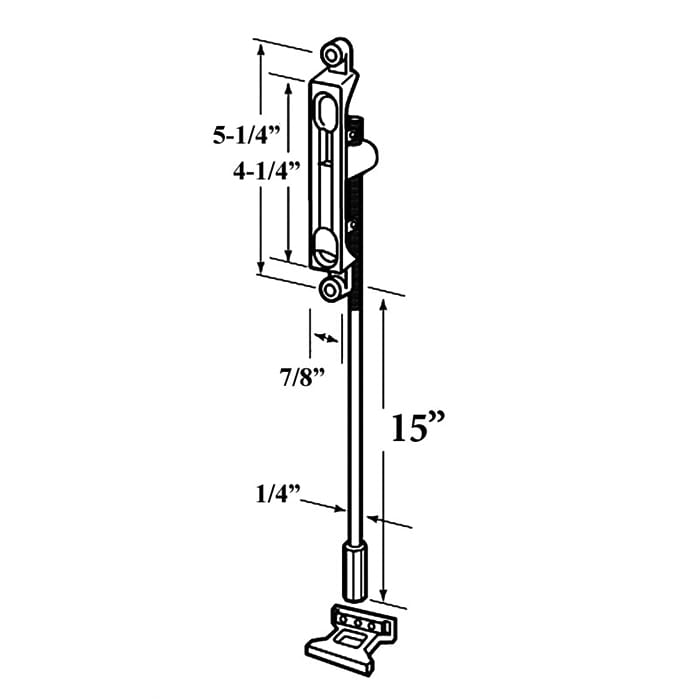

* Rod 15 inches with 1/8 inch offset - Standard
* Spring loaded lever action
* Rod extension- 7/8 inch throw
* Backset 3/4 inch - three models available specify rod length and offset, 1/8 inch and 1/4 inch
* 5/8 inch adjustment on rod length
* Face plate dimensions 15/16 inch x 4-1/4 inches with 5/32 inch radius corner

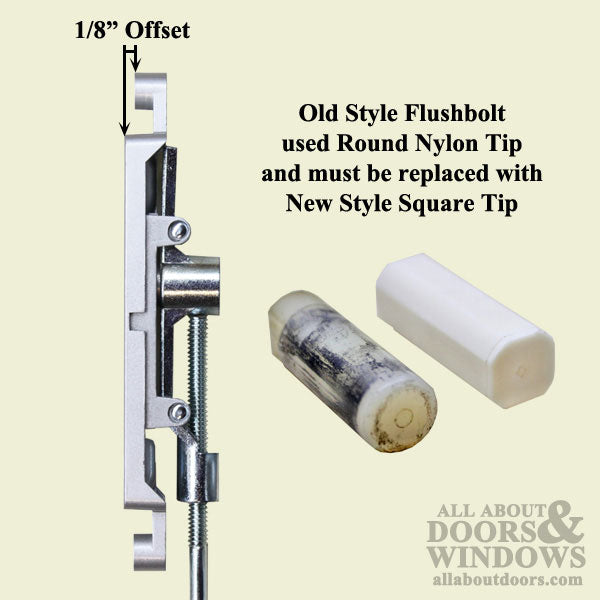

* Square 1/2 inch nylon tip with beveled corners to prevent binding

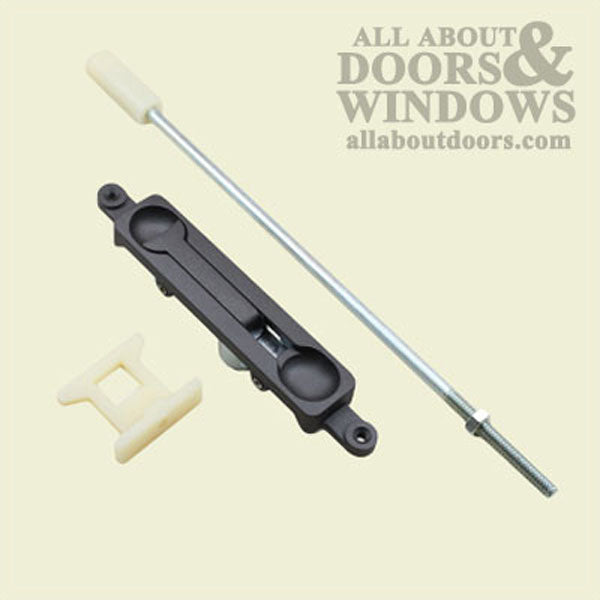

* Supplied with nylon keeper and fasteners
* Finish: AL-Aluminum, DU-Duronotic Bronze
Mortise flush bolt for use on all commercial store front and architectural aluminum and glass narrow stile door. Made for easy installation, replaces most brands of store front flush bolt.
Specifications
* Rod 15 inches with 1/8 inch offset - Standard
* Spring loaded lever action
* Rod extension- 7/8 inch throw
* Backset 3/4 inch - three models available specify rod length and offset, 1/8 inch and 1/4 inch
* 5/8 inch adjustment on rod length
* Face plate dimensions 15/16 inch x 4-1/4 inches with 5/32 inch radius corner
* Square 1/2 inch nylon tip with beveled corners to prevent binding
* Supplied with nylon keeper and fasteners
* Finish: AL-Aluminum, DU-Duronotic Bronze
