Discontinued No replacement

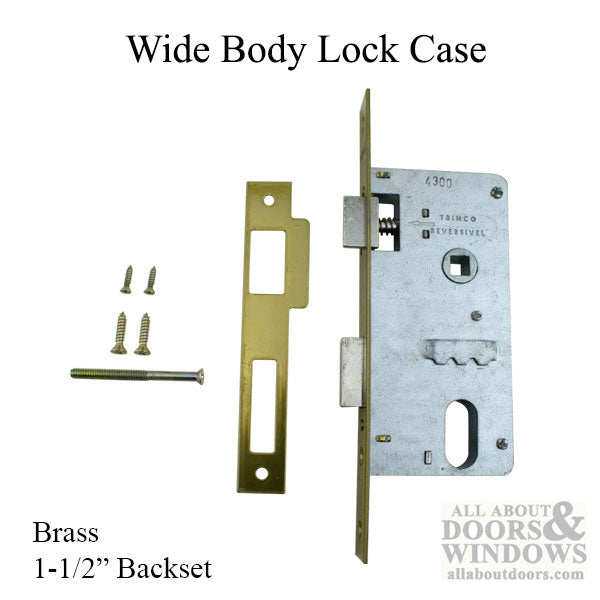

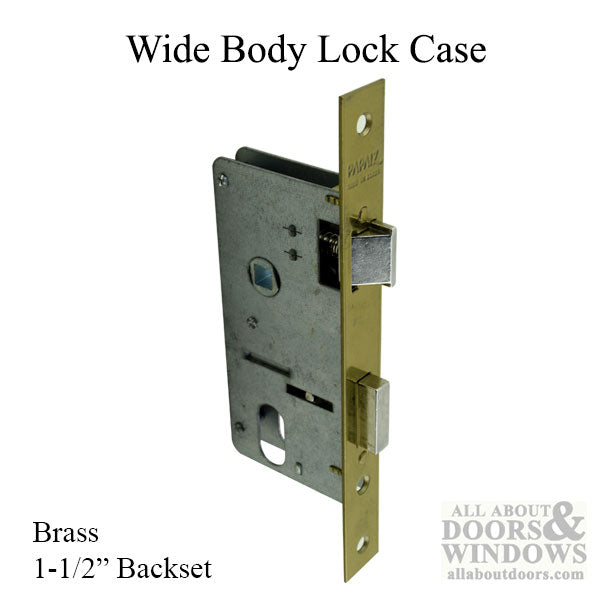

Papaiz wide body mortise lock.

Used with ML-37 trim set.
This mortise lock must be used with your existing cylinder lock and handle set trim.
There are no replacements currently available.

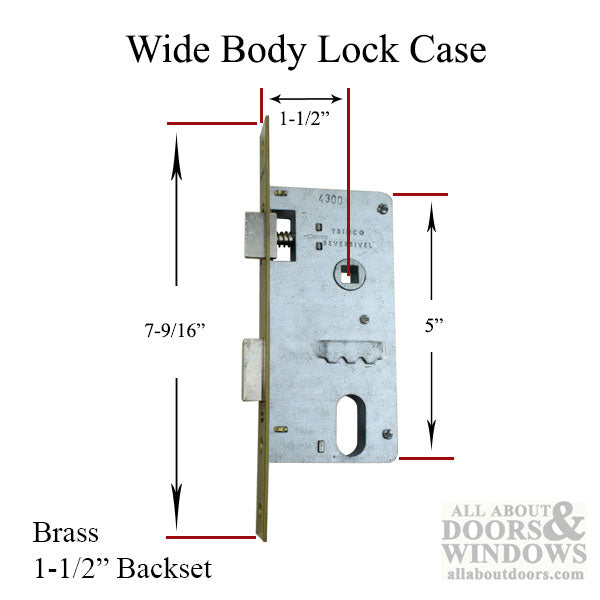

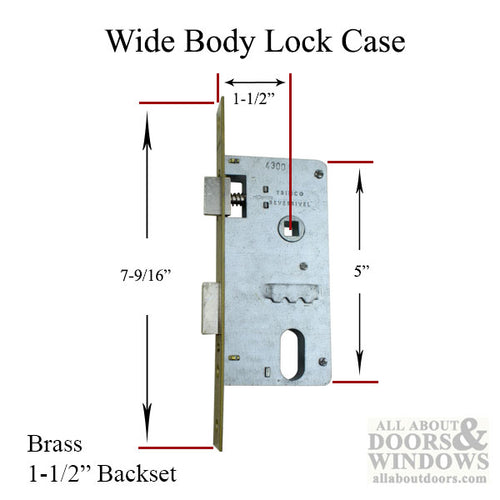

Face Plate:  7/8 x 7-5/8 inches
Mortise Backset:  1-1/2 inches, from edge of face plate to center of handle and keylock.
PZ Measurement: 2-9/16 inches from cetner of handle to center of cylinder (standard Papaiz is 2-13/16 inches)
Color:  Brass Only

Notes:  the backset of the 340 mortise lock is wider thatn the other mortise locks like this.  The handle to cylinder hole spacing is not the same as other Papaiz Slimline locks

For help with installation of Papaiz locks, please read Papaiz Lock Installation Instructions
See article on Changing Mortise Locks
