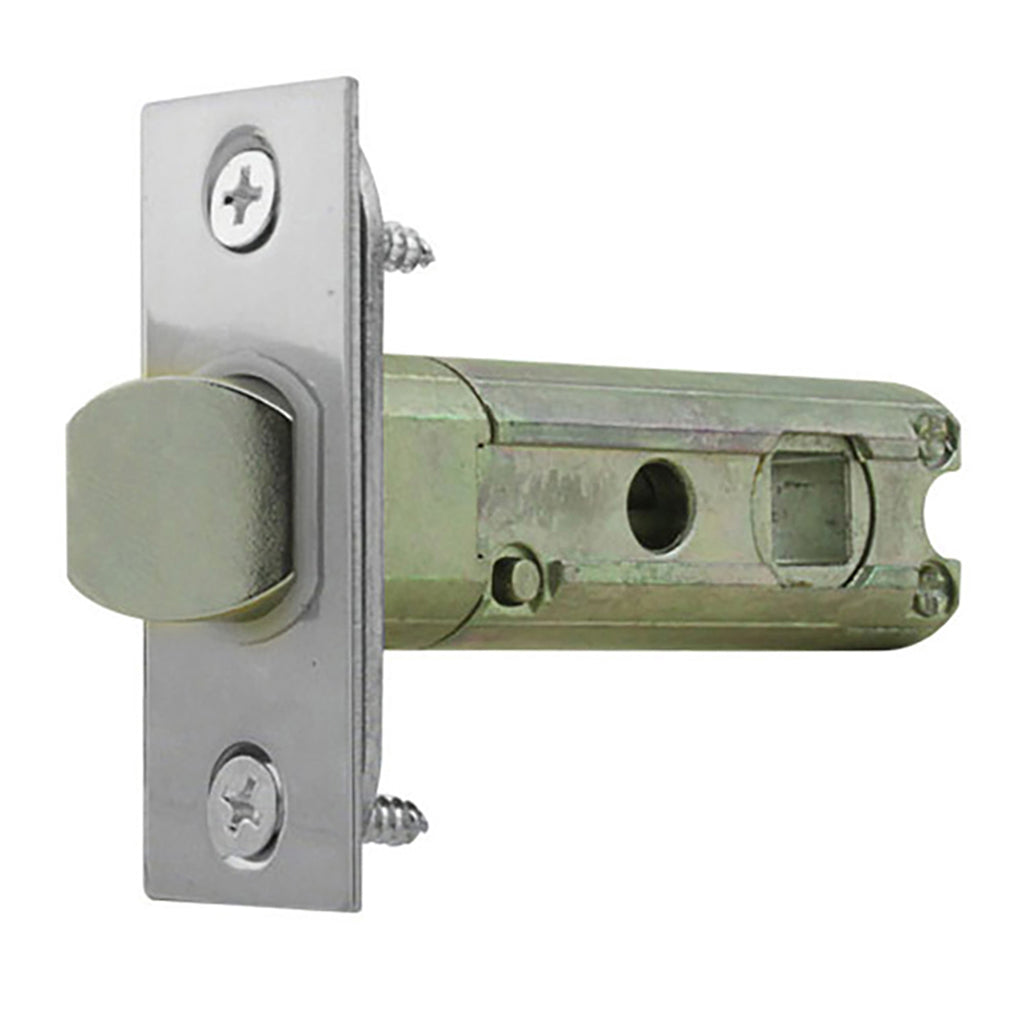

Discontinued - 2 inch Backset Spring Latch, Square Face - Brushed Stainless Steel

Part Number: 48145231
Discontinued - New style coming September 2018
The New style is here - seeÊPart#: 48145201

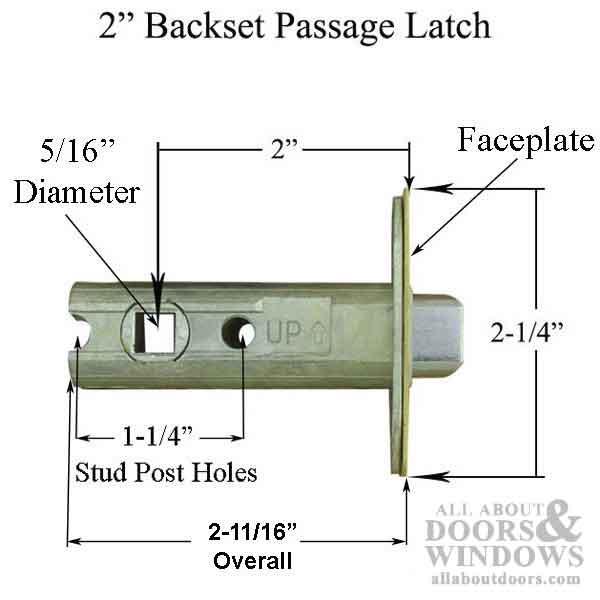

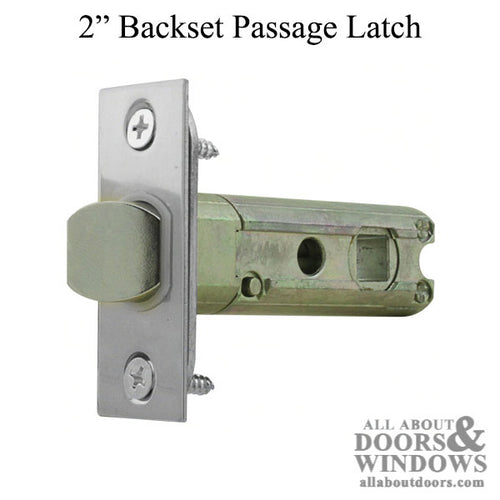

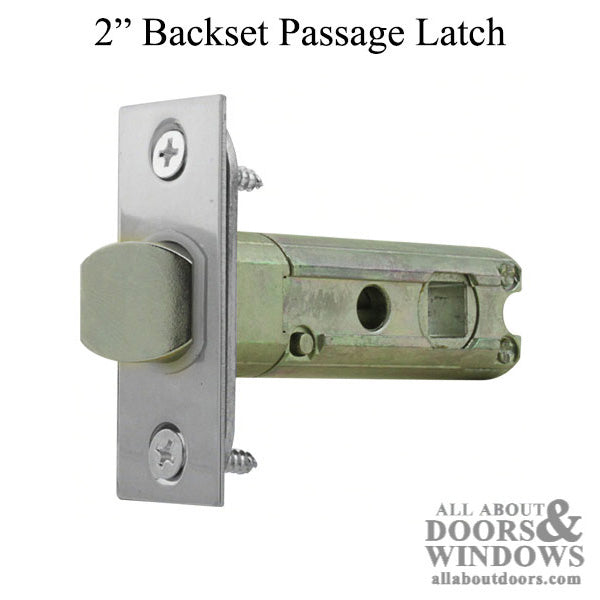

2" Backset Latch, standard Passage - Brushed Stainless Steel

Application: Passage, Hall and closet
Backset: 2" (50mm)
Screw posts spread at 1-1/4" (31,75mm)
Faceplate WIdth: 1" (25.4mm)
Faceplate Length: 2-1/4" (57.15mm)
Spindle Diameter: 5/16" (8mm)
Overall Length: 2-5/8 inch
Horizontal Screw Post Holes: 1-1/4" (31.75mm)
Handed: yes, install with arrow up, Remove faceplate to change direction of latch.

Related Parts:

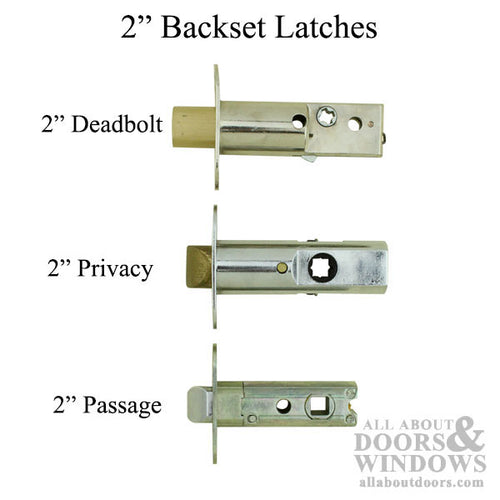

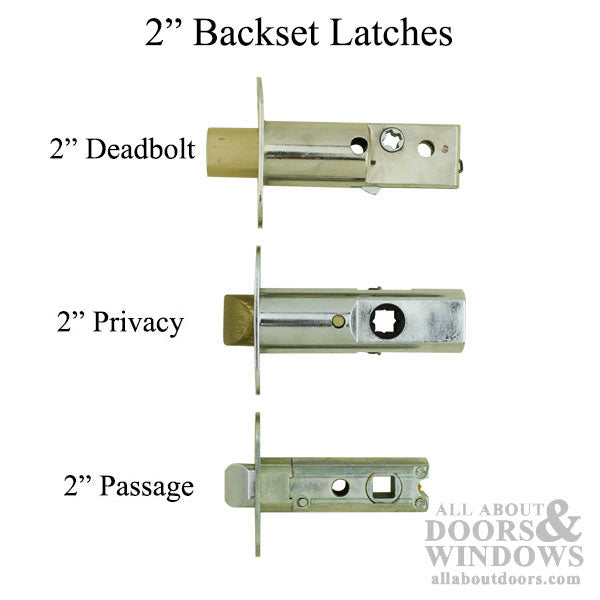

40048 - 2" Backset Deadbolt Latch - Brass

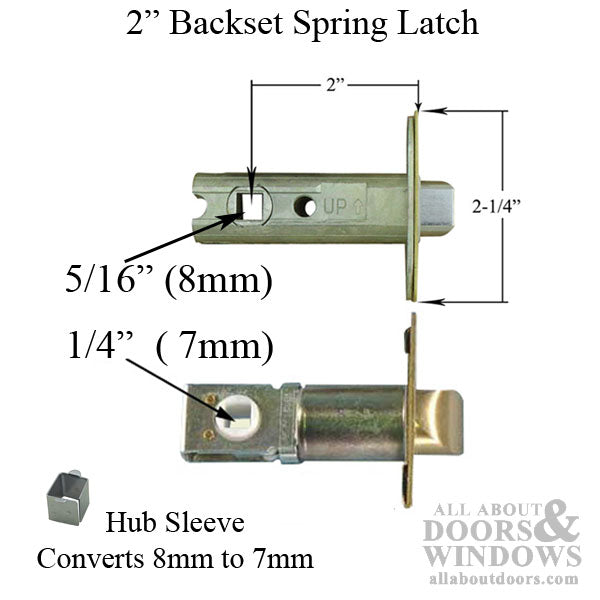

481499001 - 7mm Hub Sleeve (convert 8mm to 7mm)
