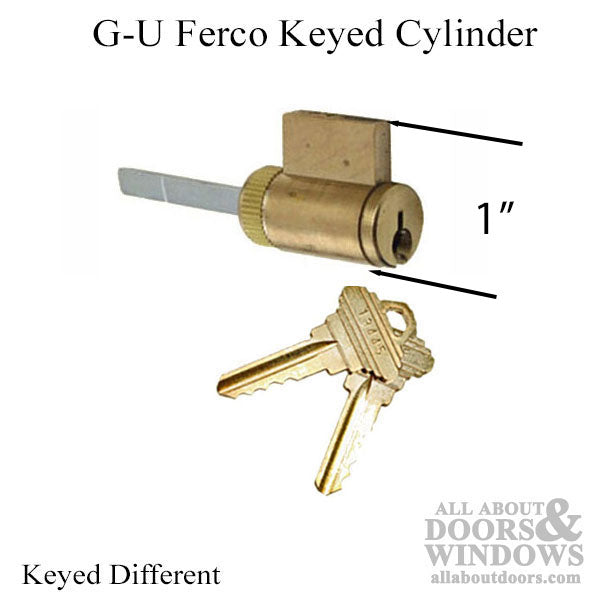

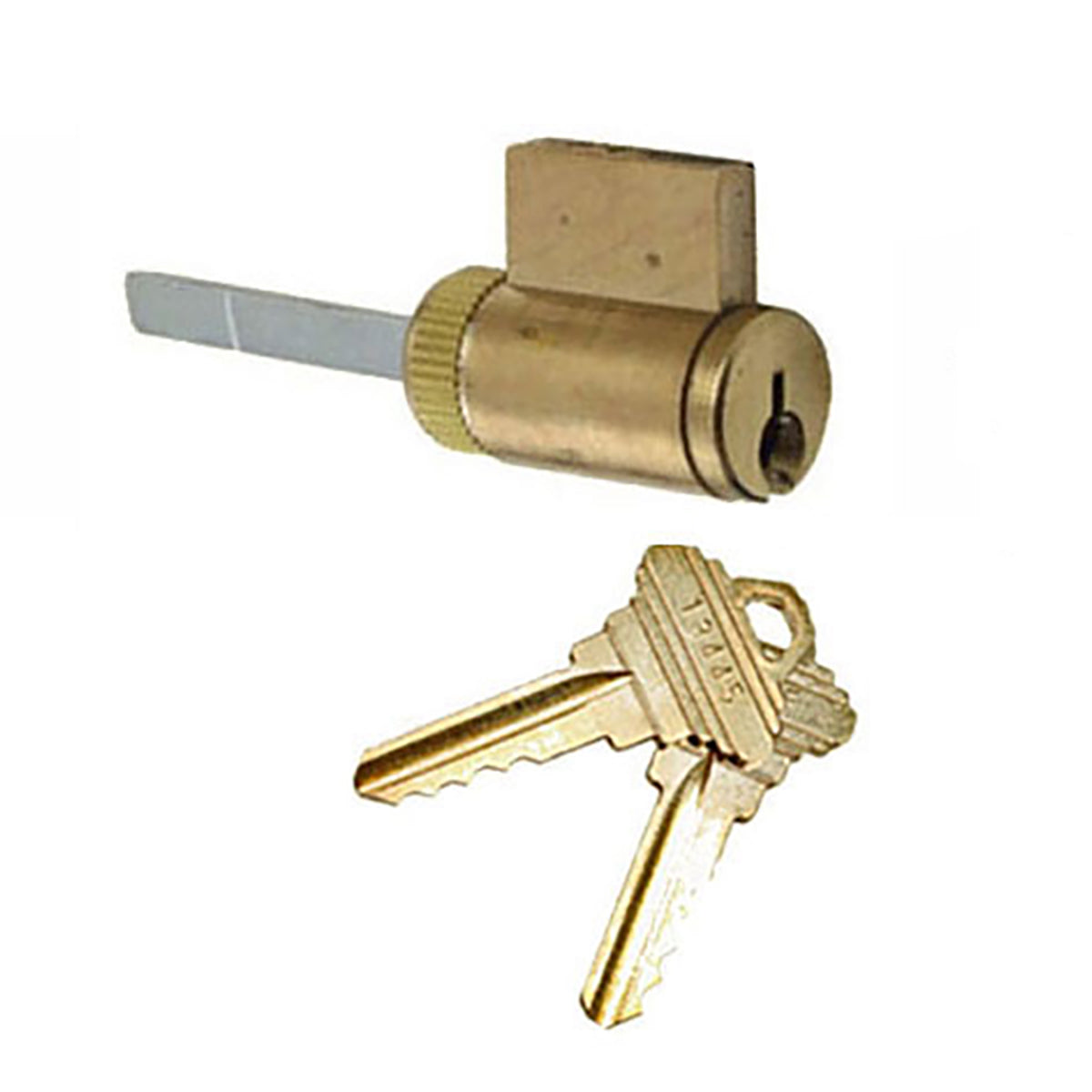

Replacement cylinder for GU/Ferco multipoint lock door handles.

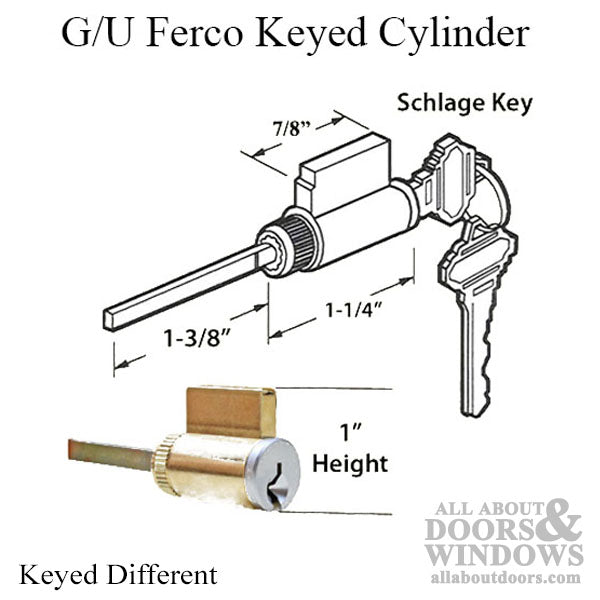

Cylinder Type: American with flat tailpiece
Door Thickness: 1-3/4 inch
Tail Piece Length: 1-3/8 inches flat
Keyway: Schlage 5 pin SC1
This cylinder is also available in eight different keyways for those with specific keyway needs.
Rekeyable: Yes
Number of Keys: 2 keys with cylinder
Face Plate: Satin Brass

The Cylinder body is constructed of brass and has a brushed chrome finish on the face.

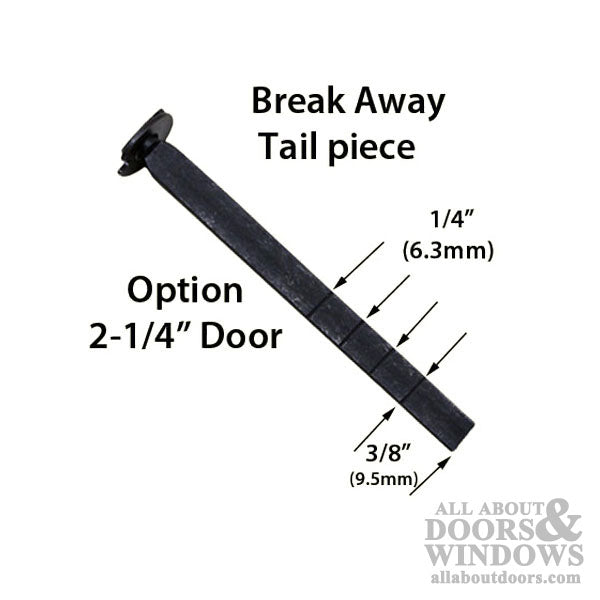

A Tailpiece conversion kit is also available for those doors greater than 1-3/4 inch to reach the thumb turn on the opposite side.

If your doors are thicker than 1-3/4 inch, you would add the tailpiece conversion kit 9-C0975-90-0-6

Priced and sold each.
