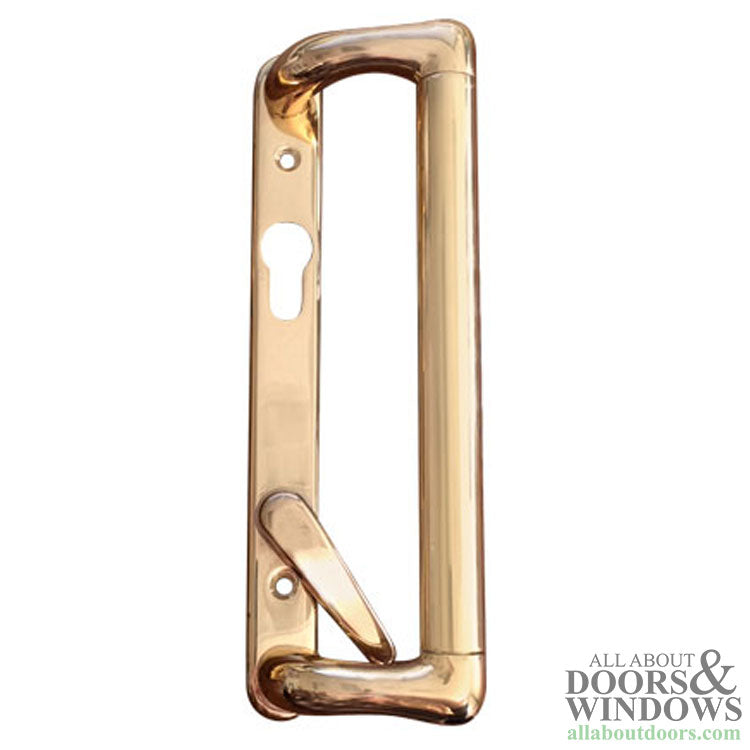

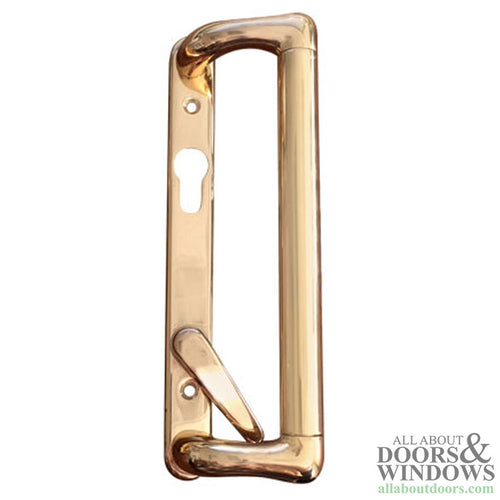

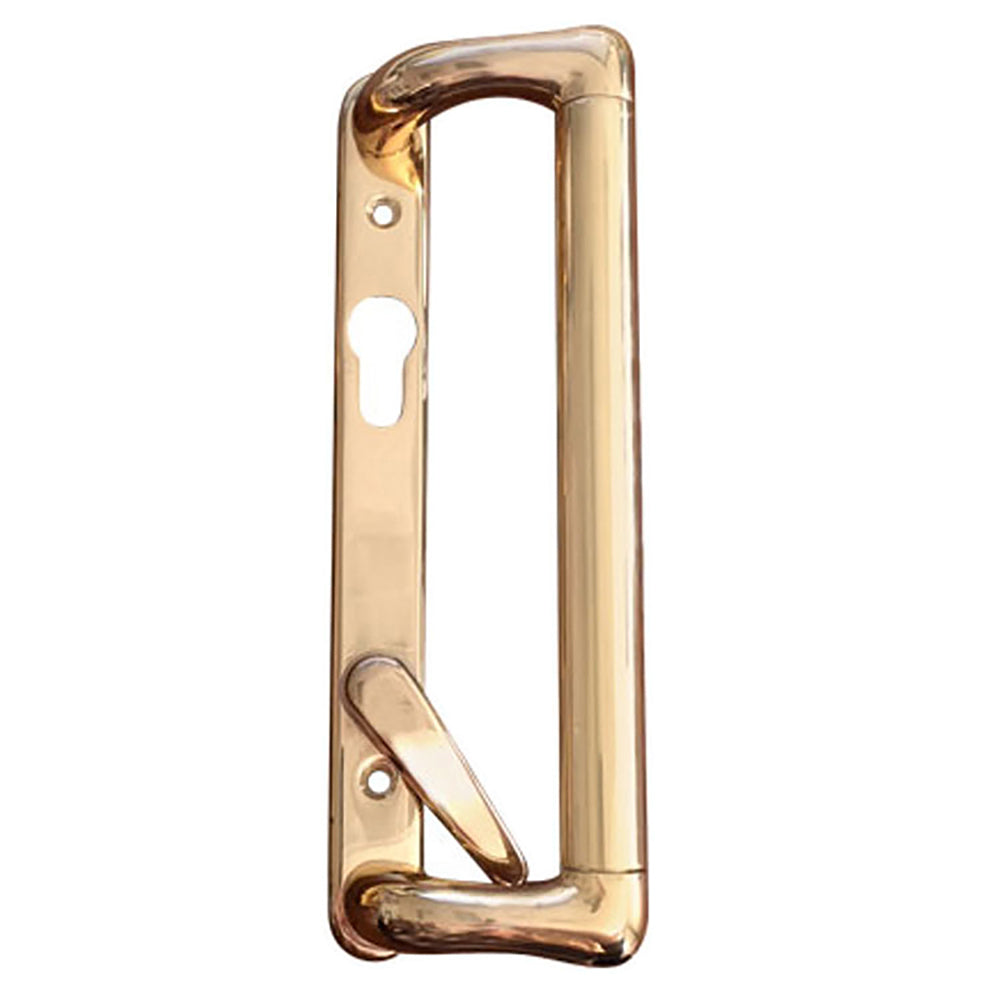

Discontinued Champion Old Style Sliding Patio Door Handle set - Polished Brass
Used on Single (2 panel) and double (4 panel) doors.
Interior only.

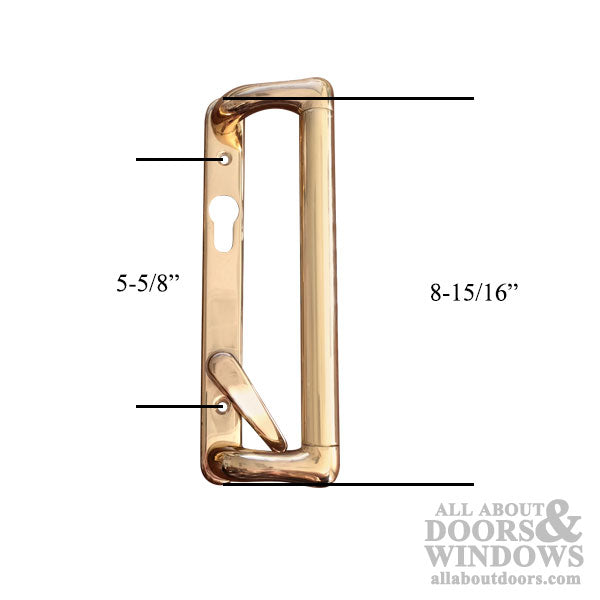

Escutcheon Plate: 1 inch x 8-13/16
Handle to Escutcheon Plate mounting screws: 7-11/16
Thumbturn: Yes, on both sides
Screw Hole Centers: 5-5/8 inch - Both Escutcheon plates have screw holes

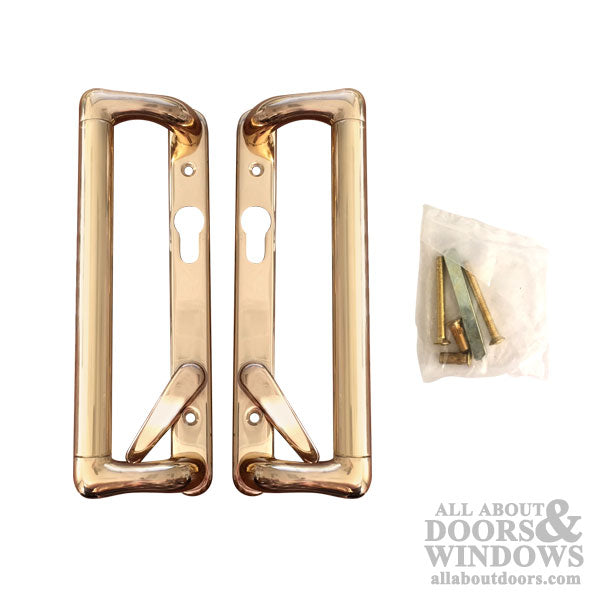

Handle Plates have holes on both sides and will use Thru-bolts, included
Escutcheon Plate Thickness: 3/8 inch (9.5mm)
Screw Length: 1-3/4 inch (45mm)
Spindle: 1/4 x 2-5/16 (7mm x 58.7mm )
Handed: Yes, Handles can be reversed for Left or Right hand doors
Made in Portugal
Euro Profile Cylinder: Not Included, Purchased separately. Cylinder length depends on door thickness.
NOTE:

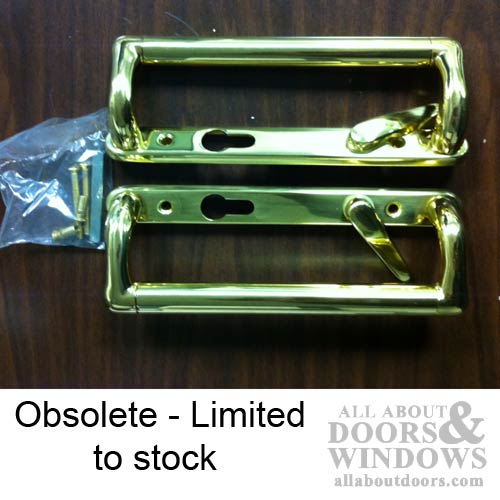

This is New, Old Stock and has been Discontinued, Limited to existing inventory.
Their might be slight blemishes, they have been sitting around for the last 15 years.
