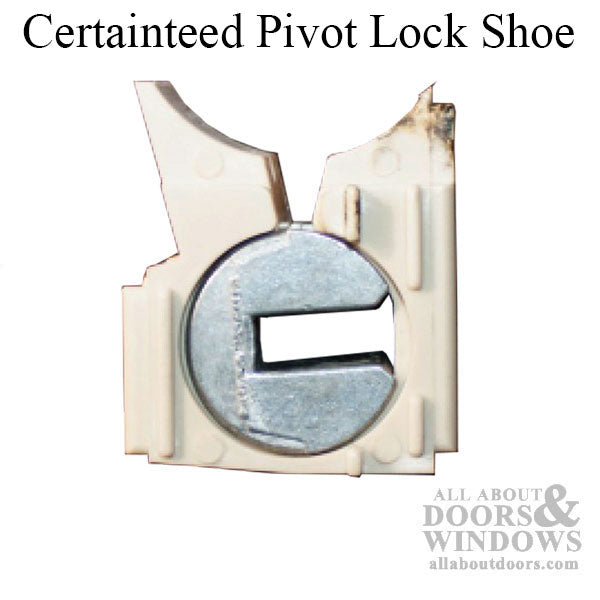

Certainteed plastic pivot lock shoe used with coil balance spring and cover.

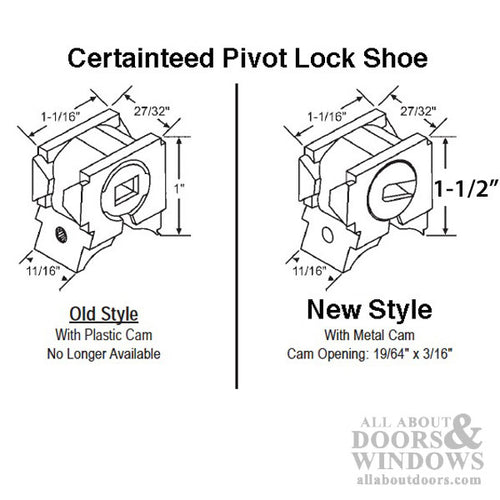

Certainteed had 4 generations of this shoe, all are interchangeable.

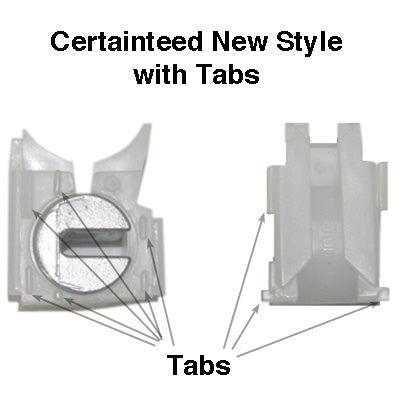

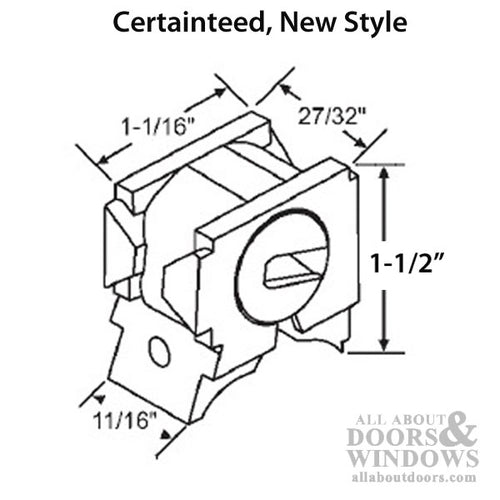

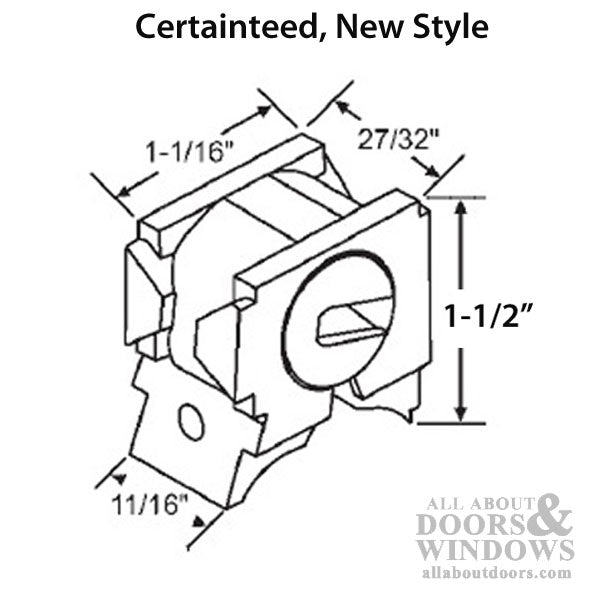

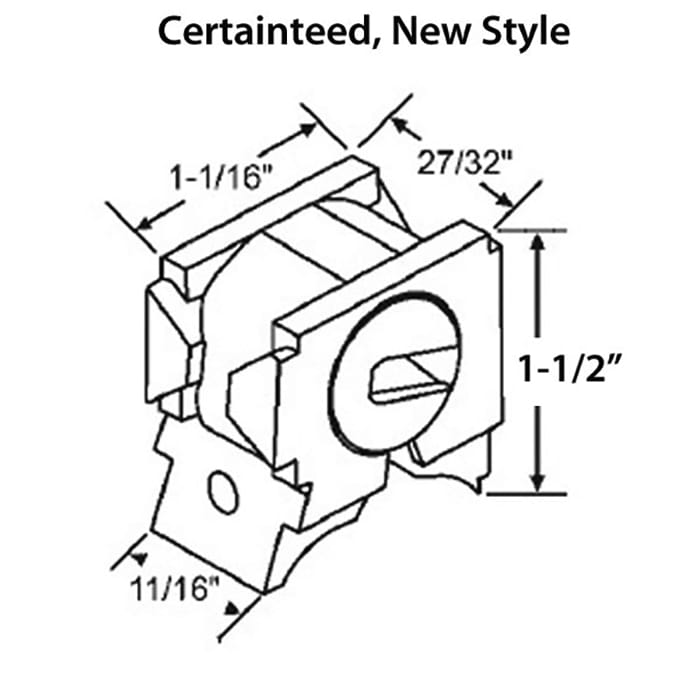

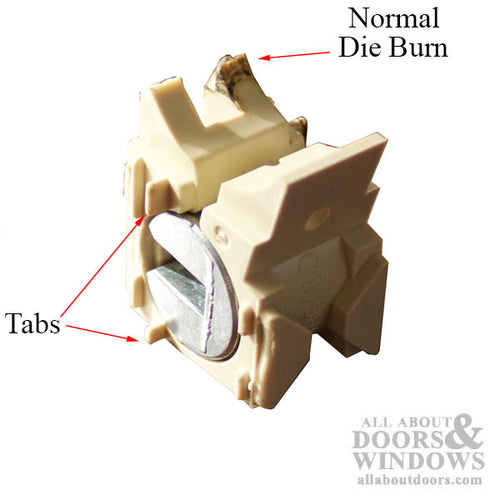

The new style has a metal cam and protruding tabs on both sides of pivot block.
New style may have a larger hole than previous shoe with plastic cam.
All Certainteed Window parts sold individually or as pairs
Coil spring is attached with #8 x 3/8 Phillips pan head screw - Not included
Please review other images - Click on image to enlarge.
Priced and sold each.
Removing & Installation of Pivot Lock shoe:
The pivot lock shoe fits tight in the side jamb, a slight twist from back to front on one side will generally get the shoe out. Reverse the process when installing.

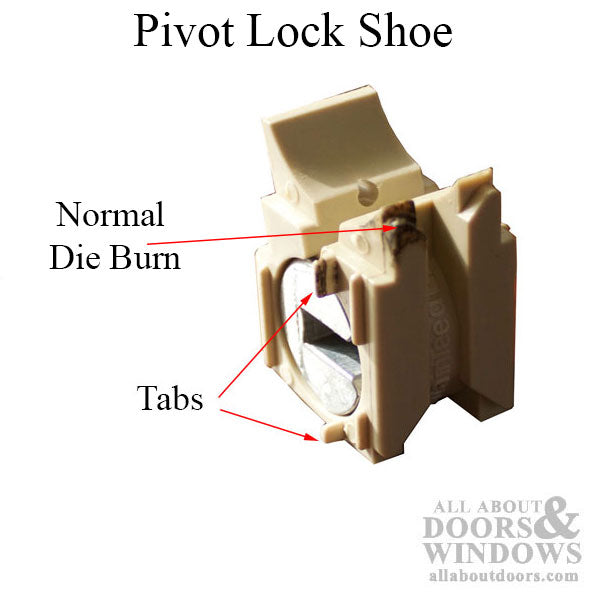

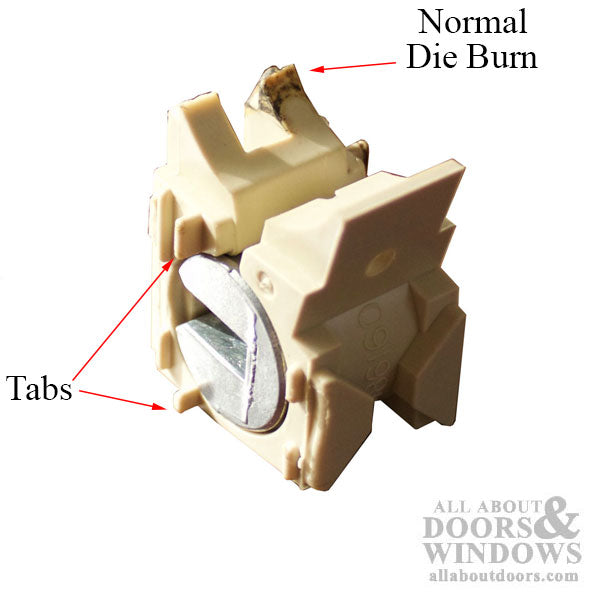

If the Shoe slides hard in the channel, remove the 4 protruding tabs with toe nail clippers, then reinstall.
